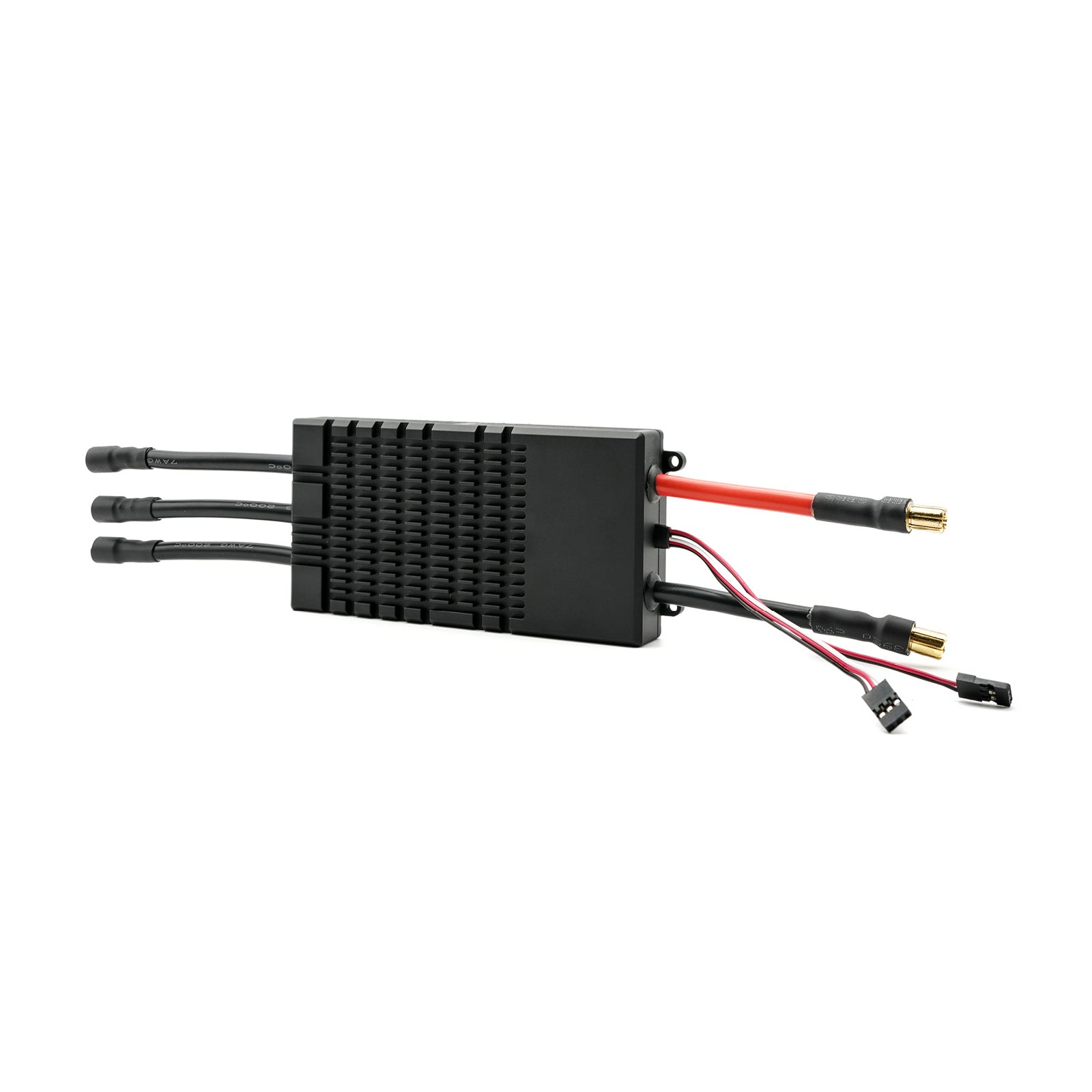

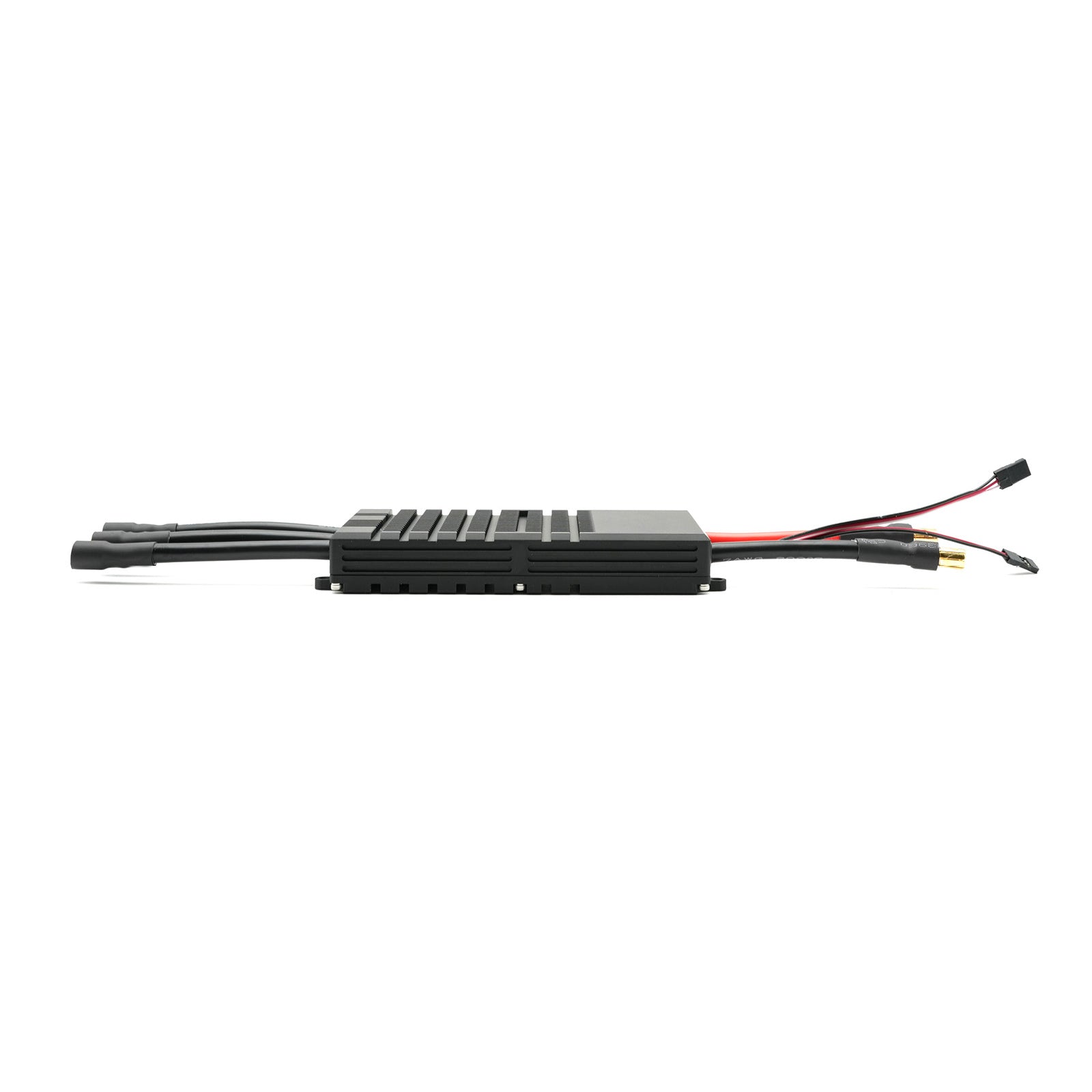

Furious Motor 24S 150A High Compatibility Motor Controller for Multi Rotor Drone
24S 300A is an ESC of precision and reliability in motor control. Employing advanced algorithms, it ensures precise control, enjoy the convenience of throttle calibration support, while built-in safeguards. Compatible with a wide range of BLDC motors for heavy lift drones.
24S 300A ESC featuring industry-leading algorithm, providing smooth, precise and responsive control over motors.

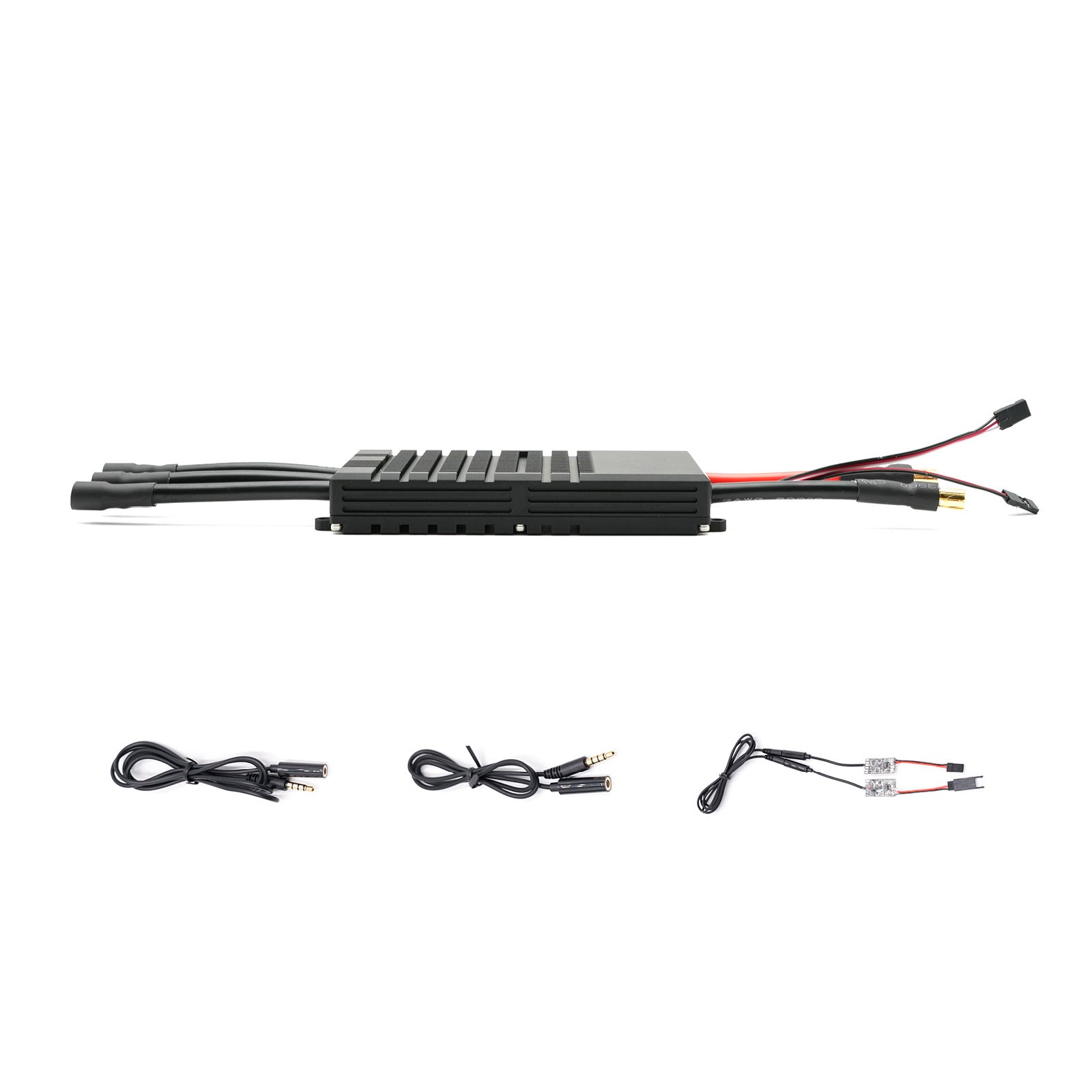

24S 300A ESC comes with an extension cord designed for multirotor drone to control wirelessly and flexibly.
Multiple protections, set it and forget it
Starting protection
When motor fails to start after increasing the accelerator for 10 seconds, ESC will automatically
shut down. After the accelerator is reset to zero and properly work again, ESC will resume working.
Current and voltage protection
ESC will automatically shut down as long as it running with current or voltage fall out of safe working range, and will resume working after throttle returns to 0.
Temperature protection
ESC alarms when temperature reaches 115 degrees, turns off when temperature reaches140 degrees, and resumes working when throttle returns to 0.
Throttle-loss protection
ESC automatically shut down when no throttle signal is detected for 0.3 second, and resume working after throttle signal restores.
When motor fails to start after increasing the accelerator for 10 seconds, ESC will automatically
shut down. After the accelerator is reset to zero and properly work again, ESC will resume working.
ESC will automatically shut down as long as it running with current or voltage fall out of safe working range, and will resume working after throttle returns to 0.
ESC alarms when temperature reaches 115 degrees, turns off when temperature reaches140 degrees, and resumes working when throttle returns to 0.
ESC automatically shut down when no throttle signal is detected for 0.3 second, and resume working after throttle signal restores.
Compatible motors
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
148mm x 66.6mm x 47mm
12S - 24S
240A
300A
50Hz - 400Hz
900us - 2000us
Optional
BLDC
15°
810g
-20°C ~ 65°C
