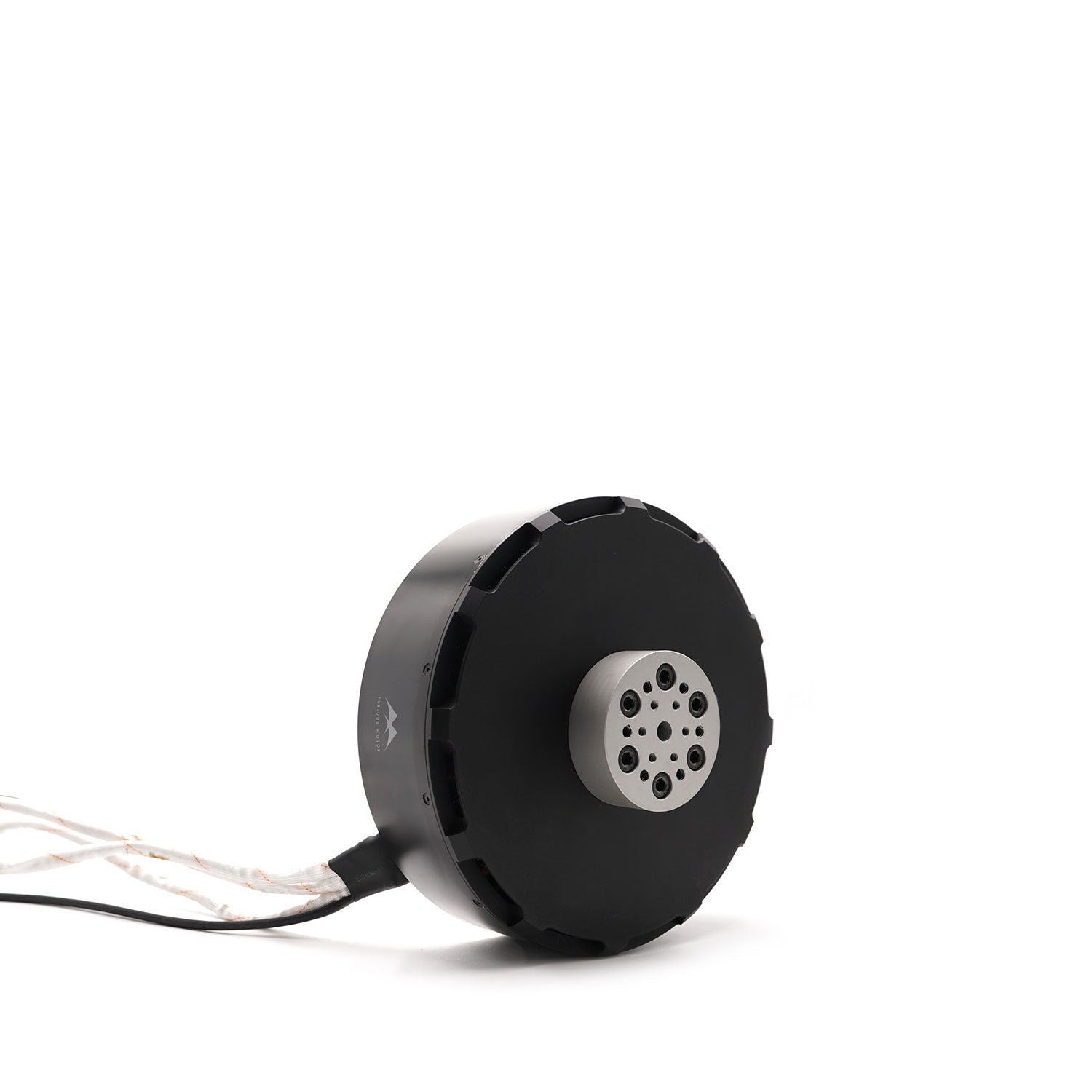

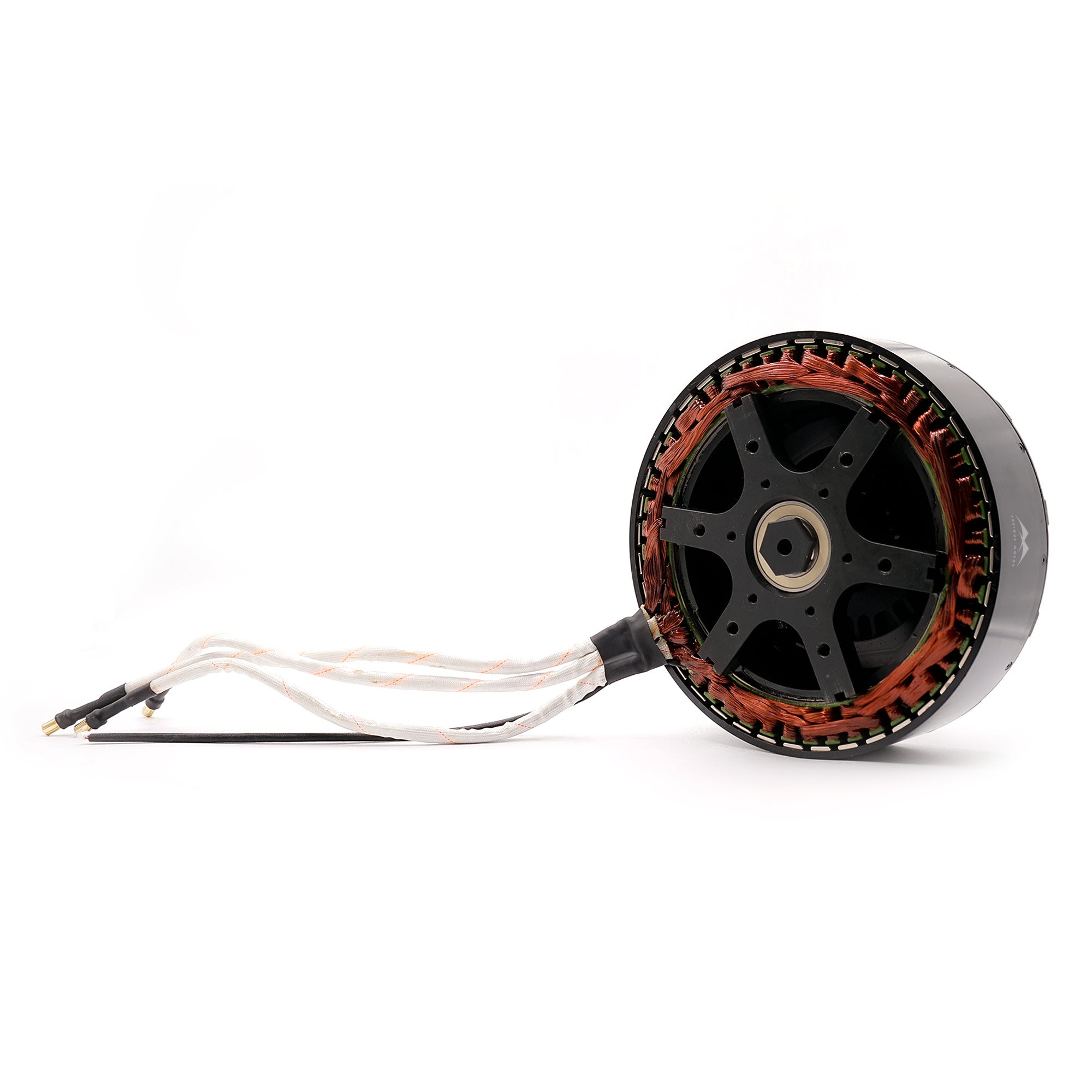

238100 Drone Motor 116KG Thrust Propulsion System for Heavy Lift Drone Unmanned Aircraft
238100 is a powerful motor designed for unmanned aircraft, heavy lift drones. It is engineered to work seamlessly with 63 inch propeller and 24S 300A ESC, delivering a maximum thrust up to 116KG.
79N·m
Max. Torque
116 KG
Max. Thrust

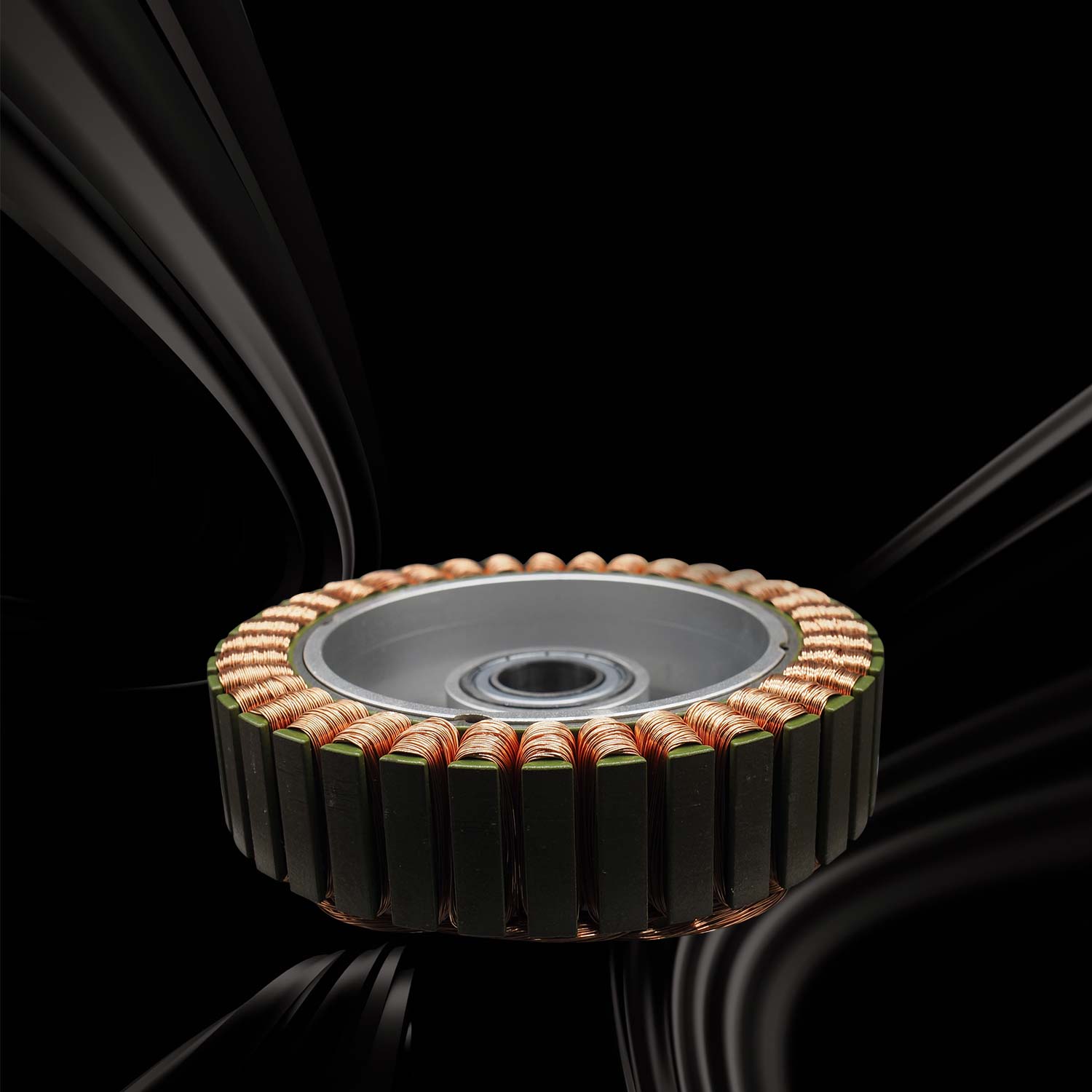

100% hand-made wire with special coating layer, featuring high temperature resistant, aging resistant and fireproof, more durable and stable.
Bearings are imported from worldwide well-recognized suppliers, ensuring perfect stability and durability.

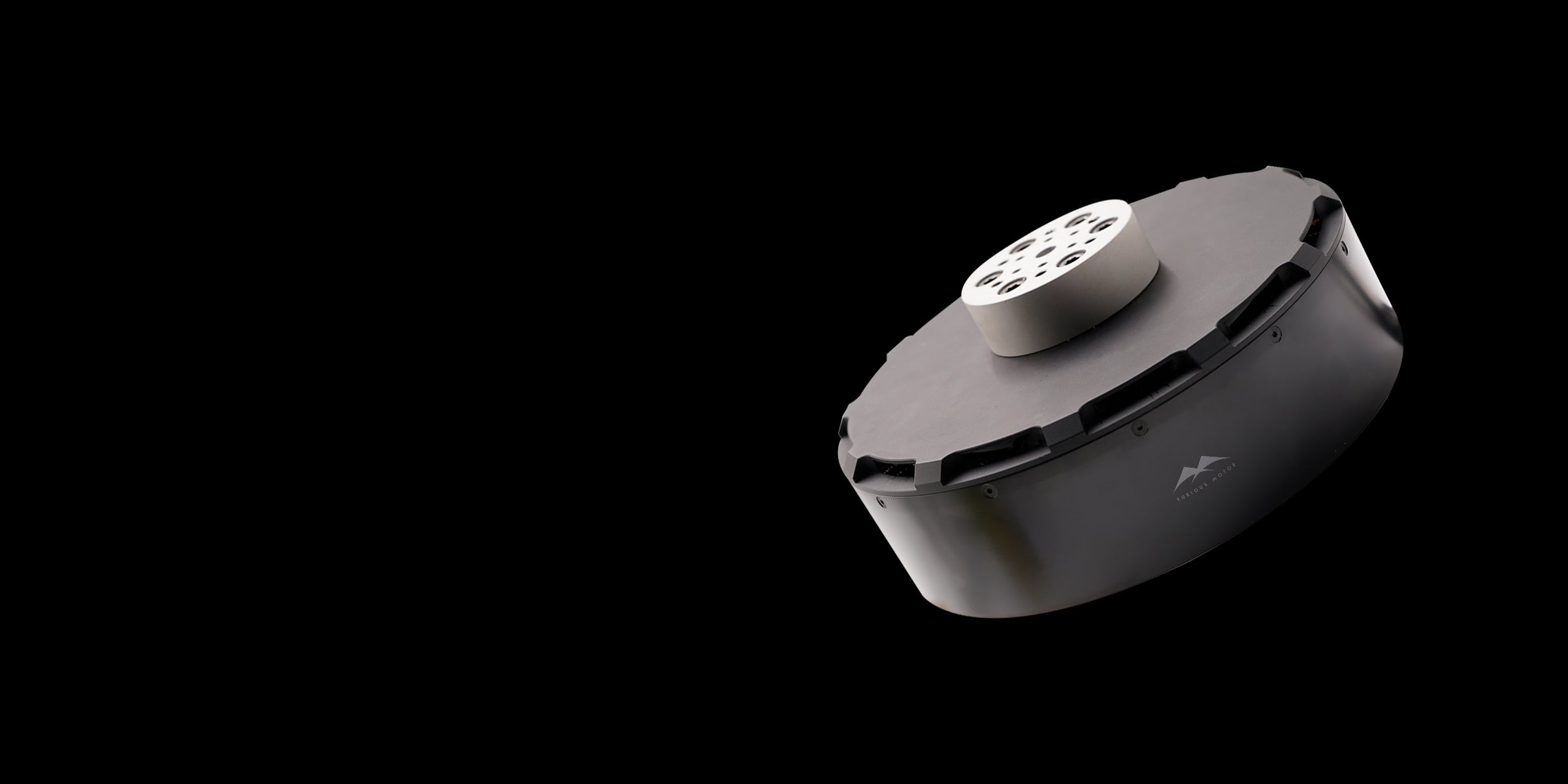

Improved motor architecture, made and processed with the best materials and technology, providing worry-free flying.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application
Heavy lift drone
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
ø238 x 100mm
35 / customized
116KG
79N·m
2881
24S 300A
63
288A
95V
23.8KW
12S-24S
Optional
7.8KG
