23850 98KG Thrust Propulsion System BLDC Motor with Propeller and Speed Controller for Unmanned Aircraft Multi-rotor Drone

Sale price$1,260.00 Regular price$1,299.00
Save $39.00
KV: 35

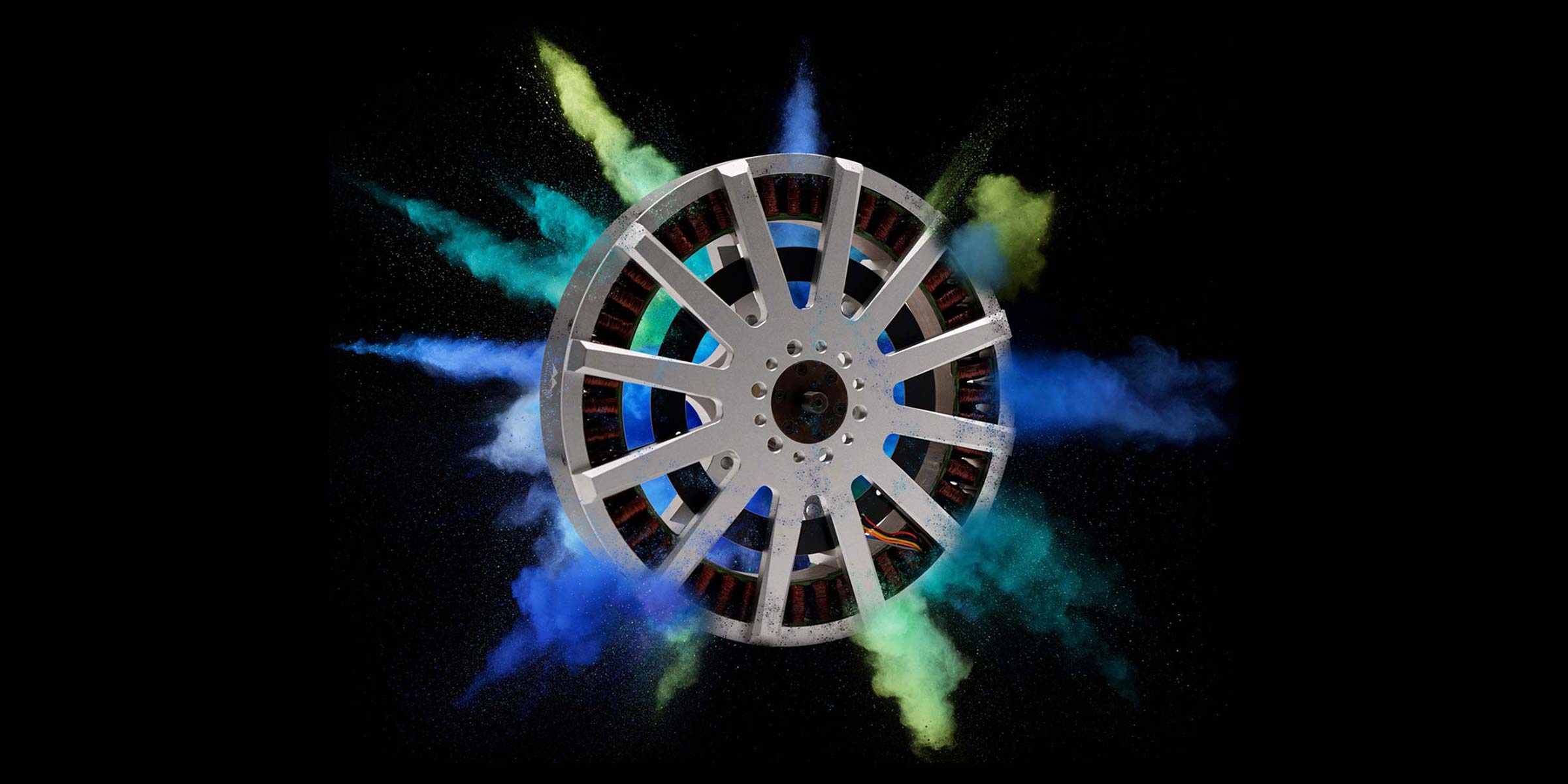

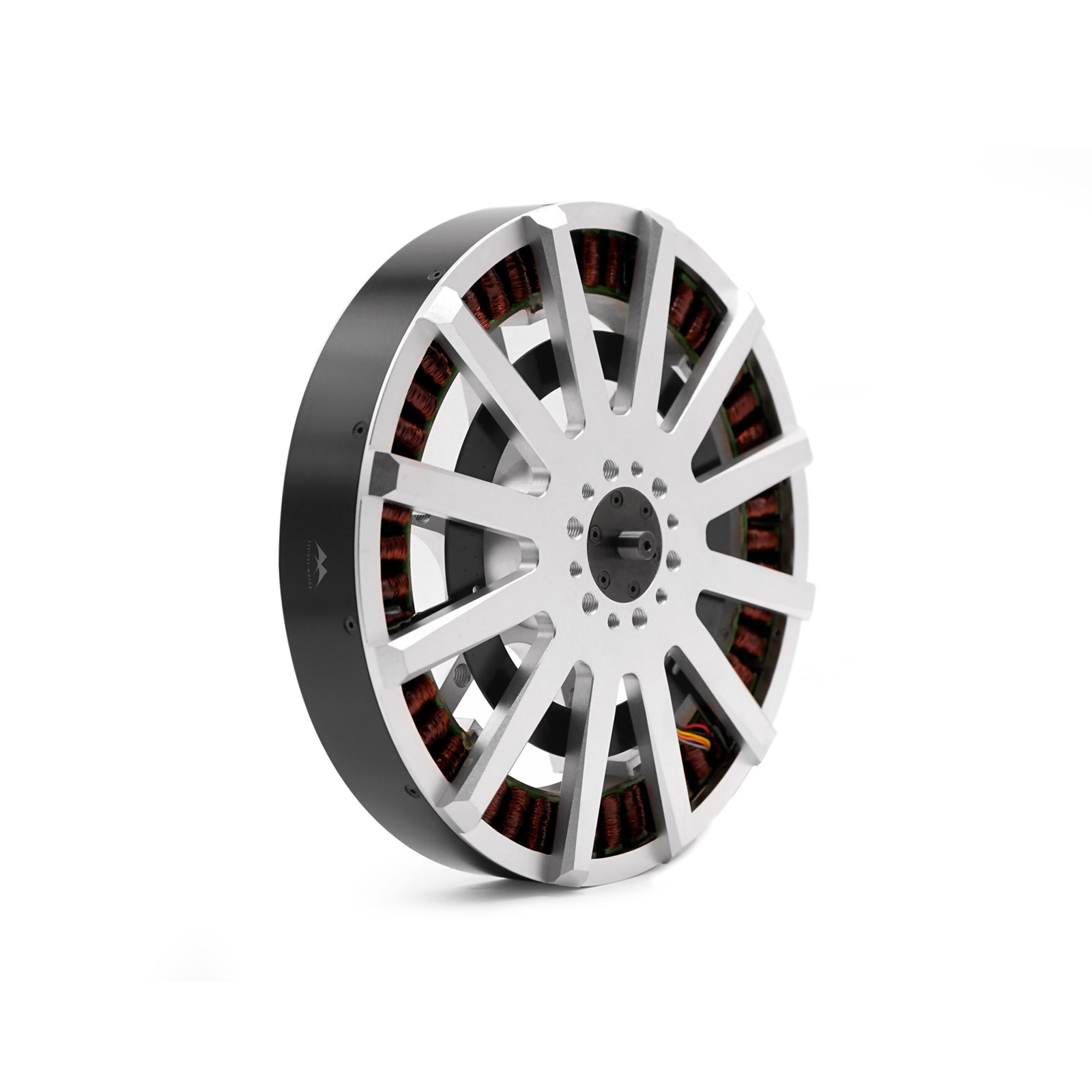

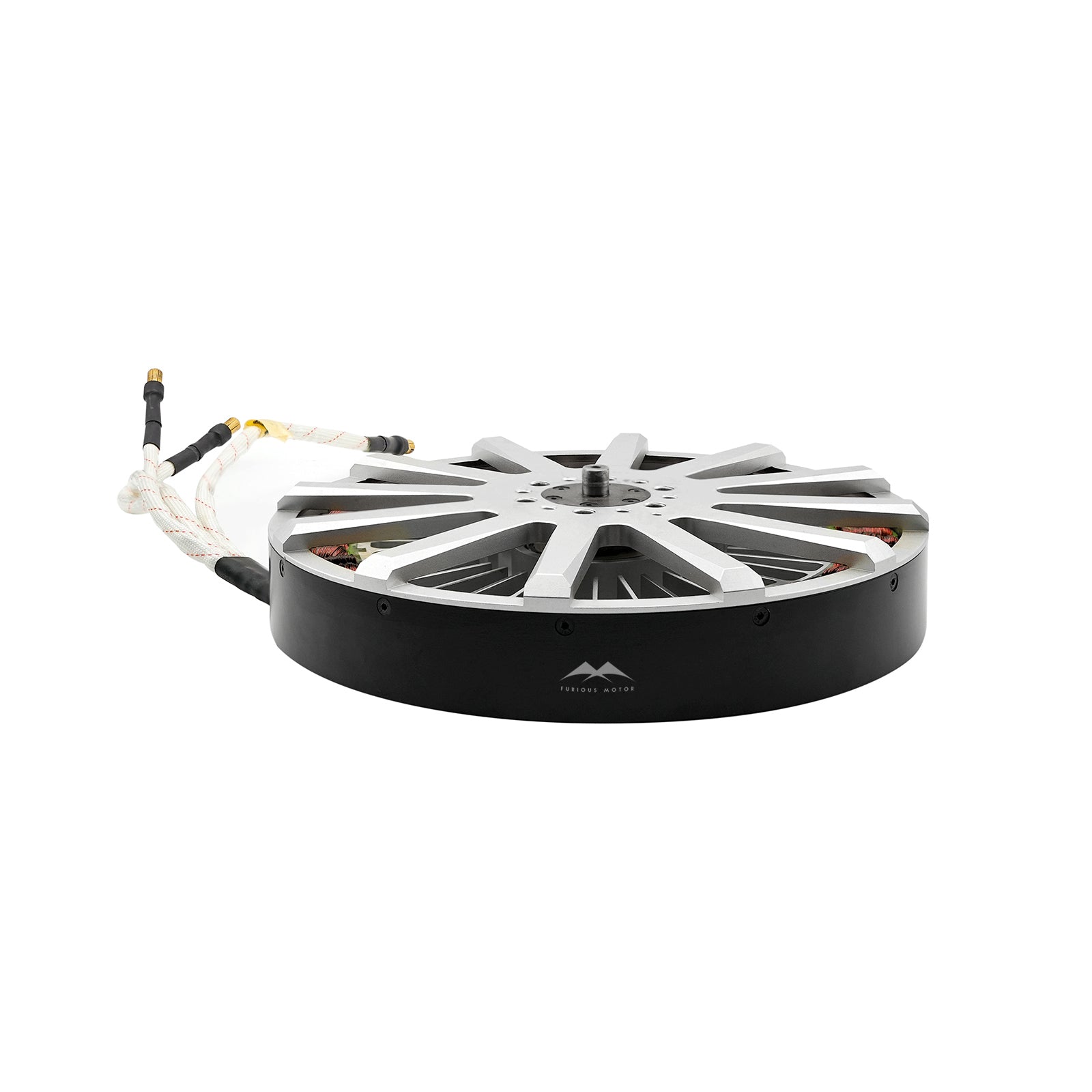

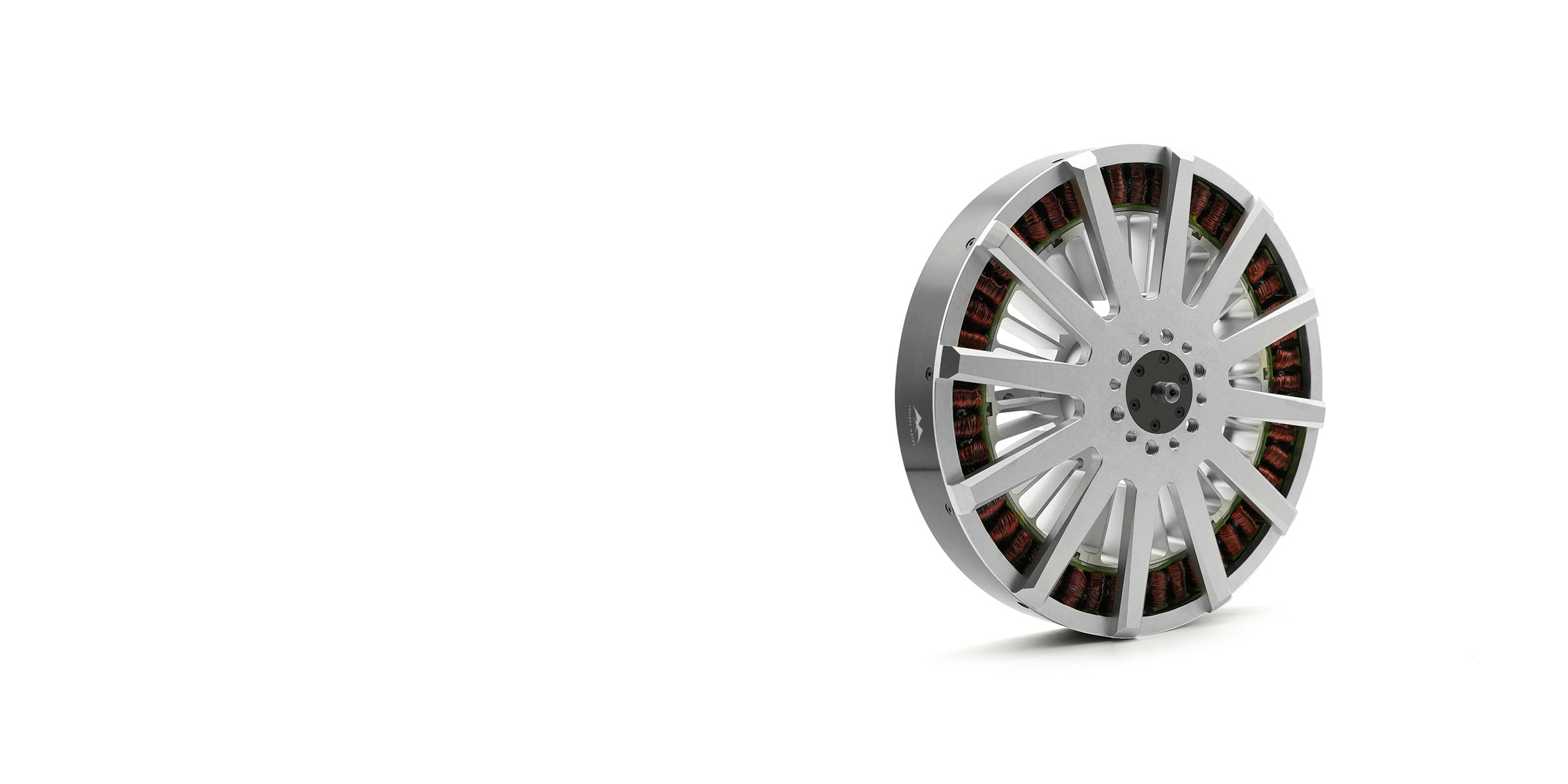

Introducing 23850 BLDC motor, one of our top-selling motors, delivering an astounding 98kg thrust. Perfectly matched with AH-55T propeller and Maven 24S 300A ESC, it powers unmanned aircraft, paramotors, paragliders.

98 KG

Max. Thrust

80 N·m

Max. Torque

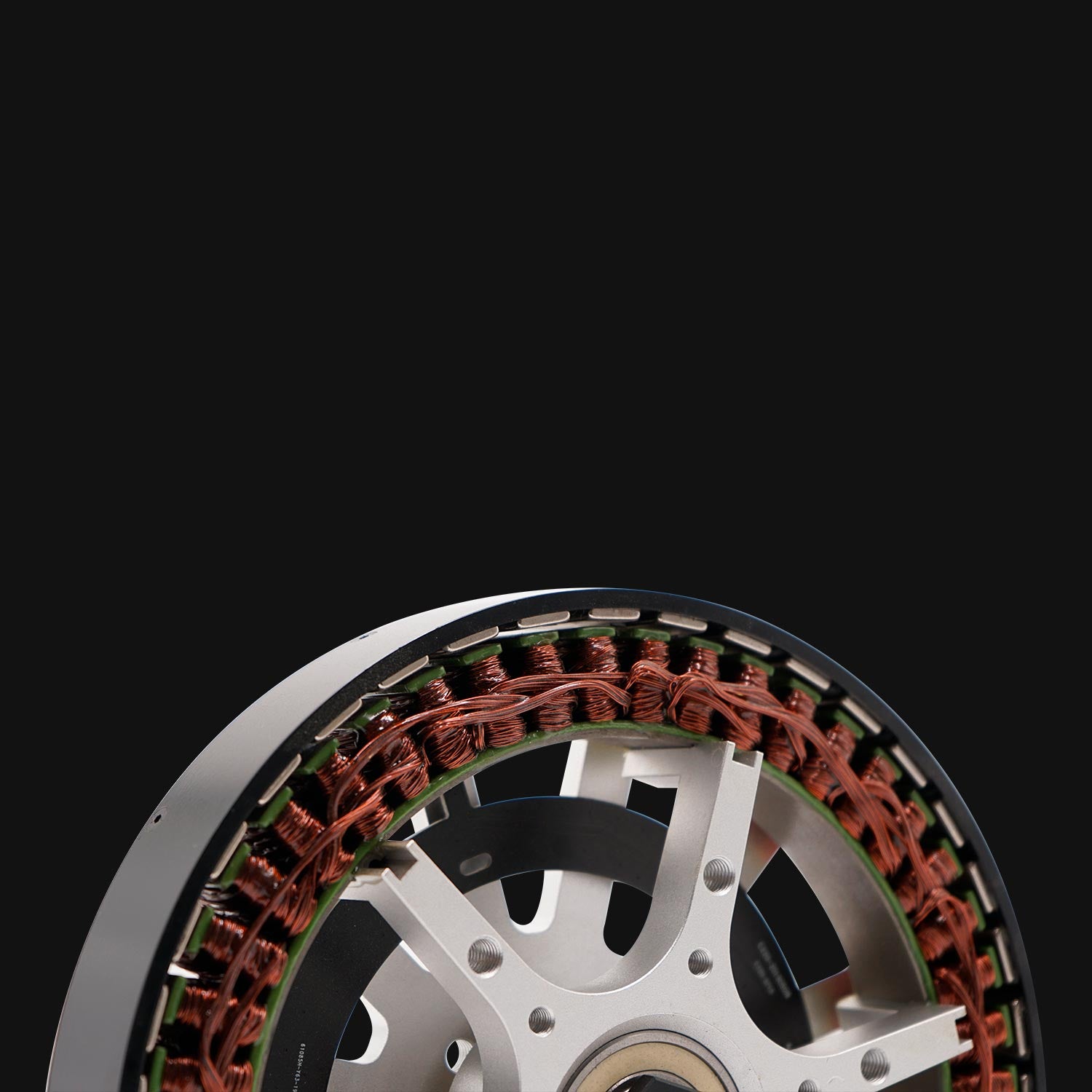

100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.

World-renowned bearing, ensuring trouble-free service over 1800 hours.

Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.

0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.

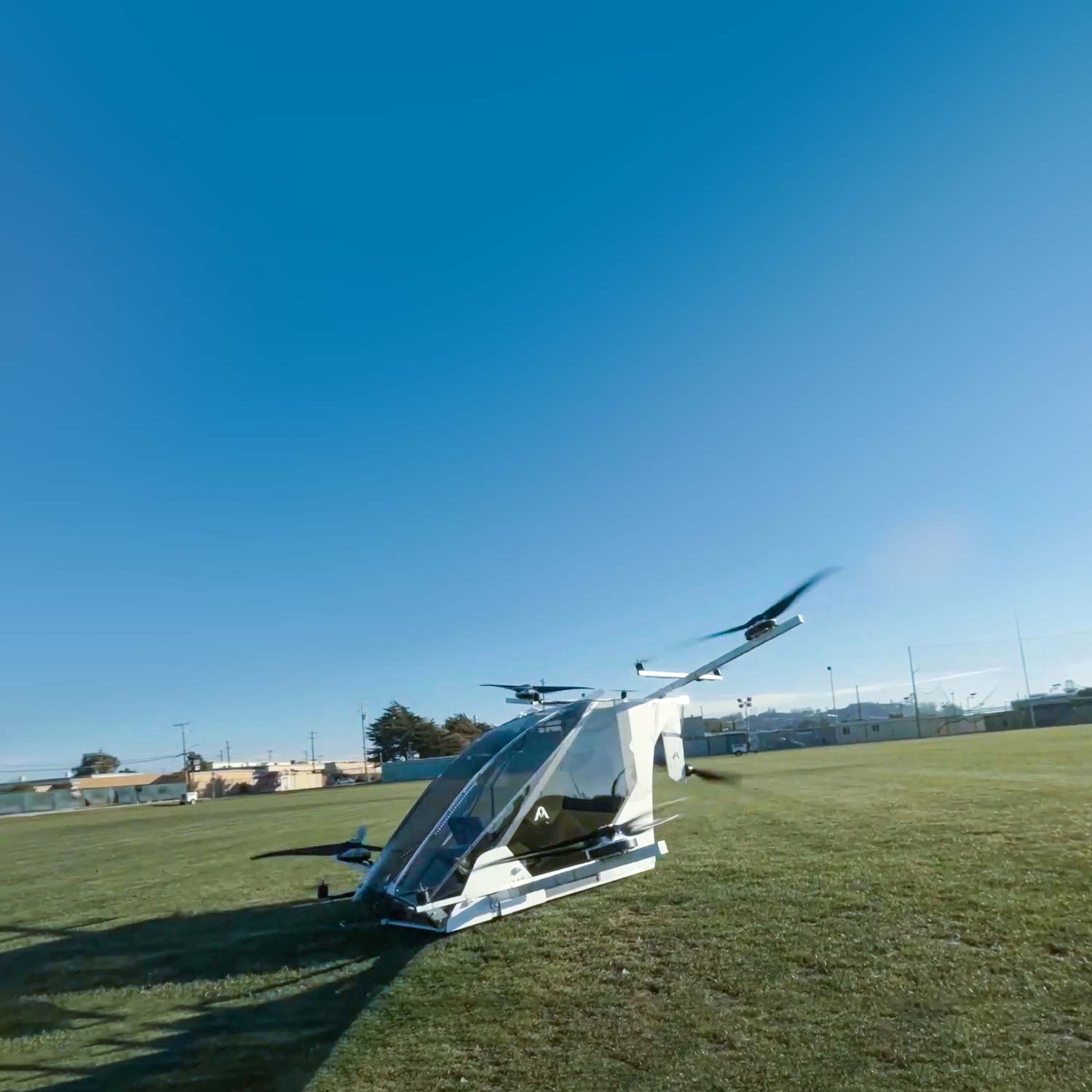

Unmanned Aircraft

Paraglider

Paramotor

Propulsion system

98KGSave $39.00
23850 98KG Thrust Propulsion System BLDC Motor with Propeller and Speed Controller for Unmanned Aircraft Multi-rotor Drone23850 98KG Thrust Propulsion System BLDC Motor with Propeller and Speed Controller for Unmanned Aircraft Multi-rotor Drone
23850 98KG Thrust Propulsion System BLDC Motor with Propeller and Speed Controller for Unmanned Aircraft Multi-rotor Drone Sale price$1,260.00 Regular price$1,299.00
Furious Motor 24S 300A High Current Motor Controller with Upgraded Algorithm for Big Drone EngineFurious Motor 24S 300A High Current Motor Controller with Upgraded Algorithm for Big Drone Engine
Furious Motor 24S 300A High Current Motor Controller with Upgraded Algorithm for Big Drone Engine Sale price$929.00
55 Inch 3-Blade CW CCW Carbon Fiber Propeller for 23850 BLDC Motor Heavy Lift Drone Motor55 Inch 3-Blade CW CCW Carbon Fiber Propeller for 23850 BLDC Motor Heavy Lift Drone Motor
55 Inch 3-Blade CW CCW Carbon Fiber Propeller for 23850 BLDC Motor Heavy Lift Drone Motor Sale price$546.00

Main Specifications

The specifications provided are based on test results from our standard model. We welcome you to contact us to customize a product tailored to your specific needs.

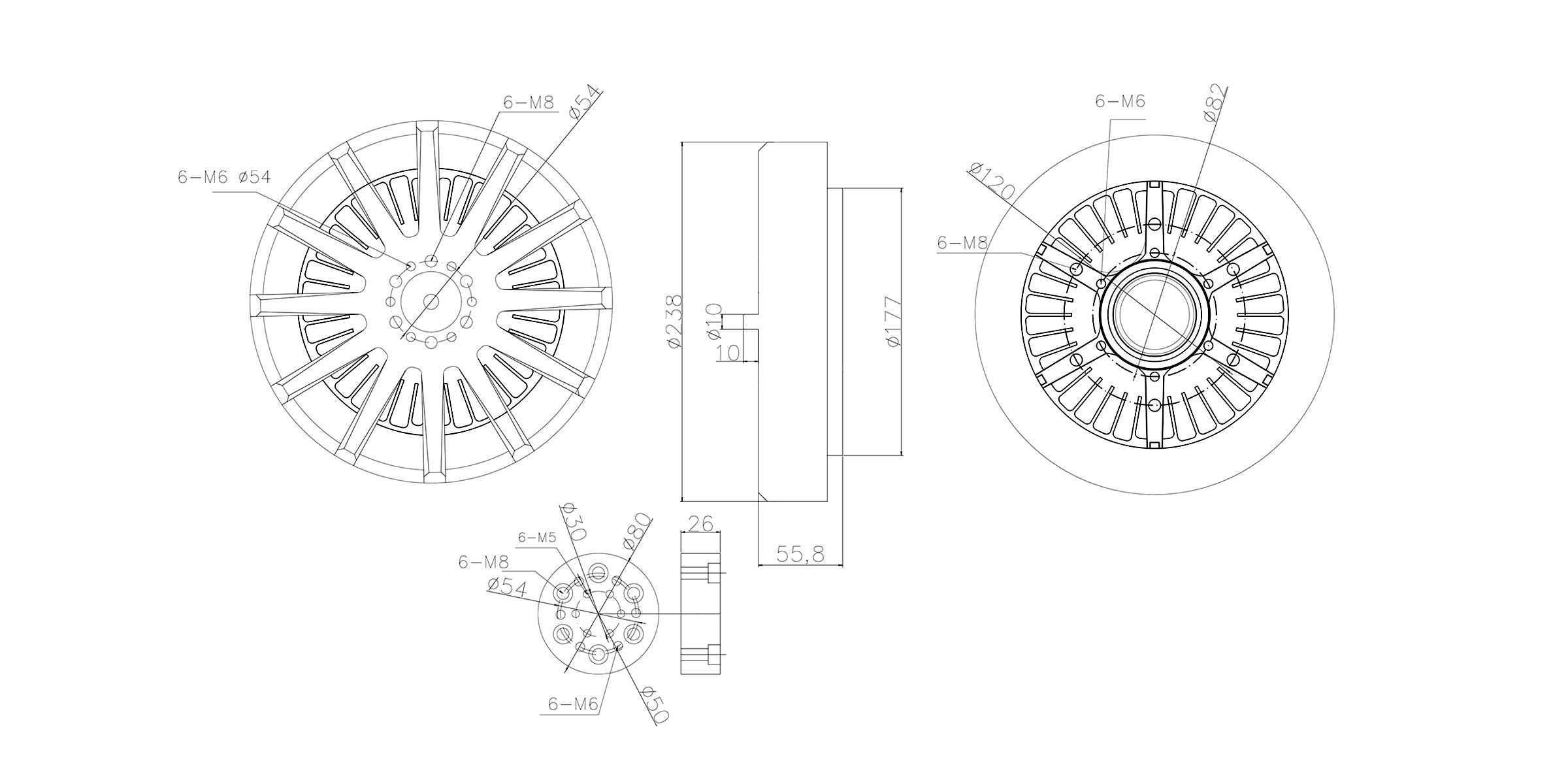

Dimension

238mm x 50mm

KV

35 / customized

Max. Thrust

98KG

Max. Torque

80N·m

Max. RPM

2420

Suggested ESC

Maven 24S 300A

Suggested Propeller

AH 55T

Max. Current

280A

Max. Voltage

90V

Max. Power

20KW

Li-Po

14S-24S

Hall Sensor

Optional

Weight

4.5KG
