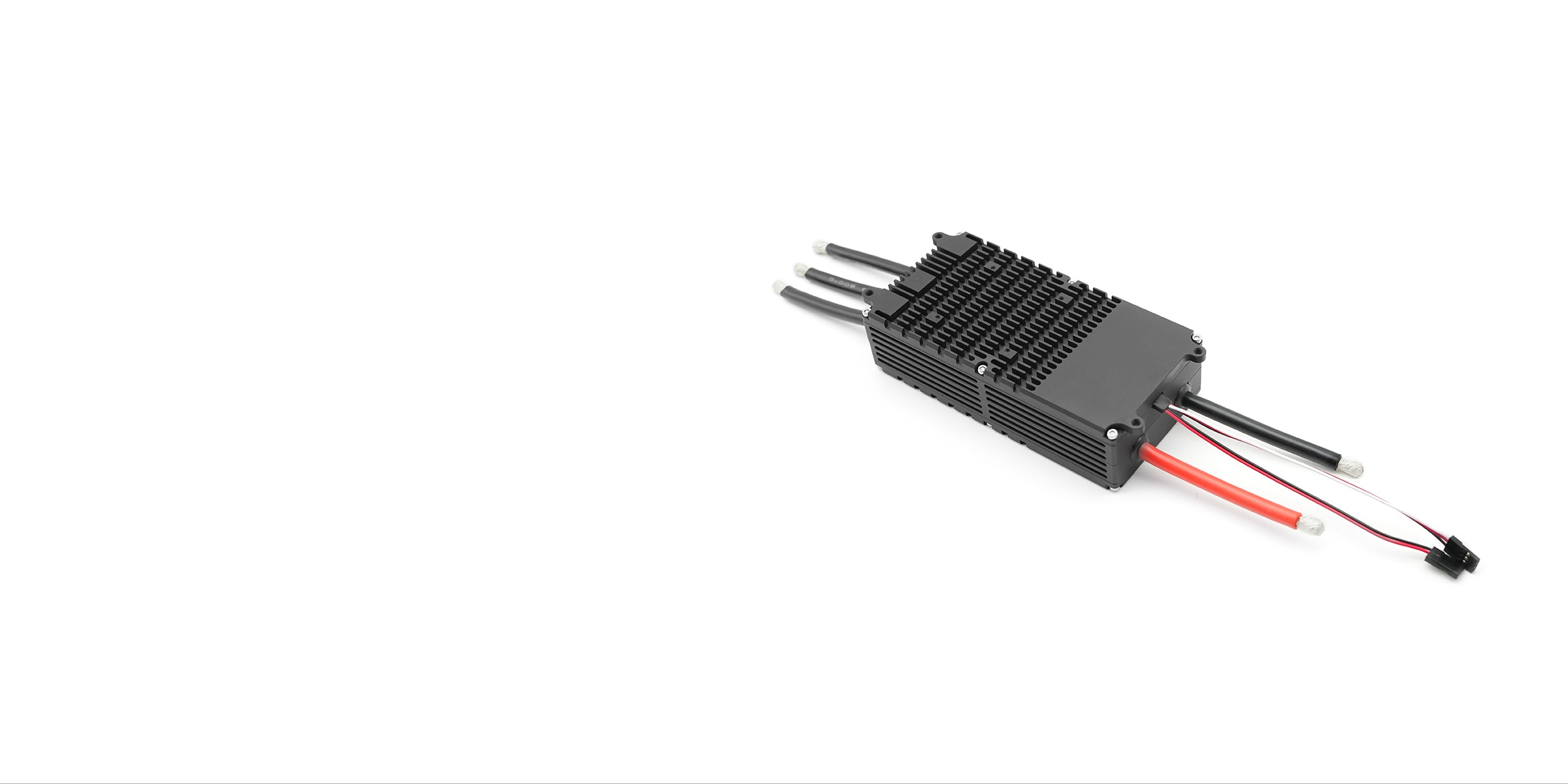

Furious Motor 24S 200A Motor Controller for VTOL Drone Quadcopter Hexacopter
24S 200A ESC stands out for its precision in brushless motor control. With advanced algorithms brushless motor drive chips, it ensures reliable high-voltage driving and it performs optimally with our 12090, 120100, 15060, and 15470 motors, offering exceptional control.

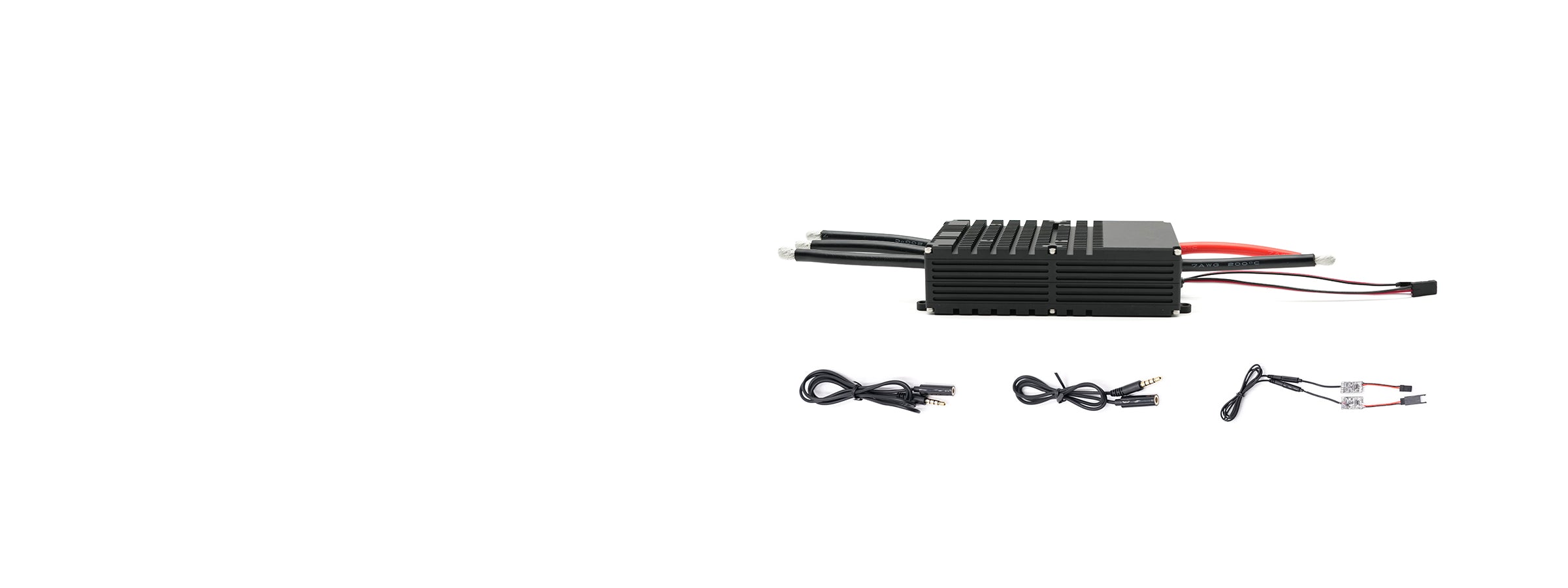

24S 200A comes with an extension cord designed for multirotor drone to control wirelessly and flexibly.
Multiple protections, set it and forget it
Starting protection
When motor fails to start after increasing the accelerator for 10 seconds, ESC will automatically
shut down. After the accelerator is reset to zero and properly work again, ESC will resume working.
Current and voltage protection
ESC will automatically shut down as long as it running with current or voltage fall out of safe working range, and will resume working after throttle returns to 0.
Temperature protection
ESC alarms when temperature reaches 115 degrees, turns off when temperature reaches140 degrees, and resumes working when throttle returns to 0.
Throttle-loss protection
ESC automatically shut down when no throttle signal is detected for 0.3 second, and resume working after throttle signal restores.
When motor fails to start after increasing the accelerator for 10 seconds, ESC will automatically
shut down. After the accelerator is reset to zero and properly work again, ESC will resume working.
ESC will automatically shut down as long as it running with current or voltage fall out of safe working range, and will resume working after throttle returns to 0.
ESC alarms when temperature reaches 115 degrees, turns off when temperature reaches140 degrees, and resumes working when throttle returns to 0.
ESC automatically shut down when no throttle signal is detected for 0.3 second, and resume working after throttle signal restores.
Works with motor
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
140.5mm x 66.6mm x 34.4mm
12S - 24S
240A
160A
50Hz - 400Hz
900us - 2000us
Optional
BLDC
595g
-20°C ~ 65°C
