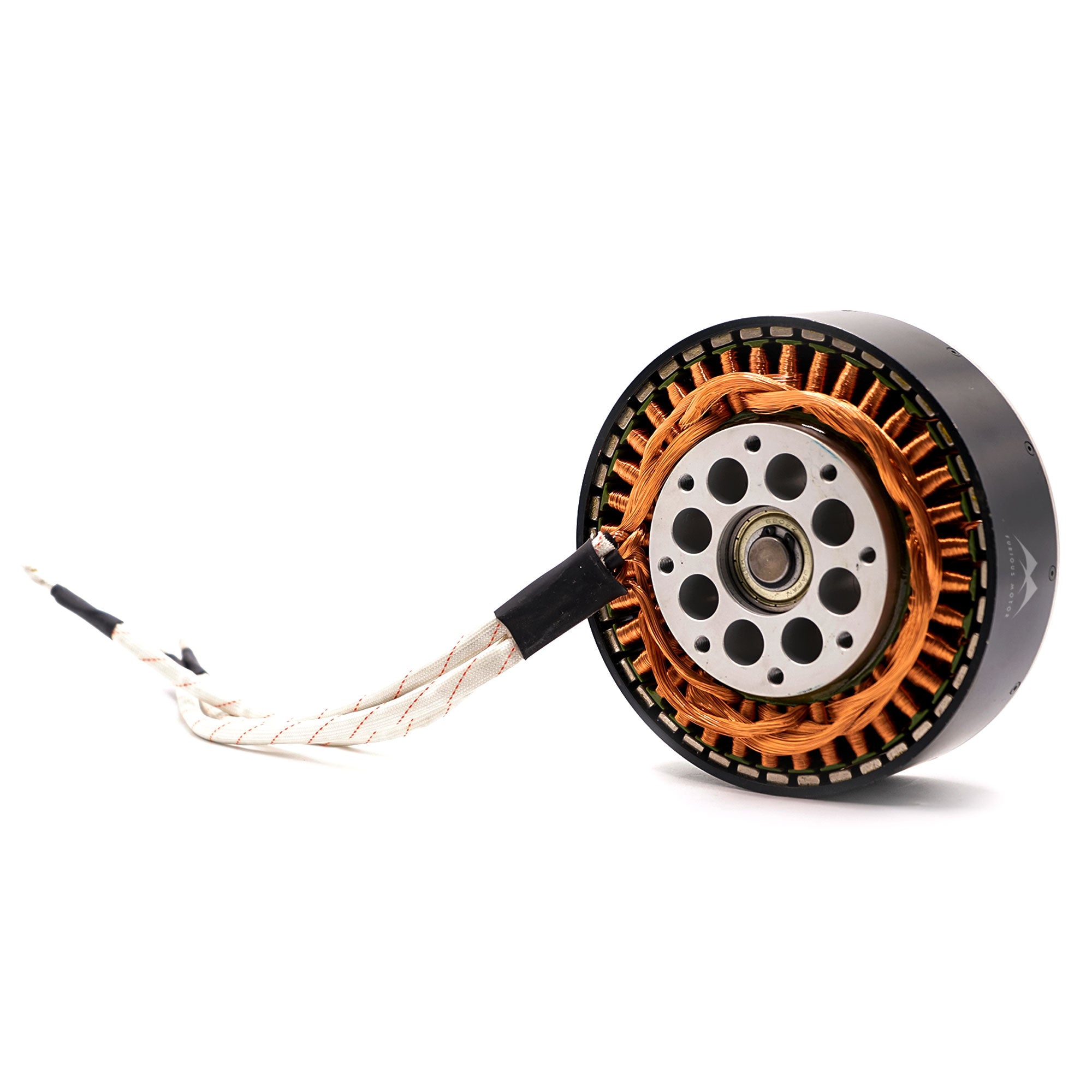

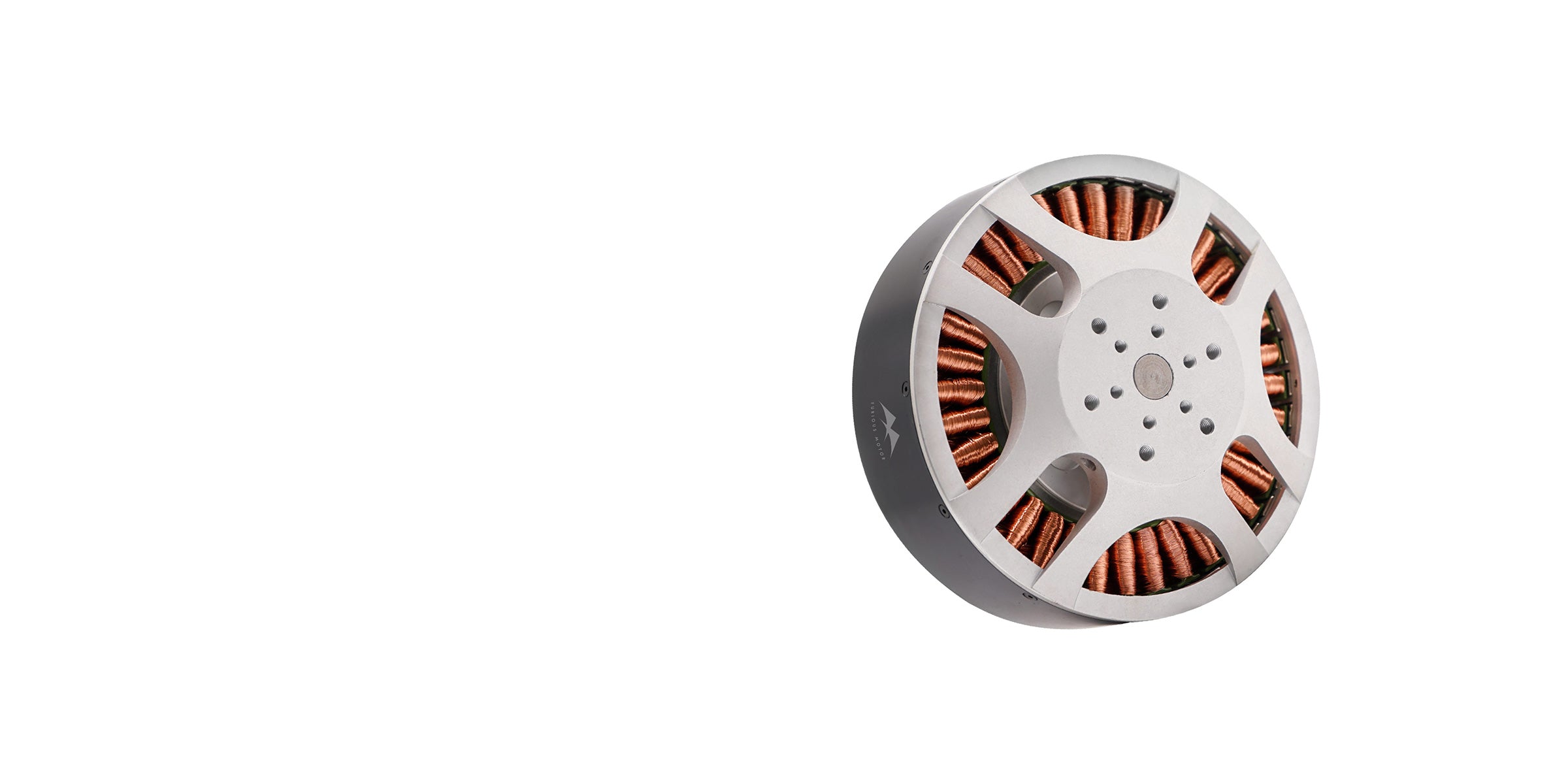

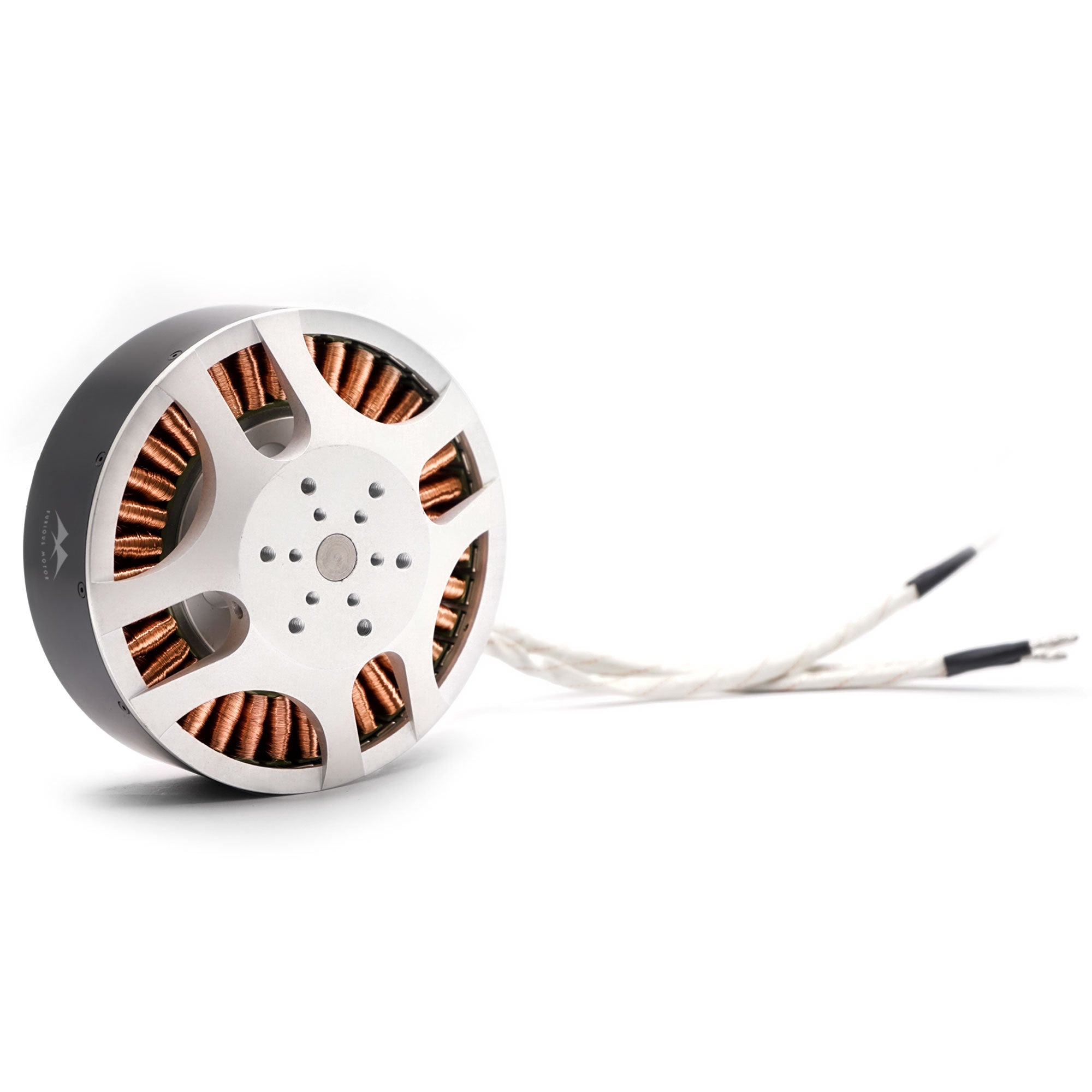

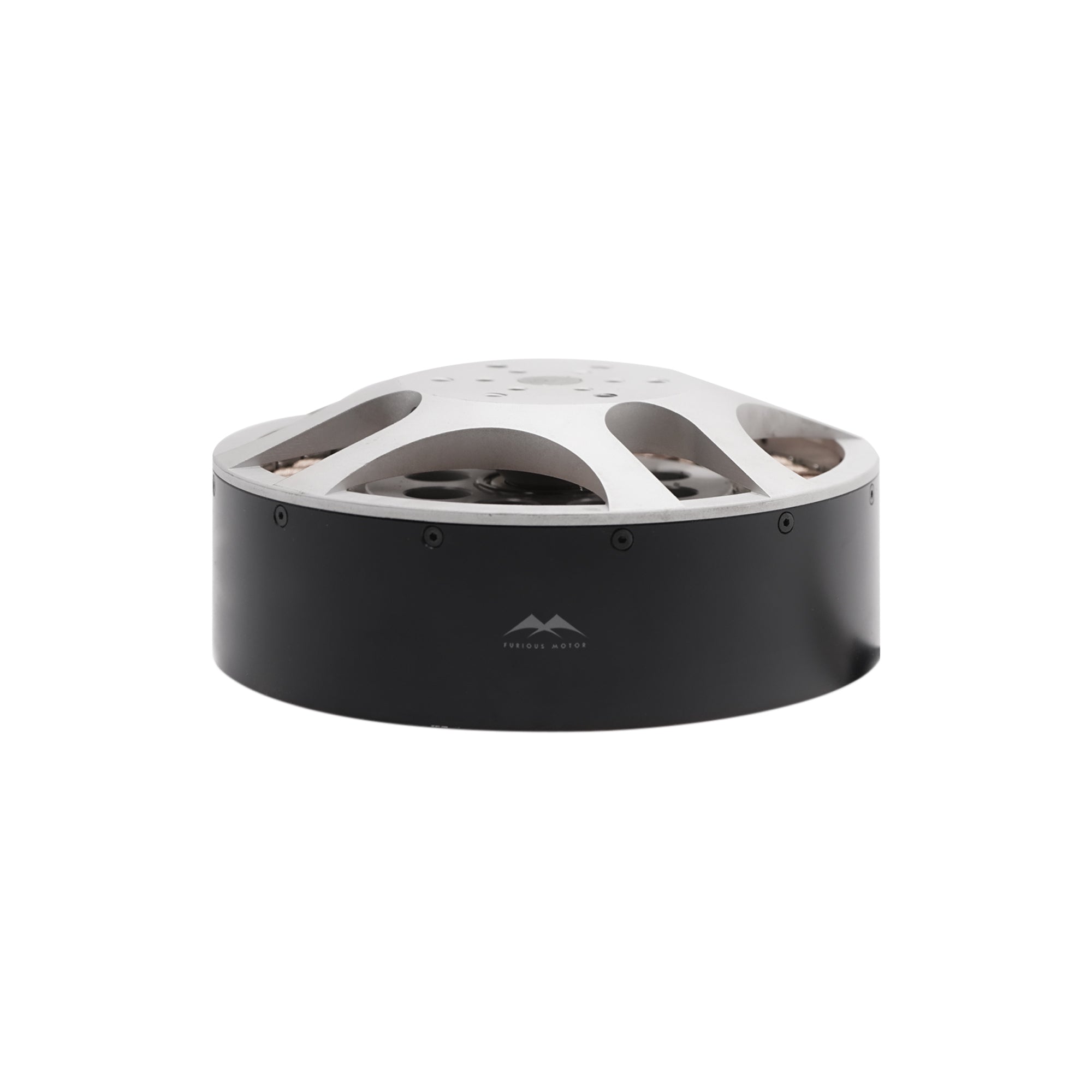

15470 Sensored or Senseless BLDC Motor with 51KG Thrust for Mega Drone Paramotor Paraglider
15470 is an efficient BLDC motor designed for various applications. It is specifically engineered to work seamlessly with a 42 inch propeller and a 24S 200A ESC, delivering a maximum thrust of up to 60KG, this motor is well-suited for applications such as multi rotor drone and paraglider.
60 KG
Max. Thrust
25N·m
Max. Torque

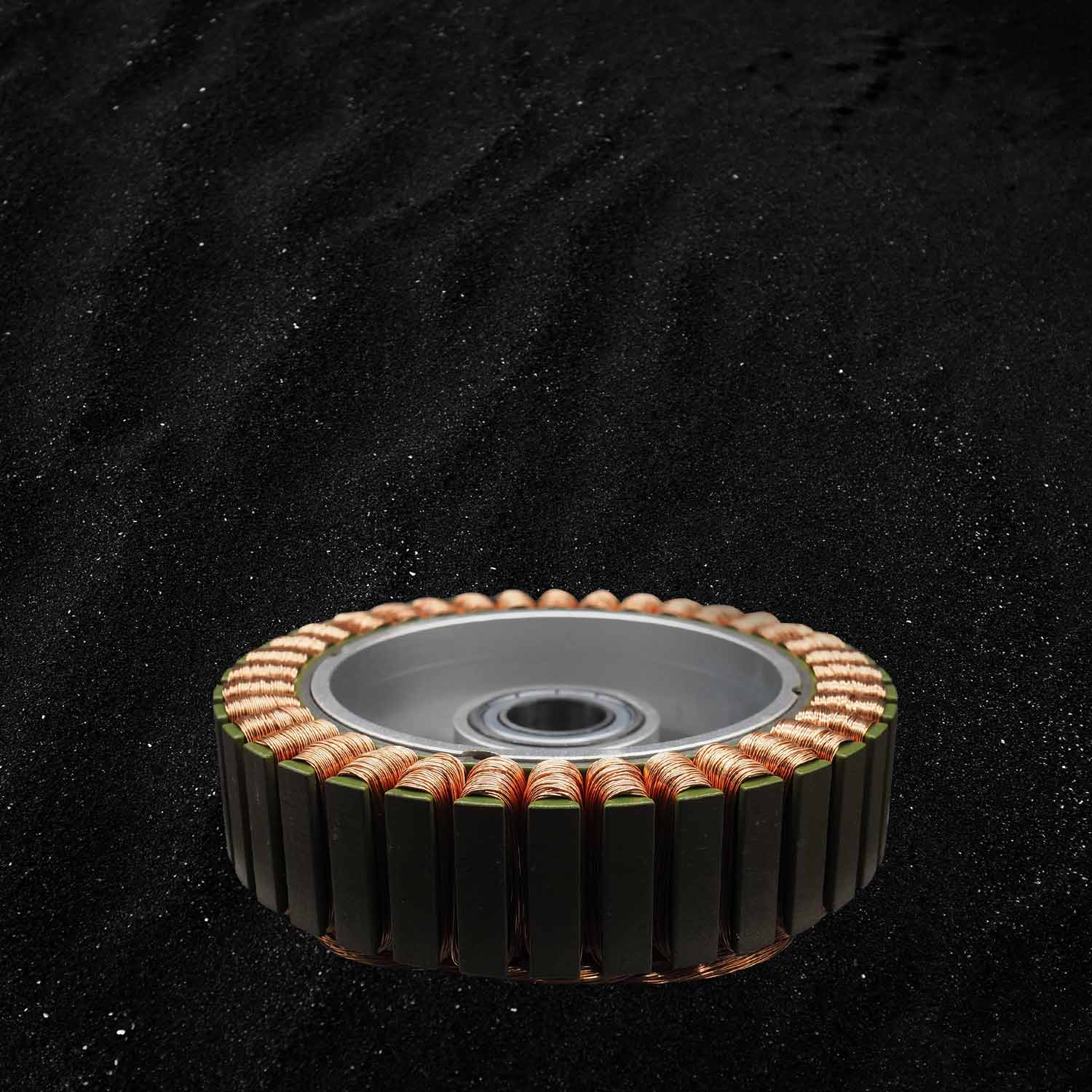

100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application 1/2
Heavy lift drone
Application 2/2
Paraglider
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
ø154 x 70mm
50 / customized
60KG
25N·m
3762
24S 200A
42 inch
300A
94V
10KW
14S-24S
Optional
3.4KG
