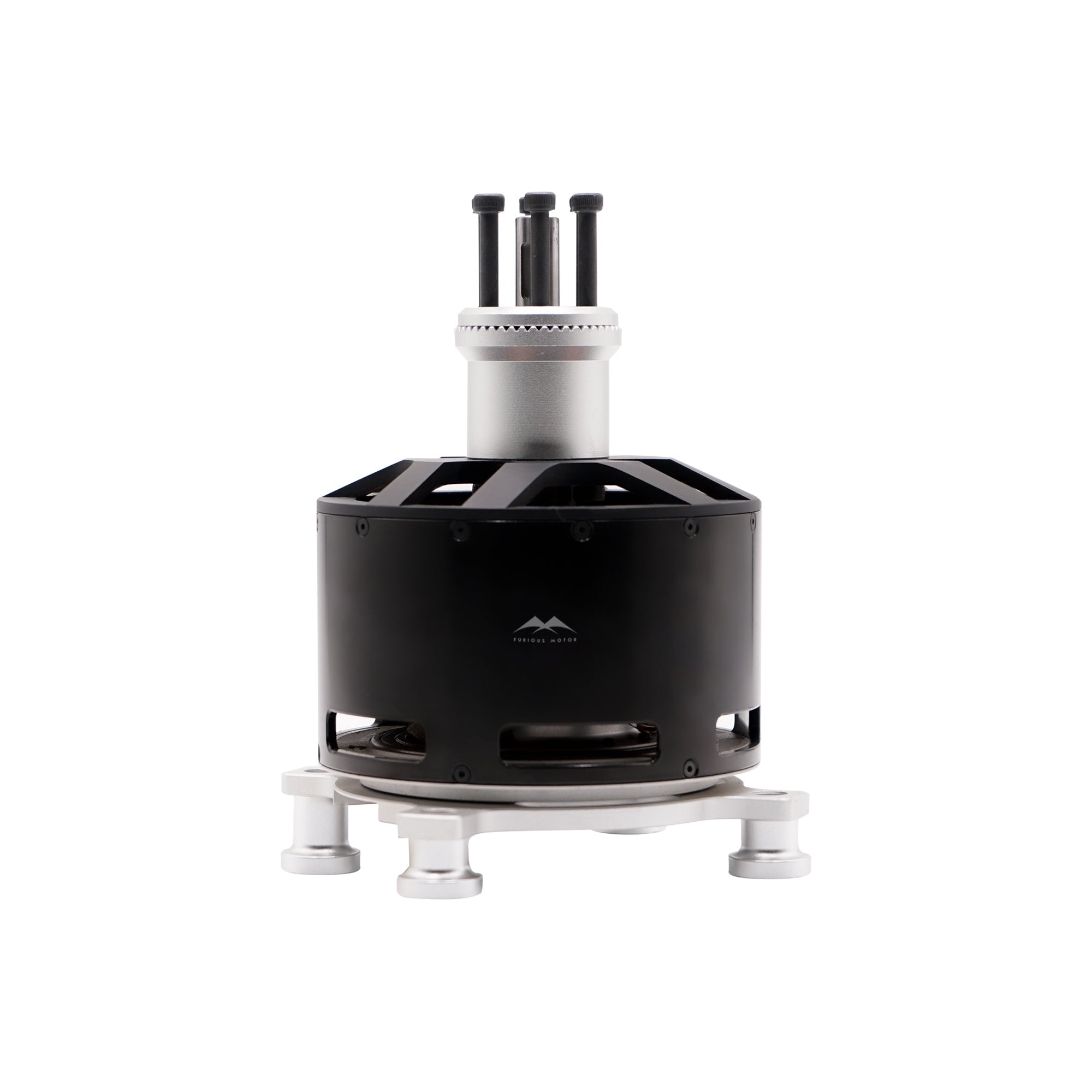

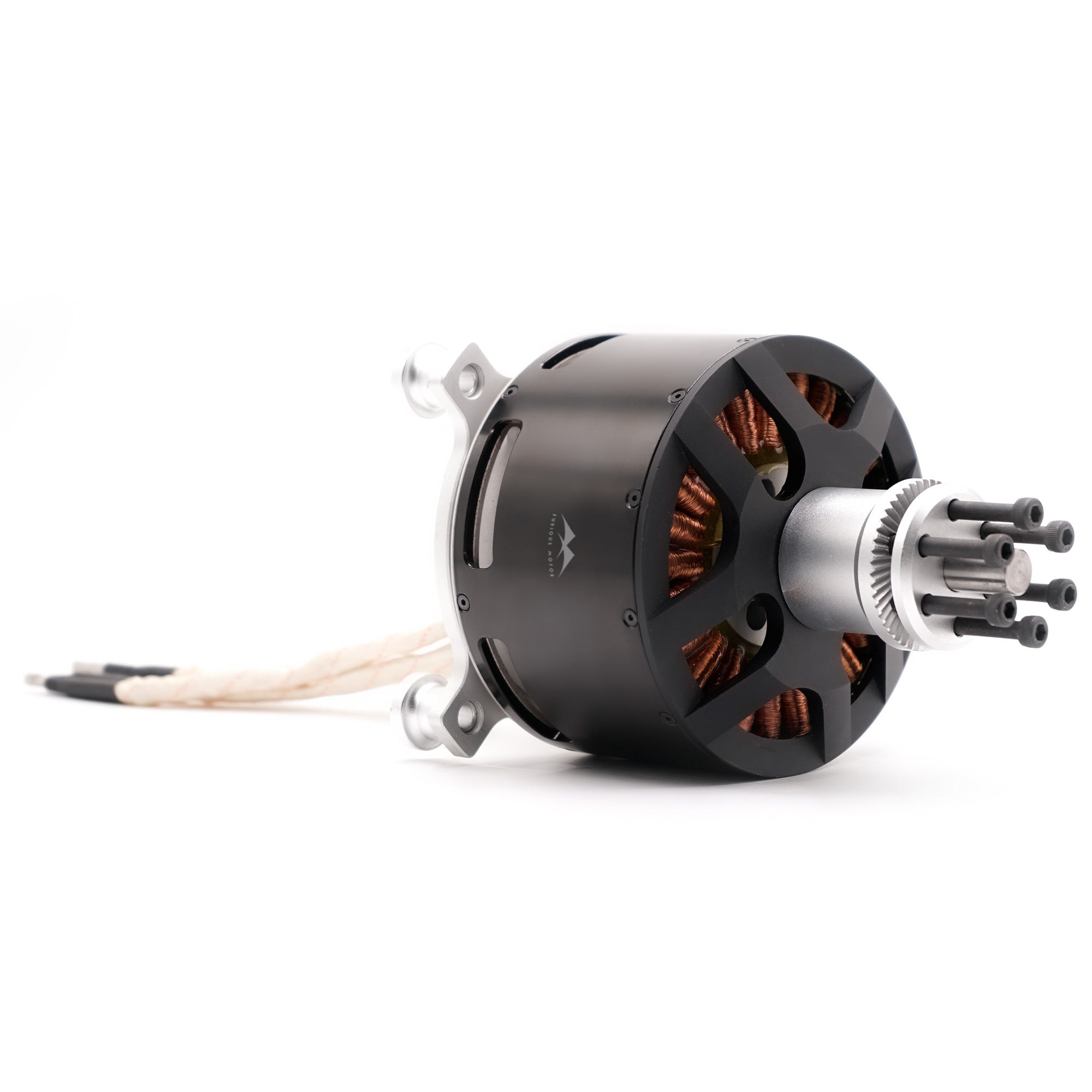

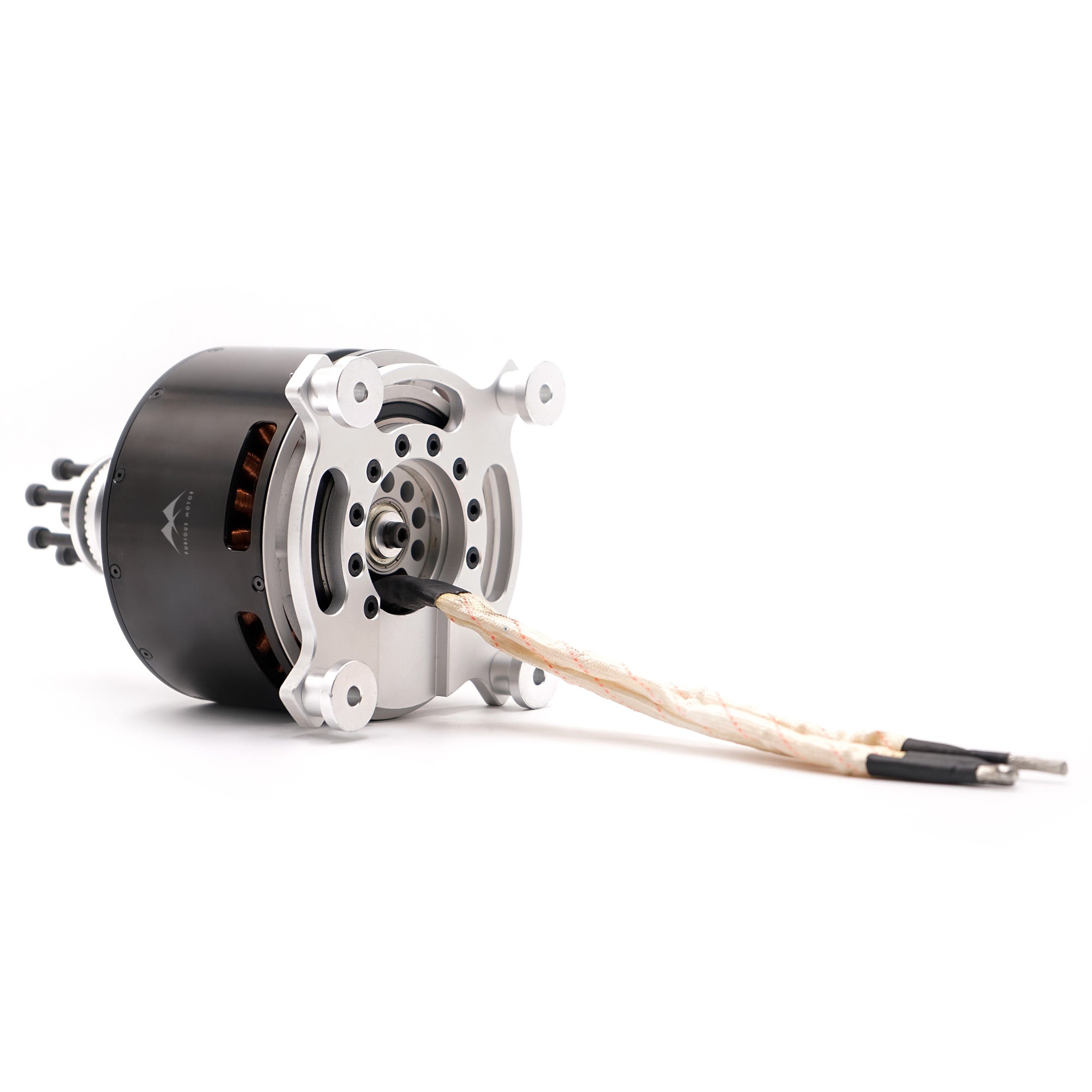

12090 42KG Thrust Drone Motor Brushless Electric Motor for Multi Rotor Drone Unmanned Aircraft
12090 BLDC motor is a reliable and efficient choice for unmanned aircraft, multi rotor heavy lift drone, paraglider. With a propeller size of 42 and a 24S 150A ESC, it provides optimized performance. With a maximum thrust of 42KG, it delivers substantial power.
42 KG
Max. Thrust
18 N·m
Max. Torque

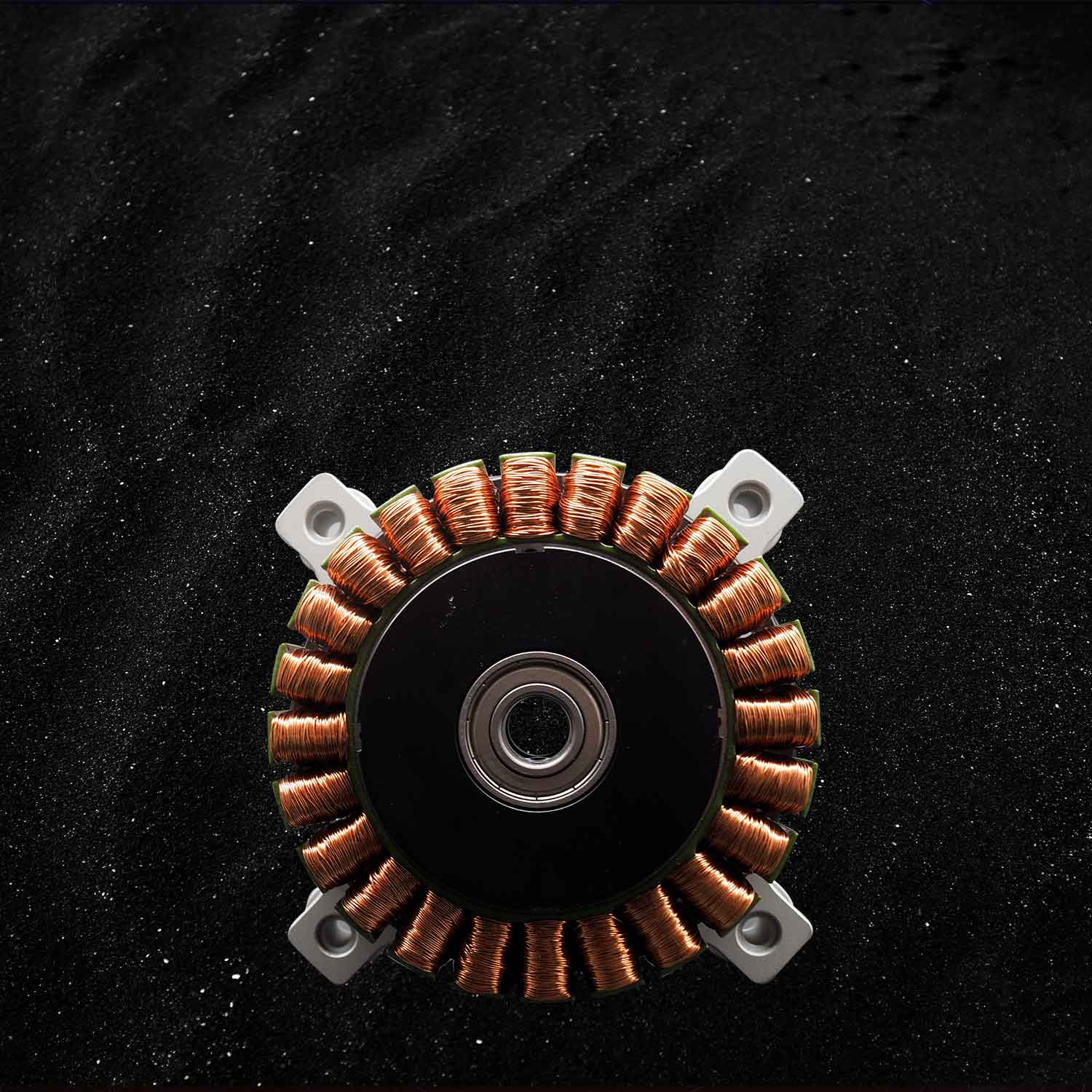

100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.

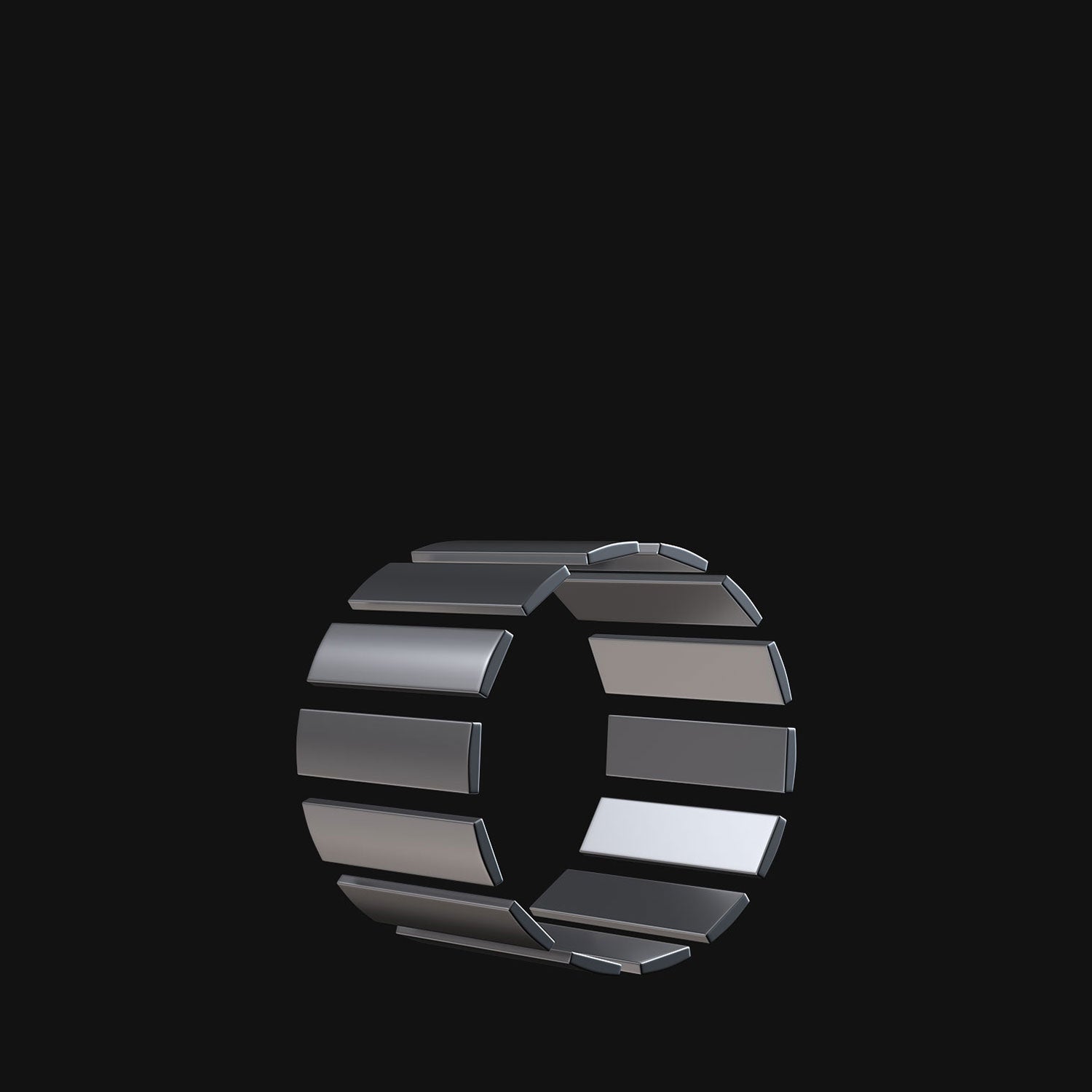

Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.

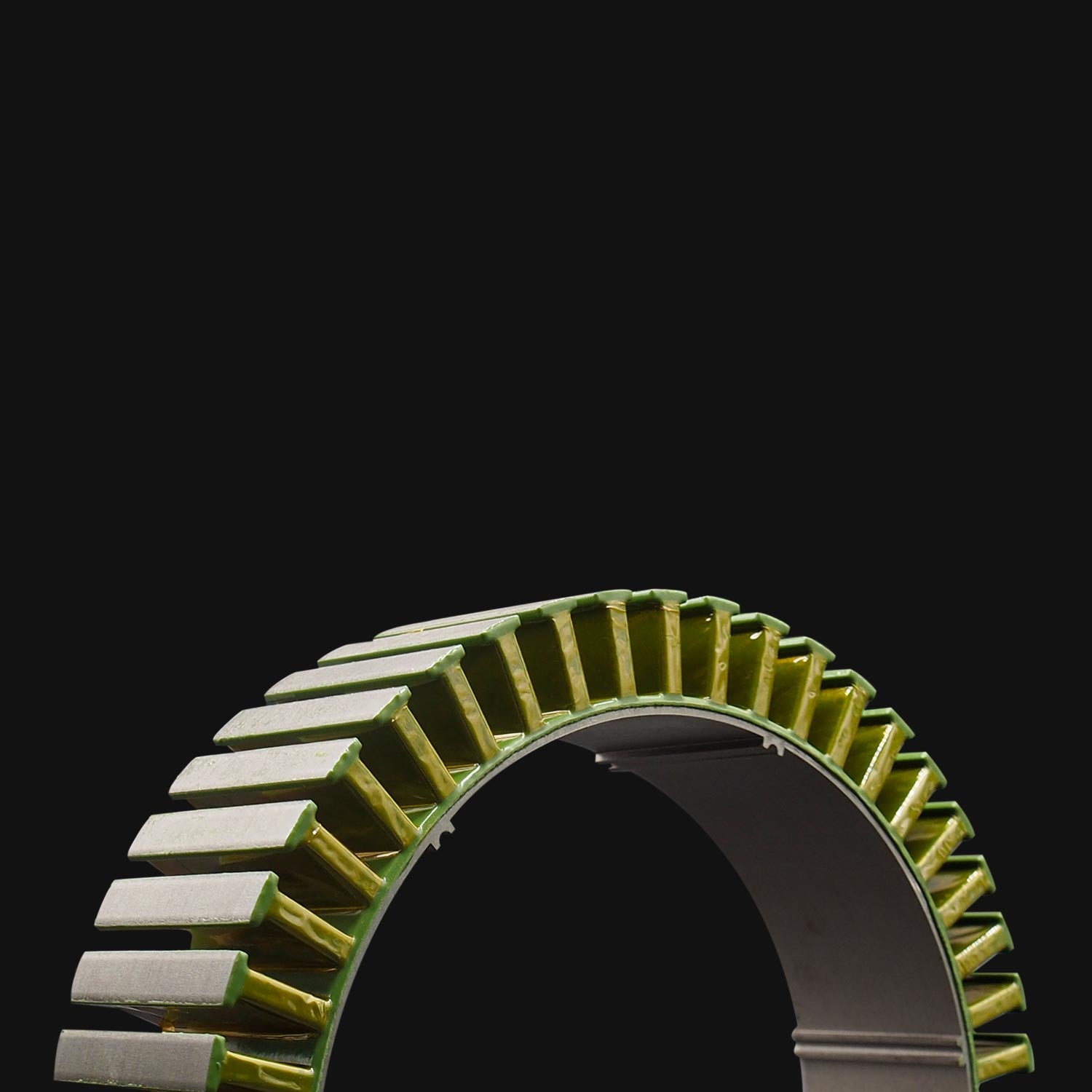

0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application 1/2
Multi rotor drone
Application 2/2
Paraglider
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
ø120mm x 90mm
78 / customized
42KG
18N·m
4770
24S 150A
36 inch
136A
79V
9KW
12S-24S
Optional
2.78KG
