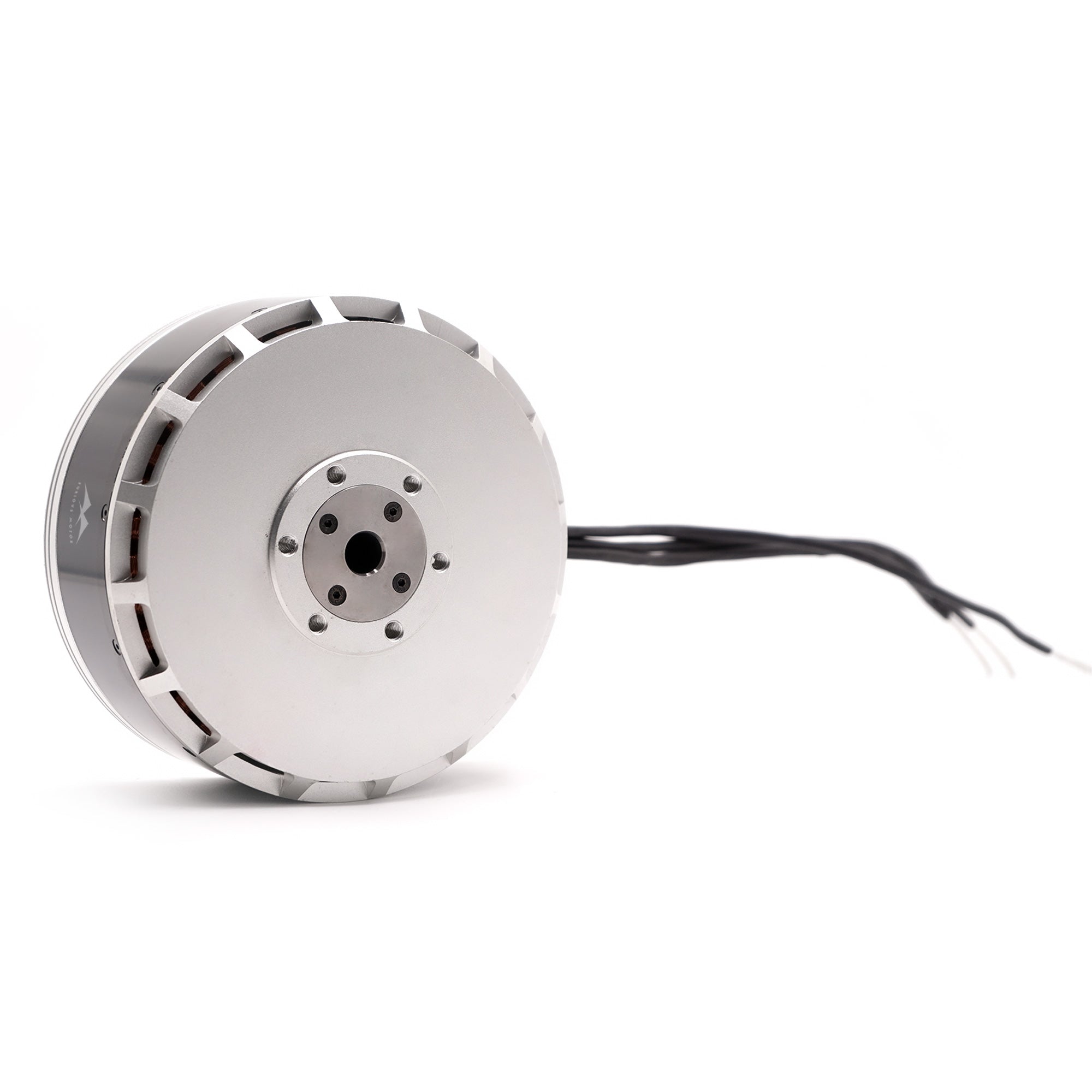

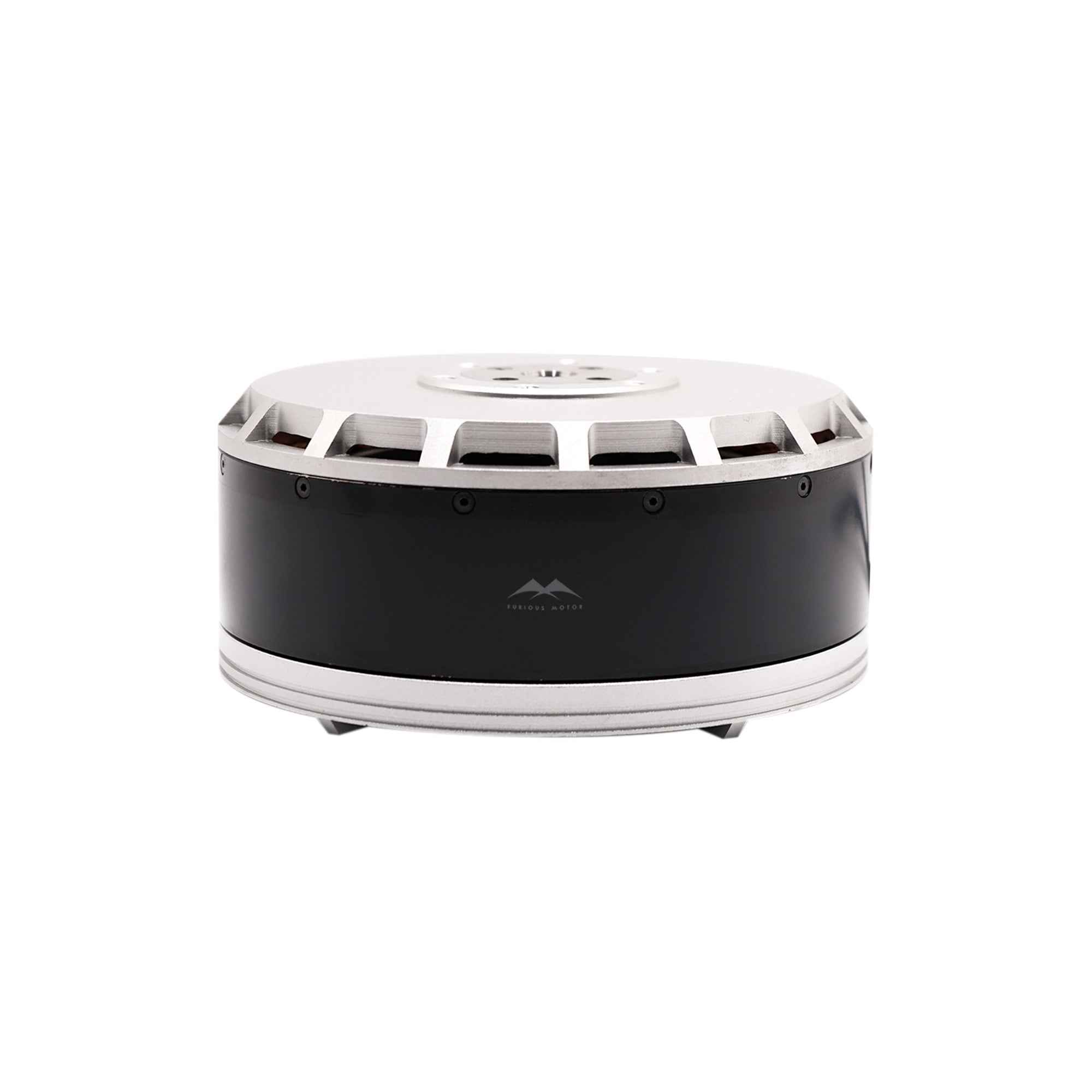

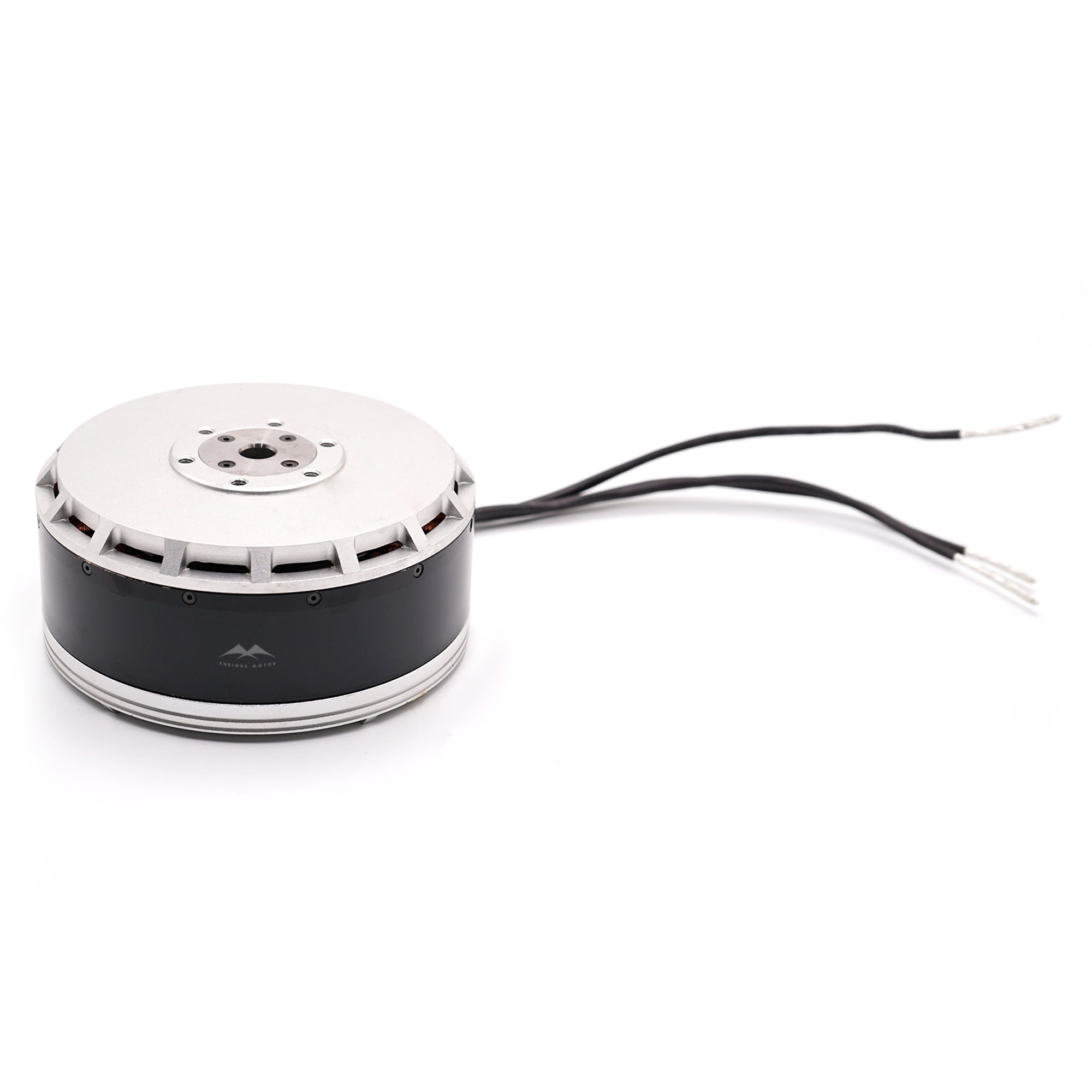

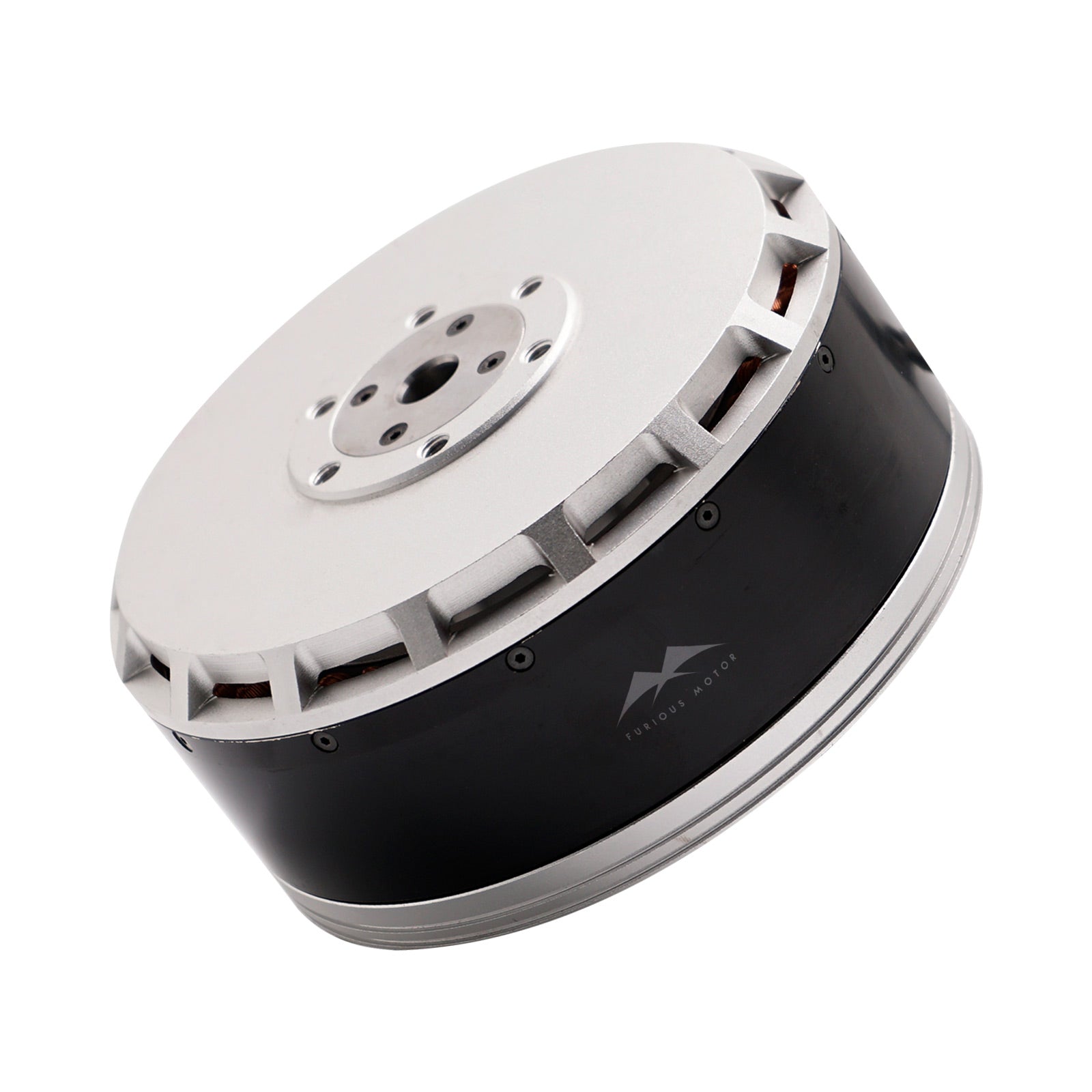

15060 Brushless DC Motor Electric for Agriculture Plant Protection UAV AGV Heavy Lift Drone Multi Rotor Drone
15060 is a high-performance, reliable choice for unmanned aircraft, heavy lift drones. With a propeller size of 42 and a 24S 200A ESC, it delivers powerful and efficient operation. With a maximum thrust of 55KG, it provides substantial power for diverse applications.
55 KG
Max. Thrust
40N·m
Max. Torque
100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application 1/2
Multi rotor drone
Application 2/2
Paraglider
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
ø150m x 60mm
55 / customized
55KG
40N·m
4400
24S 200A
42 inch
175A
80V
14KW
12S - 24S
Optional
3.2KG
