40KG

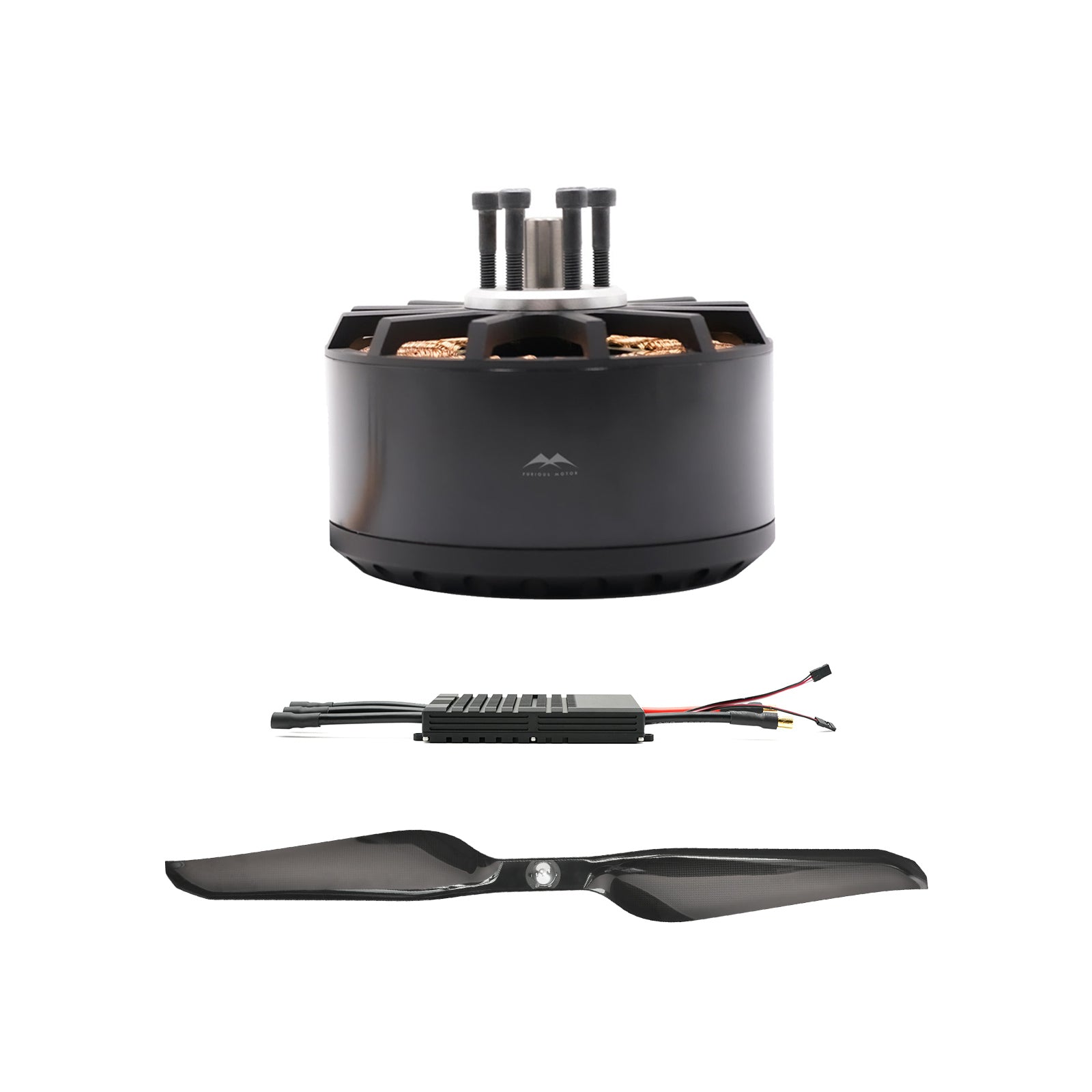

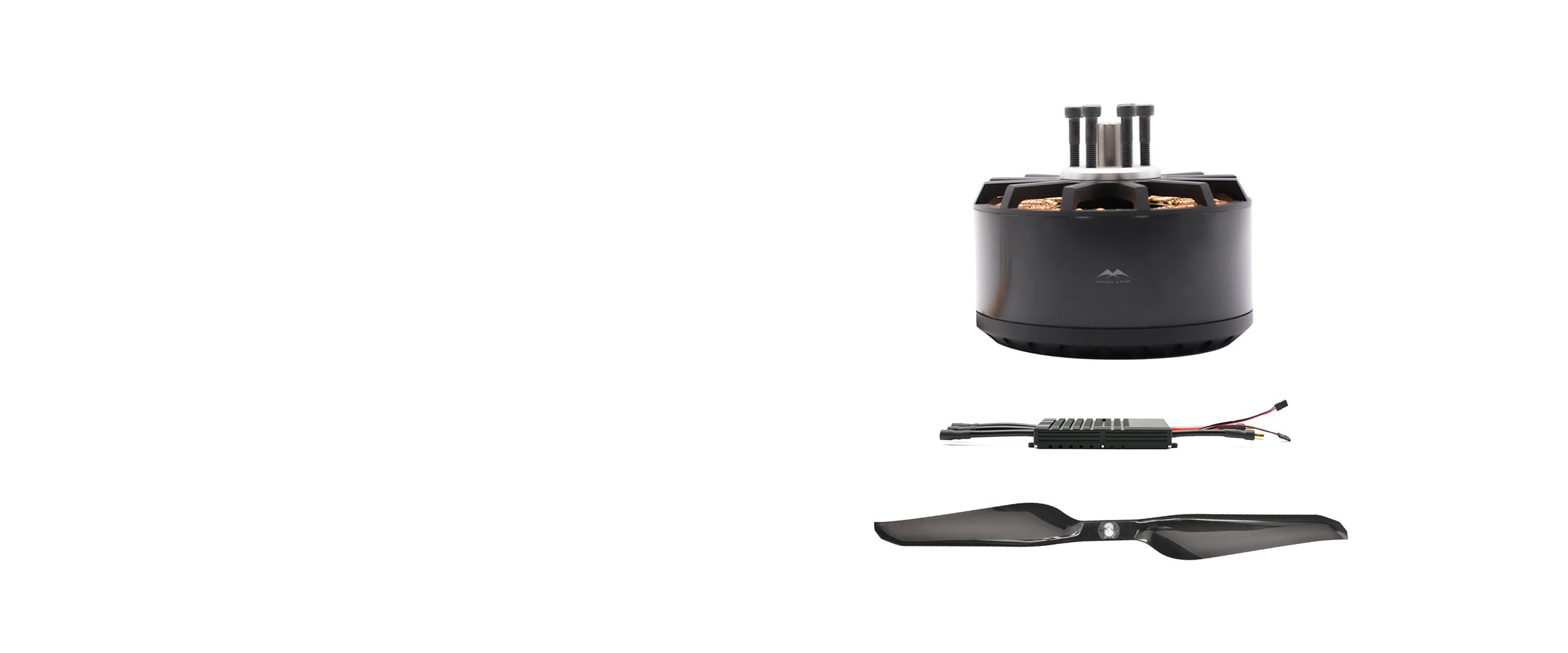

40KG Drone Propulsion System With 12070 Electric Motor 24S 150A ESC 36 Inch Propeller
The 12070 40kg thrust propulsion system is a reliable choice for heavy-lift drones. Optimized for performance, it pairs with a 36-inch propeller and a 24S 150A motor controller for precise control and efficient power delivery. With up to 40kg of thrust, it delivers strong, consistent power for demanding aerial applications.
40 KG
Max. Thrust
25 N·m
Max. Torque
Application
Multi rotor drone
Propulsion system
40KG

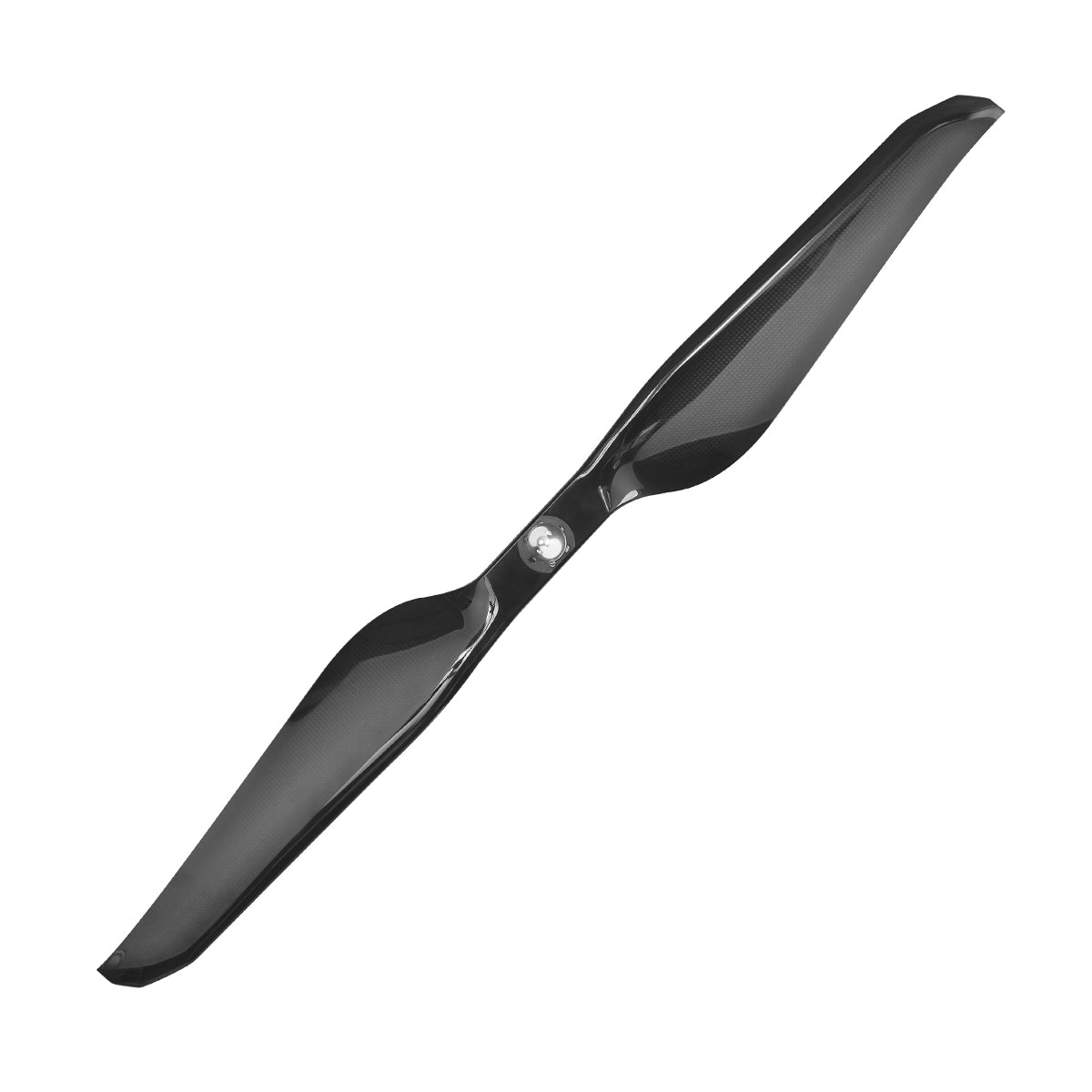

36 Inch CW CCW Carbon Fiber Propeller for BLDC Motor Heavy Lift Drone
Sale price$135.00
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
Dimension
ø120 x 70mm
KV
80
Max. Thrust
40KG
Max. Torque
16N·m
Max. RPM
6400
Suggested ESC
24S 150A
Suggested Propeller
36 inch
Max. Current
112A
Max. Voltage
79V
Max. Power
8.5KW
Li-Po
12S-24S
Hall Sensor
Optional
Motor Weight
2.4kg
ESC Weight
0.45kg
Propeller Weight
0.2kg
