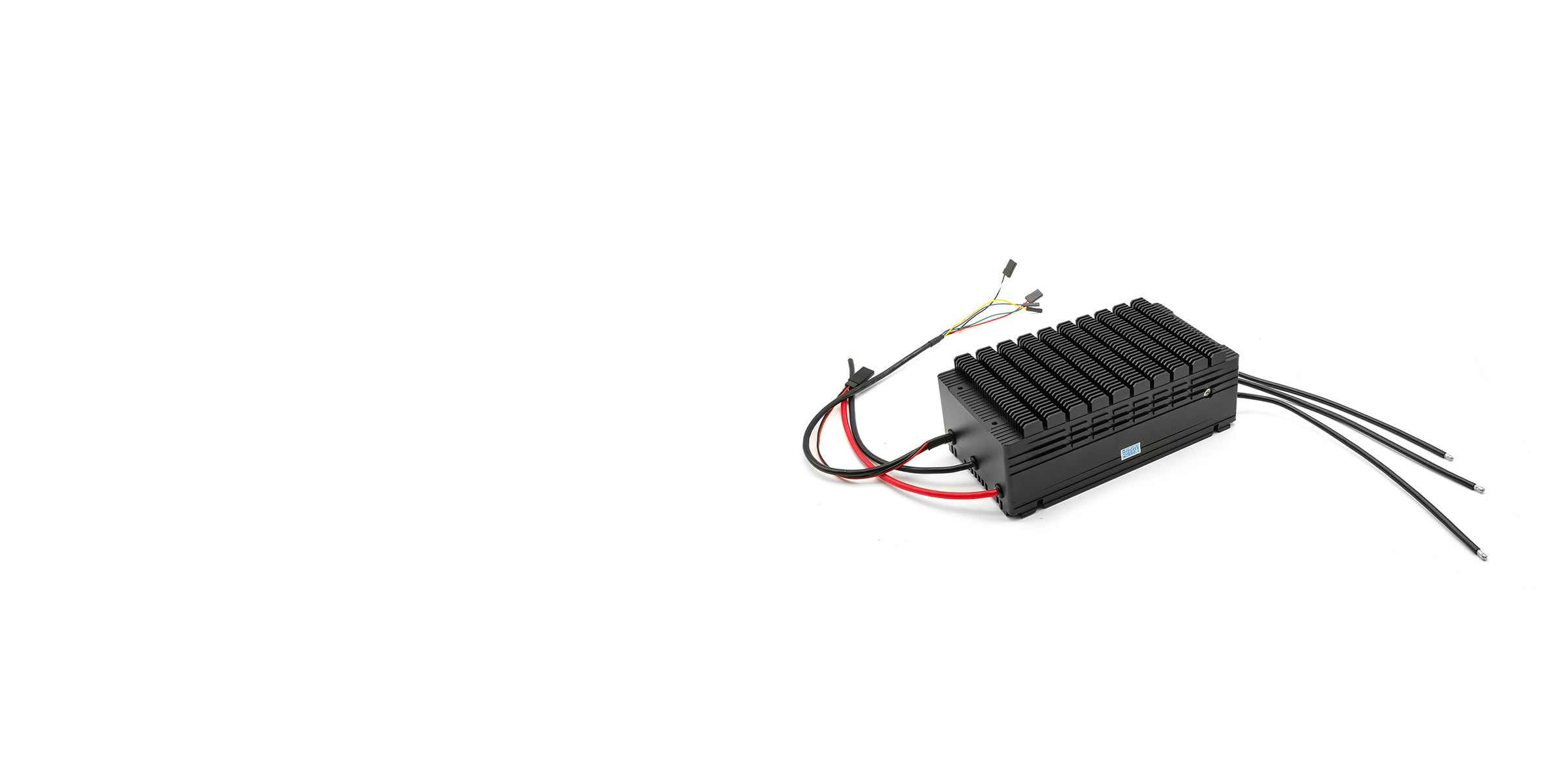

400V 100A High Voltage Versatile ESC PMW Motor Controller for Big Drone Heavy Lift Drone
Introducing 96S 100A ESC for heavy lift drone. Launch from idle to dominance in a mind-blowing 0.6 seconds. Dual-channel control with CAN bus prioritizes precision, translating your every command. Unleash peak efficiency, rock-solid RPM control, and real-time data with synchronous regeneration - all through CAN bus.
Rapid response
Elevate drone performance with our algorithm, ensuring swift response from idle to full speed in 0.60 seconds.
Seamless online upgrades
Effortlessly update to the latest firmware with our ESC's CAN bus support for rapid online upgrades.
Cooler temperature
Optimize software to lower temperatures by over 30%, featuring a patented copper heat-conduction design for enhanced cooling efficiency.
Energy efficient
Experience superior drive efficiency with synchronous regenerative technology, automatically recovering energy during motor deceleration.
Real-time communication
Enhance control with real-time feedback on throttle output, voltage, current, motor speed, and temperature through our CAN communication interface.
Robust multi-protection
Ensure a secure power system with our ESC's comprehensive protection features, from infinite restart to temperature and throttle signal loss protection.
Compatibility
Tech Specs
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a ESC that work the best for you.
179mm x 99.6mm x 66mm
5V / 300mA
50Hz - 500Hz
8AWG
48S-96S
3.3V / 5V
IPX4
100A
1050us - 1940us
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-20°C ~ 65°C
986g
