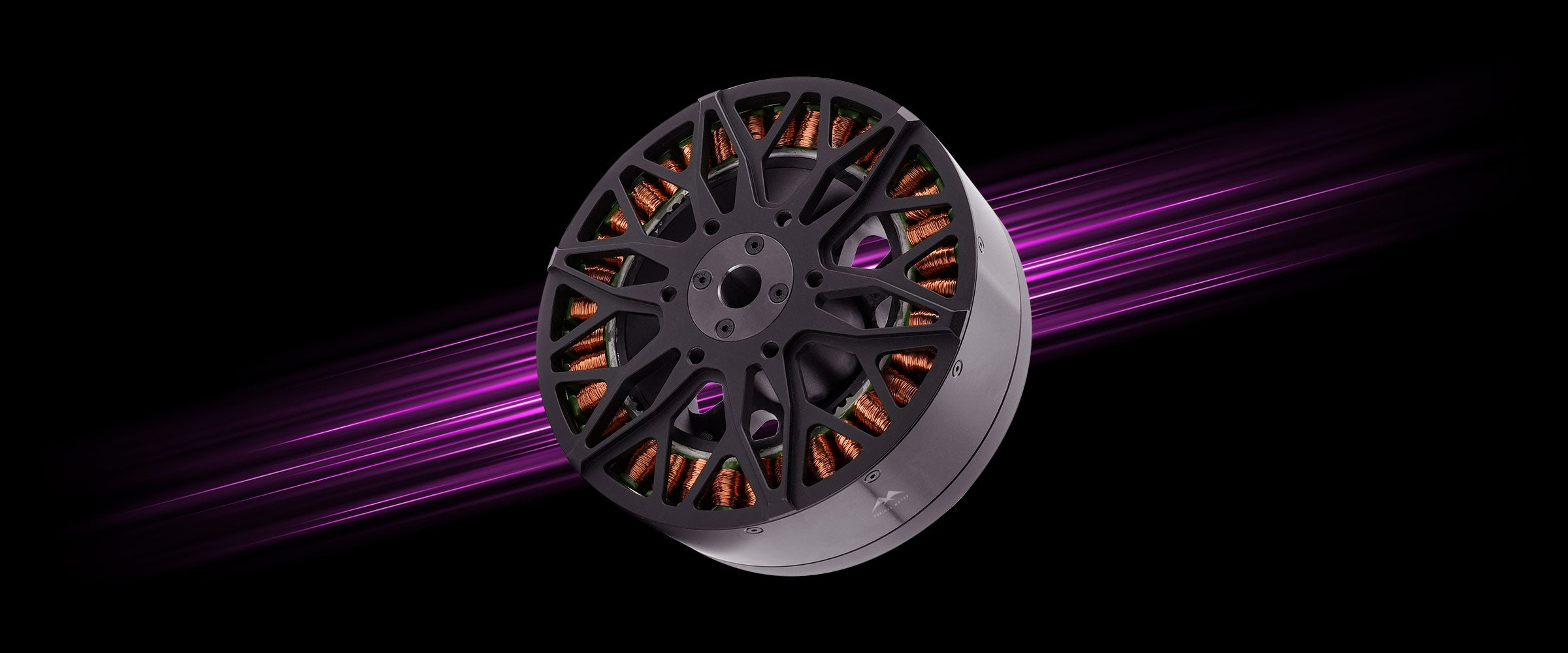

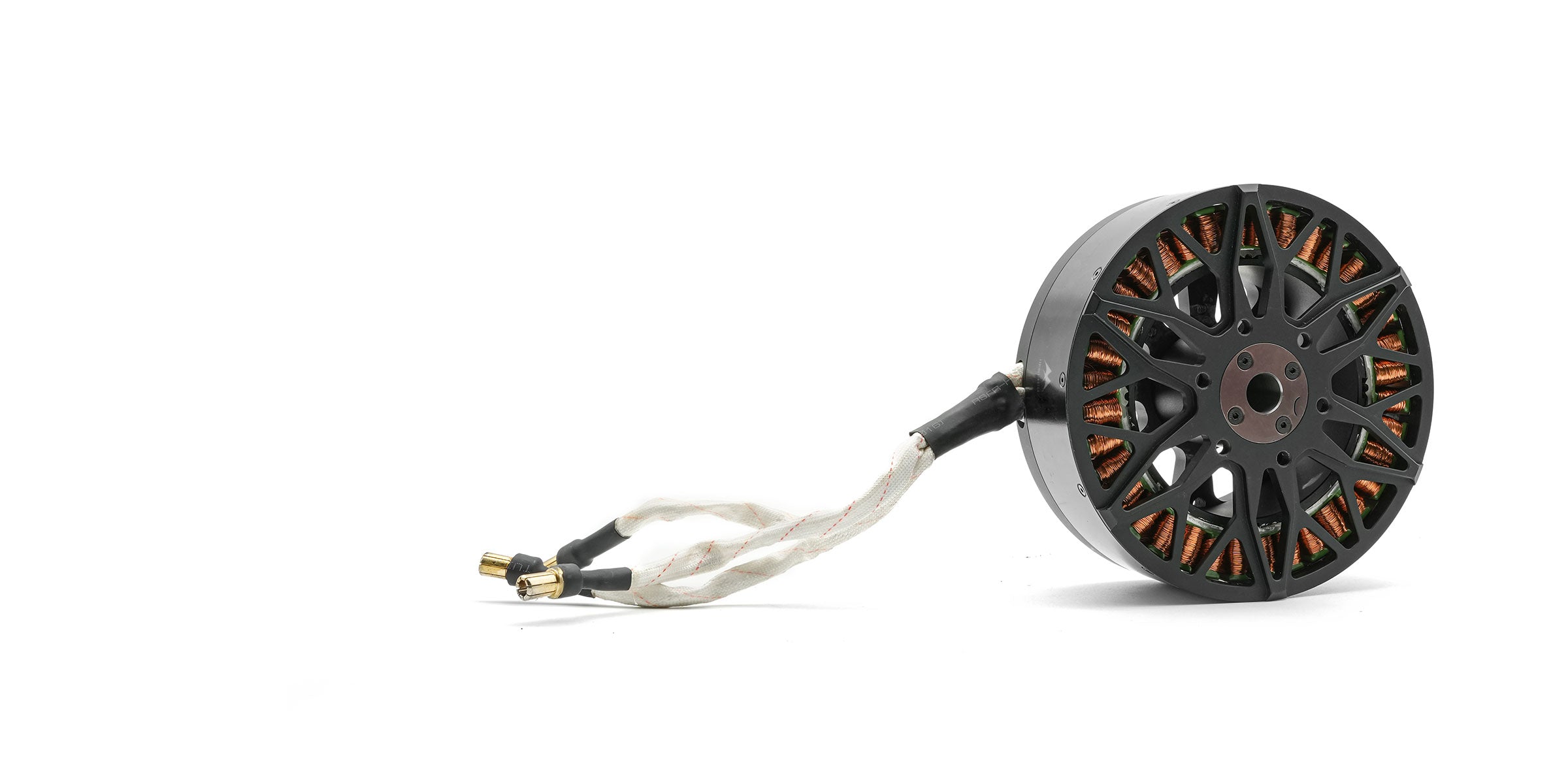

15060S Lightweight and Powerful Electric Brushless DC Motor for Paramotor
The 15060S motor is purpose-built for electric paramotor systems, delivering up to 58kg of thrust when paired with a 45-inch propeller and a 24S 200A motor controller. Weighing just 2.5kg, it features a compact and lightweight design that maximizes flight efficiency without compromising power.
Application 1/2
58KG
Max. Thrust
31N·m
Max. Torque
100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application
Paraglider
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
ø154 x 60mm
72 / customized
58KG
31N·m
3588
24S 200A
45 inch
174A
89V
15KW
14S-24S
Optional
2.5KG
