190KG

240110 190KG Thrust Propulsion System for Heavy Lift Drone Unmanned Aircraft Dig Drone with ESC and Propeller

$2,099.00

KV: 10

10 Customized

Quantity:

Furious Motor 240110 190KG Thrust Propulsion System for Heavy Lift Drone Unmanned Aircraft Dig Drone with ESC and Propeller

$2,099.00

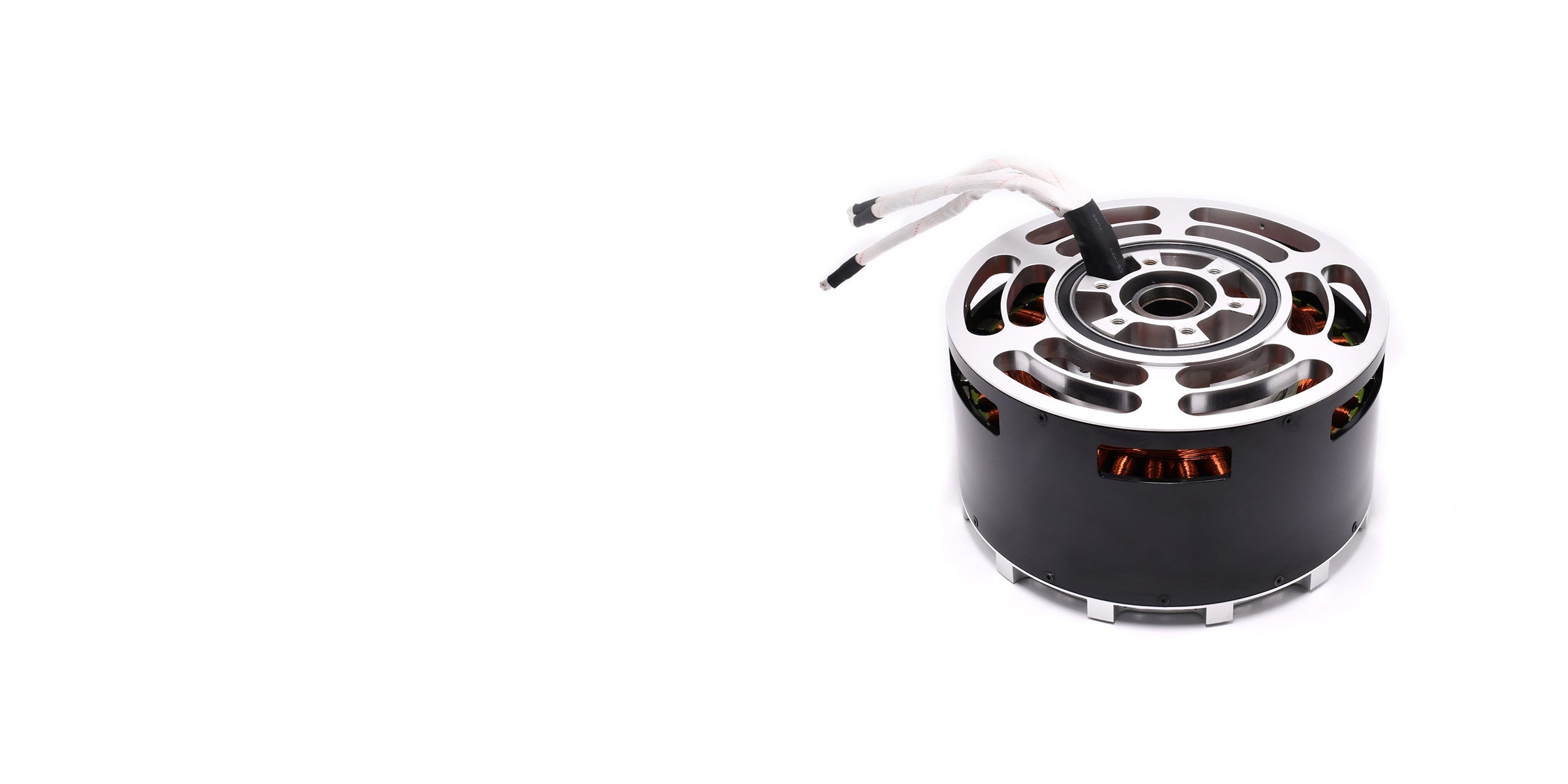

The 240110 is a BLDC motor designed for heavy lift drones. It is compatible with X-72 propeller and a 400V 160A ESC, ensuring a maximum thrust of 190KG.

190KG

Max. Thrust

173N·m

Max. Torque

100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.

World-renowned bearing, ensuring trouble-free service over 1800 hours.

Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.

0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.

Propulsion system

190KG

240110 190KG Thrust Propulsion System for Heavy Lift Drone Unmanned Aircraft Dig Drone with ESC and Propeller

$2,099.00

400V 160A High Voltage Generative Breaking ESC for Heavy Lift Multi Rotor Drone BLDC Motor

$2,898.00

72 Inch 2-Blade Low Noise CW CCW Carbon Fiber Propeller for VTOL Drone

$666.00

Tech Specs

Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.

Dimension

ø240mm x 110mm

KV

10 / customized

Max. Thrust

190KG

Max. Torque

173N·m

Max. RPM

2657

Suggested ESC

400V - 160A

Suggested Propeller

X-72

Max. Current

127A

Max. Voltage

400V

Max. Power

42KW

Li-Po

48S-96S

Hall Sensor

Optional

Weight

12.8KG
