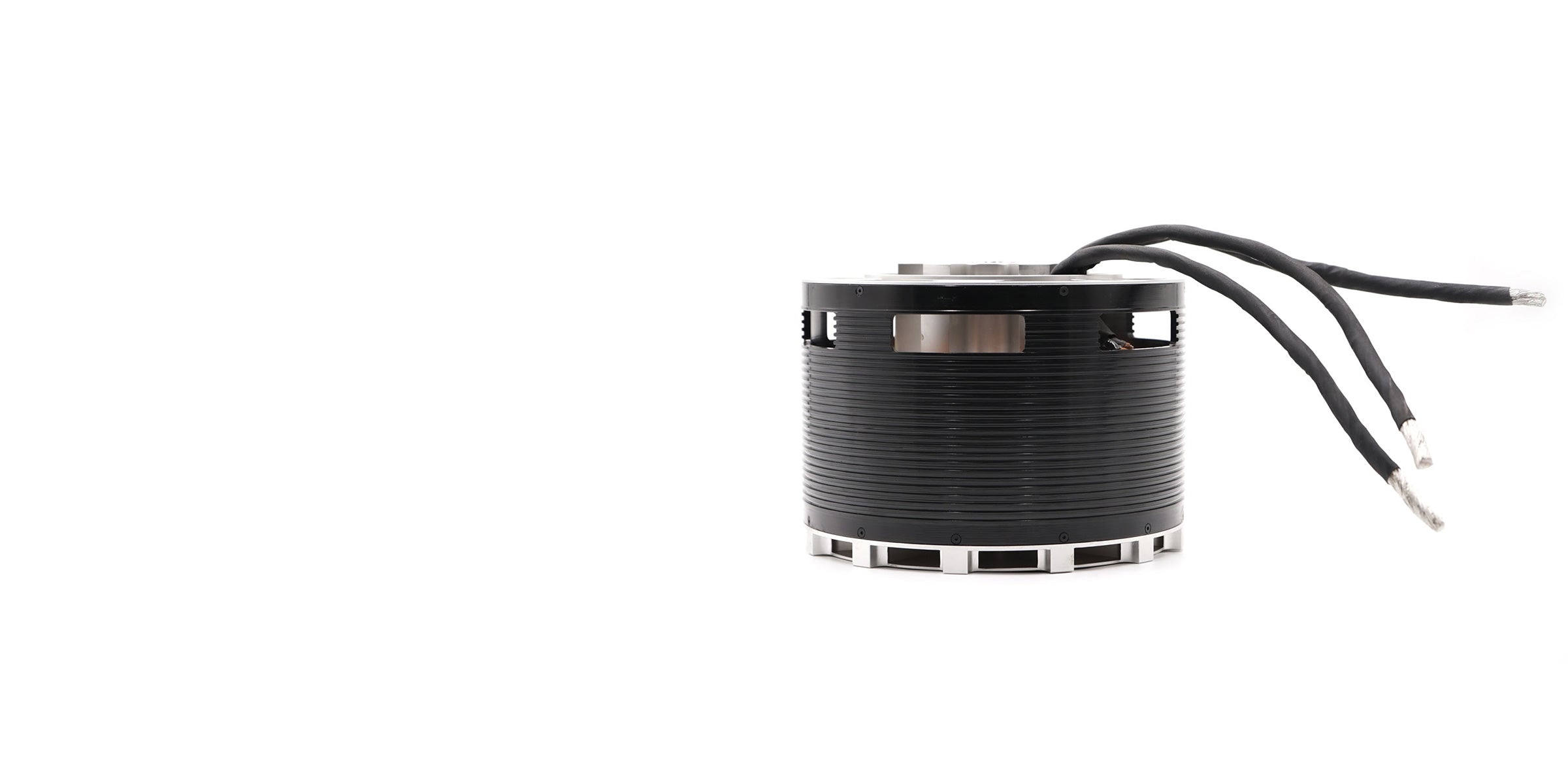

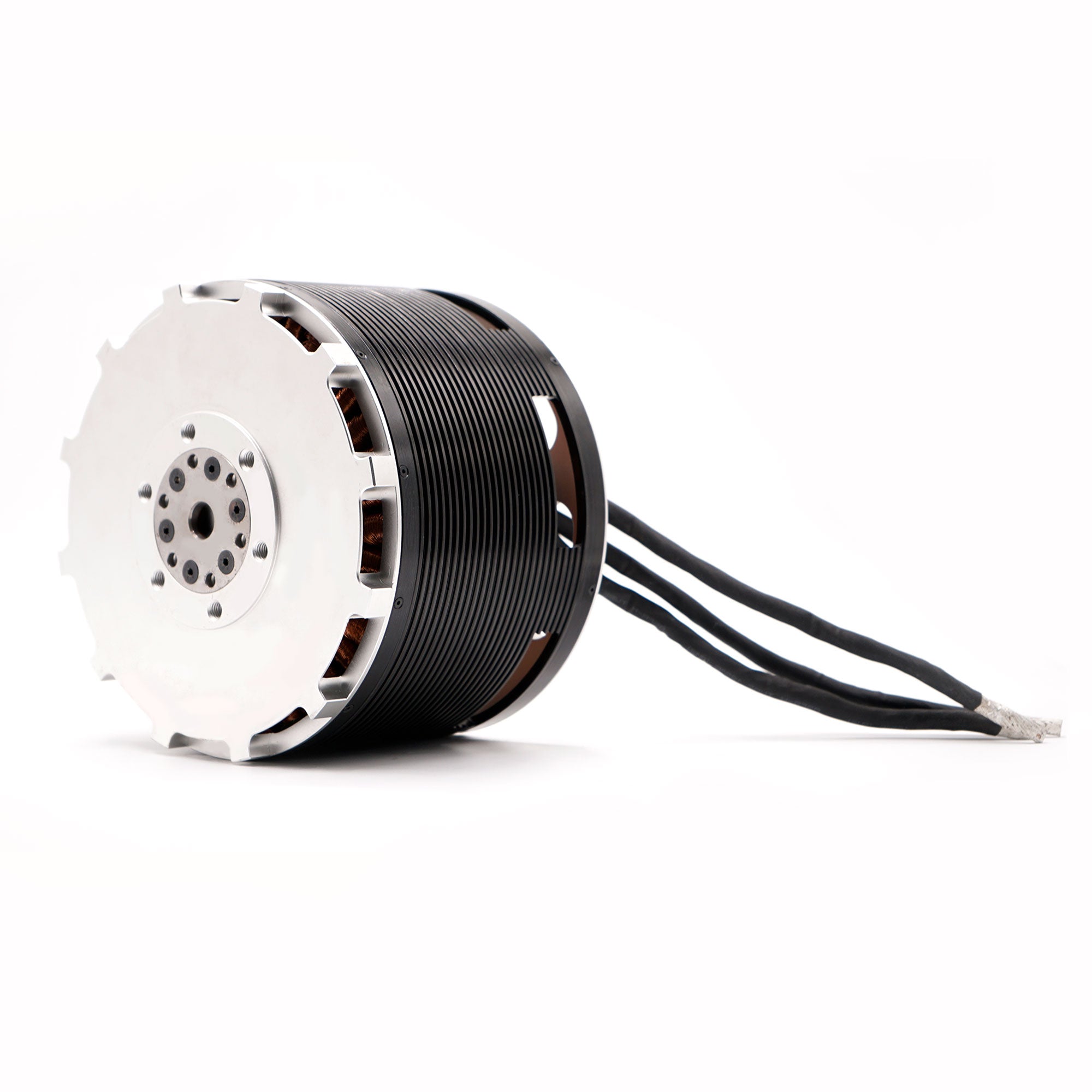

202150 155KG Thrust Big Brushless Motor for Multi Rotor Drone Heavy Lift Drone and Unmanned Aircraft
The 202150 motor is a high-performance brushless BLDC motor designed for unmanned aircraft, heavy lift drones. With compatibility for 63 inch propeller and a 400V 160A ESC, it delivers powerful thrust of 170KG.
155KG
Max. Thrust
120N·m
Max. Torque

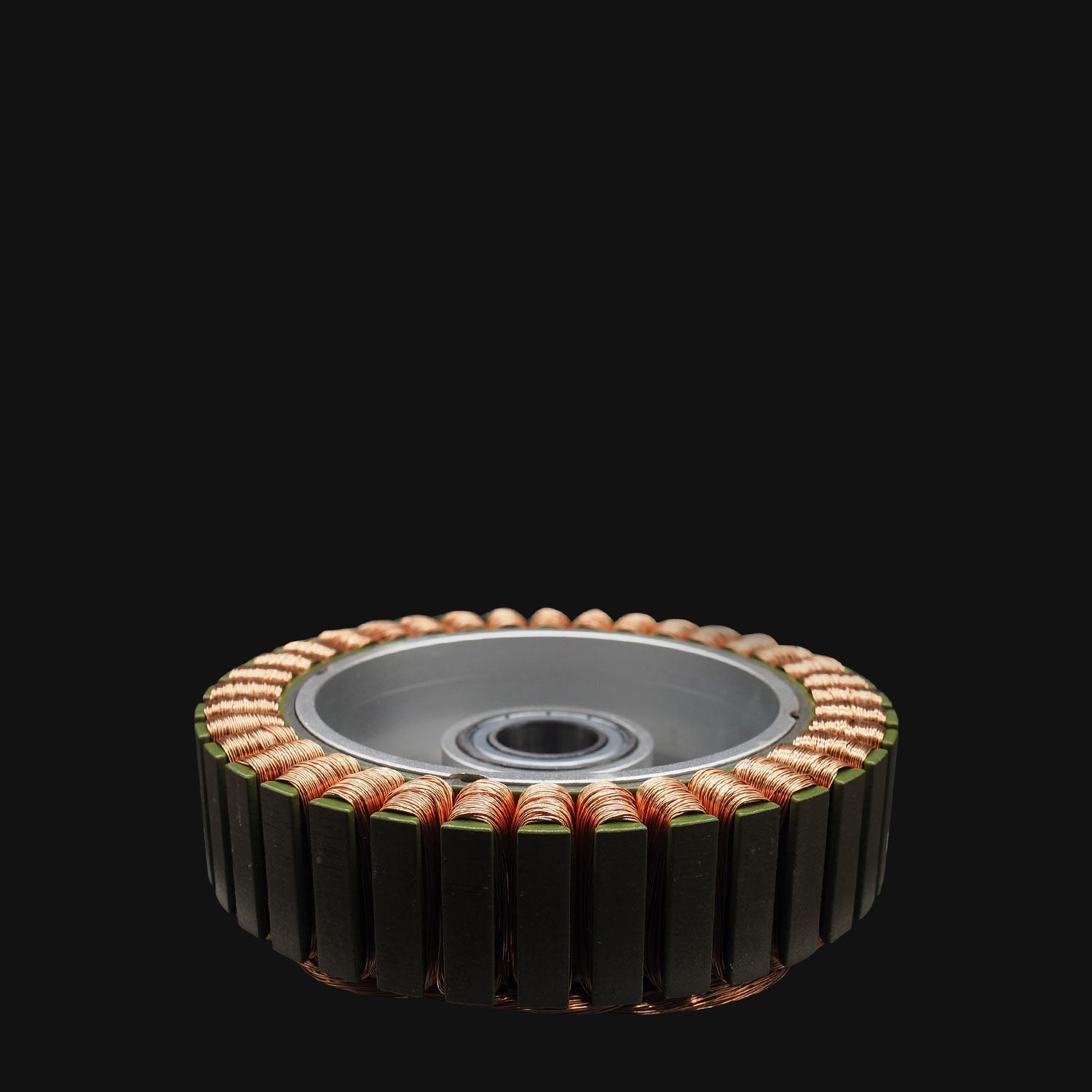

100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application
Big UAV
Propulsion system
Tech Specs
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
ø202mm x 150mm
10 / customized
155KG
120N·m
3500
400V 160A
63 inch
150A
380V
53KW
48S-96S
Optional
11.8KG
