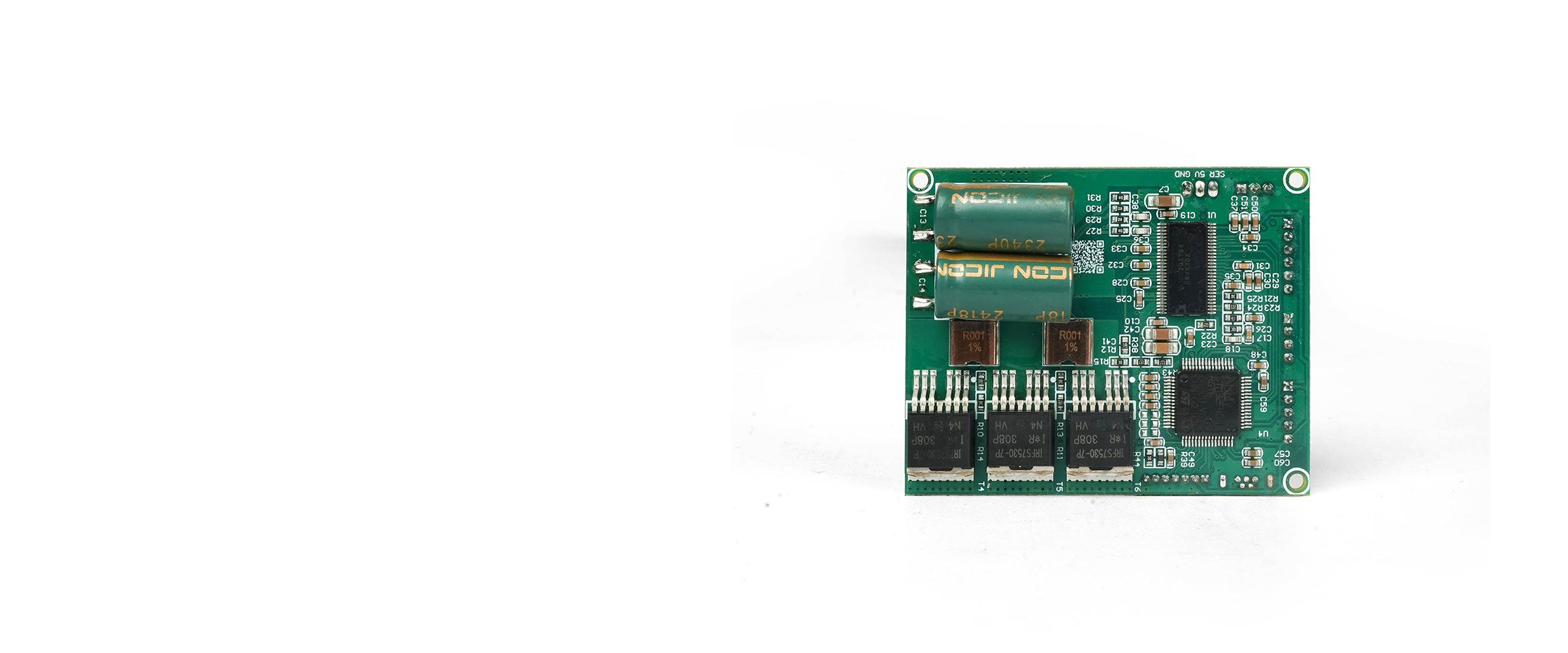

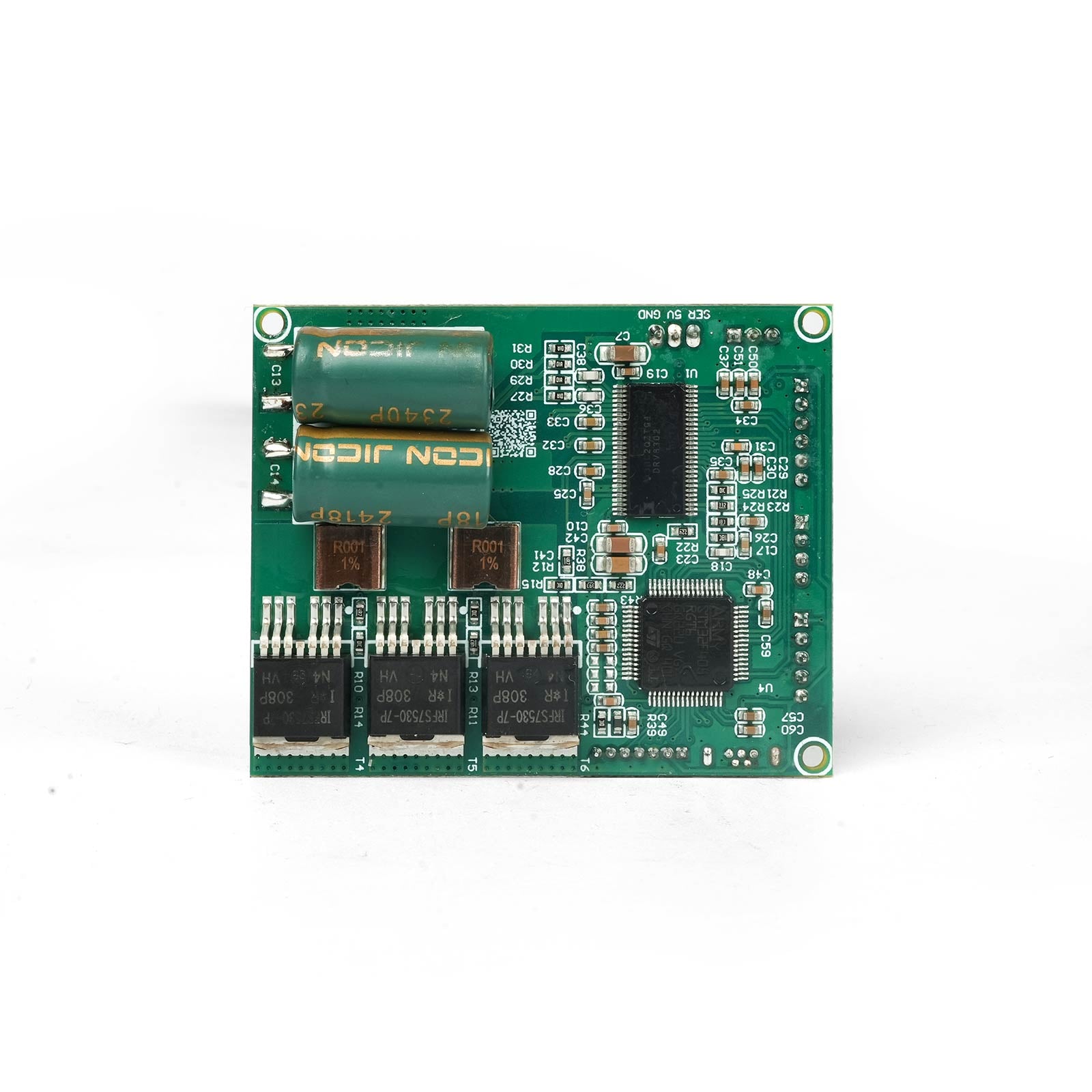

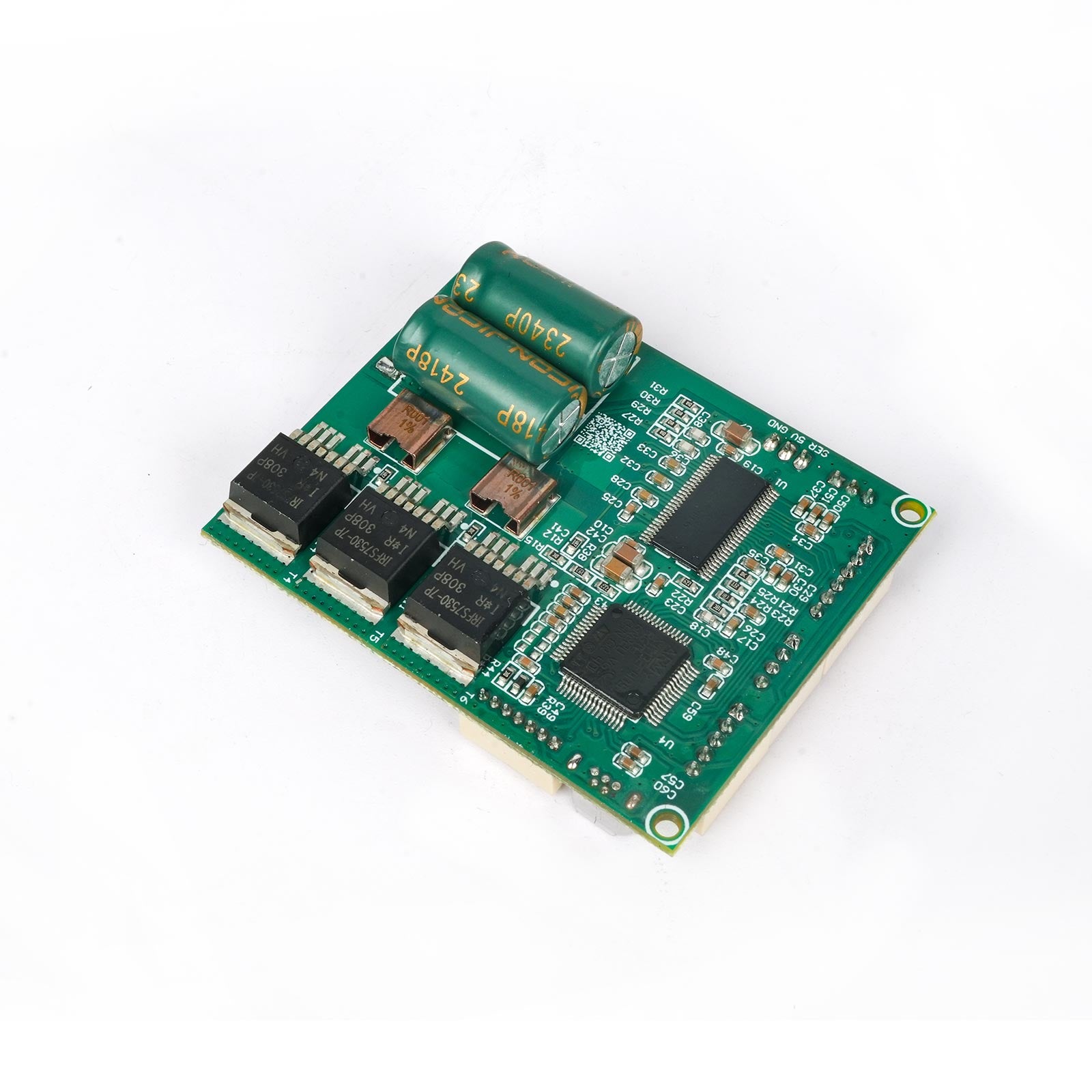

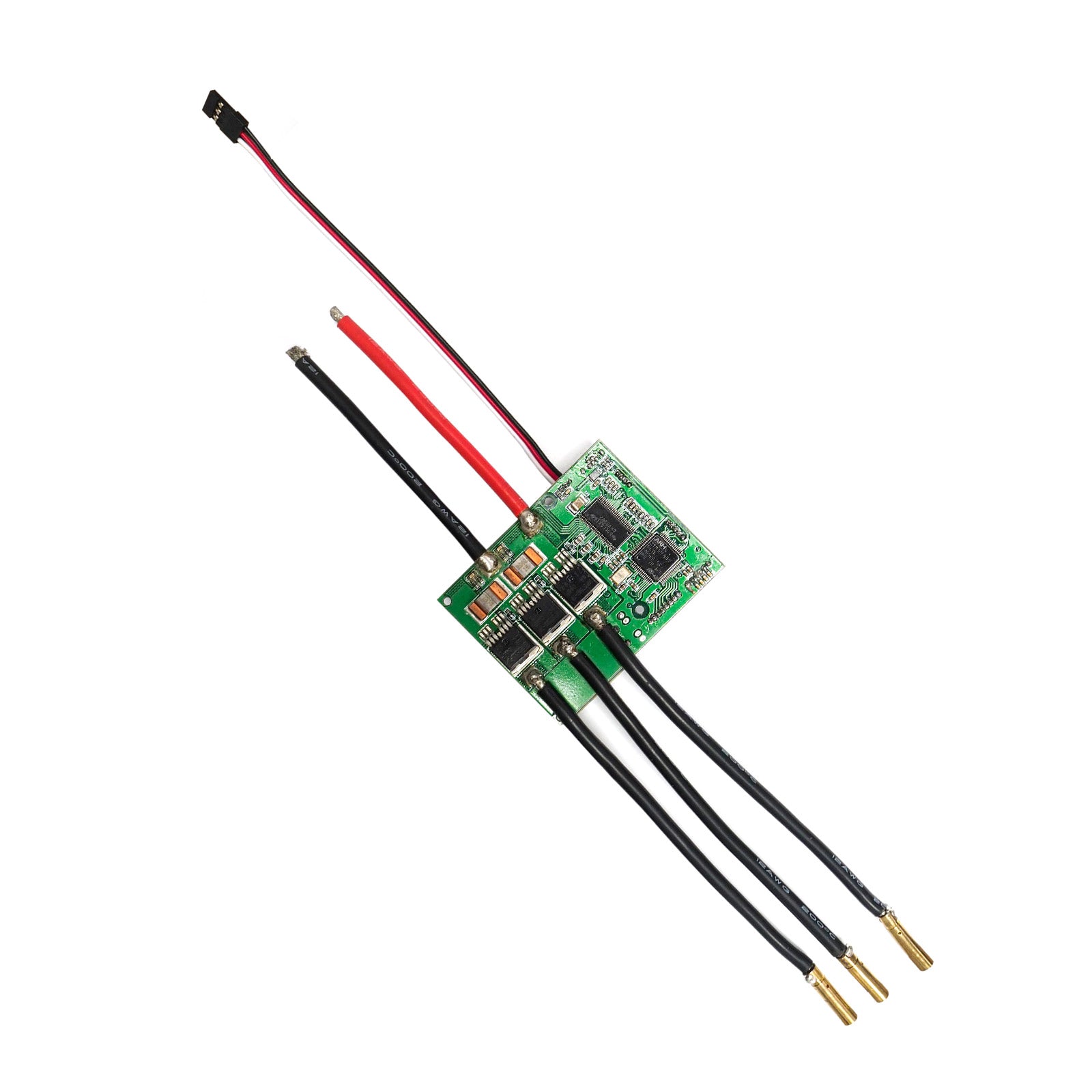

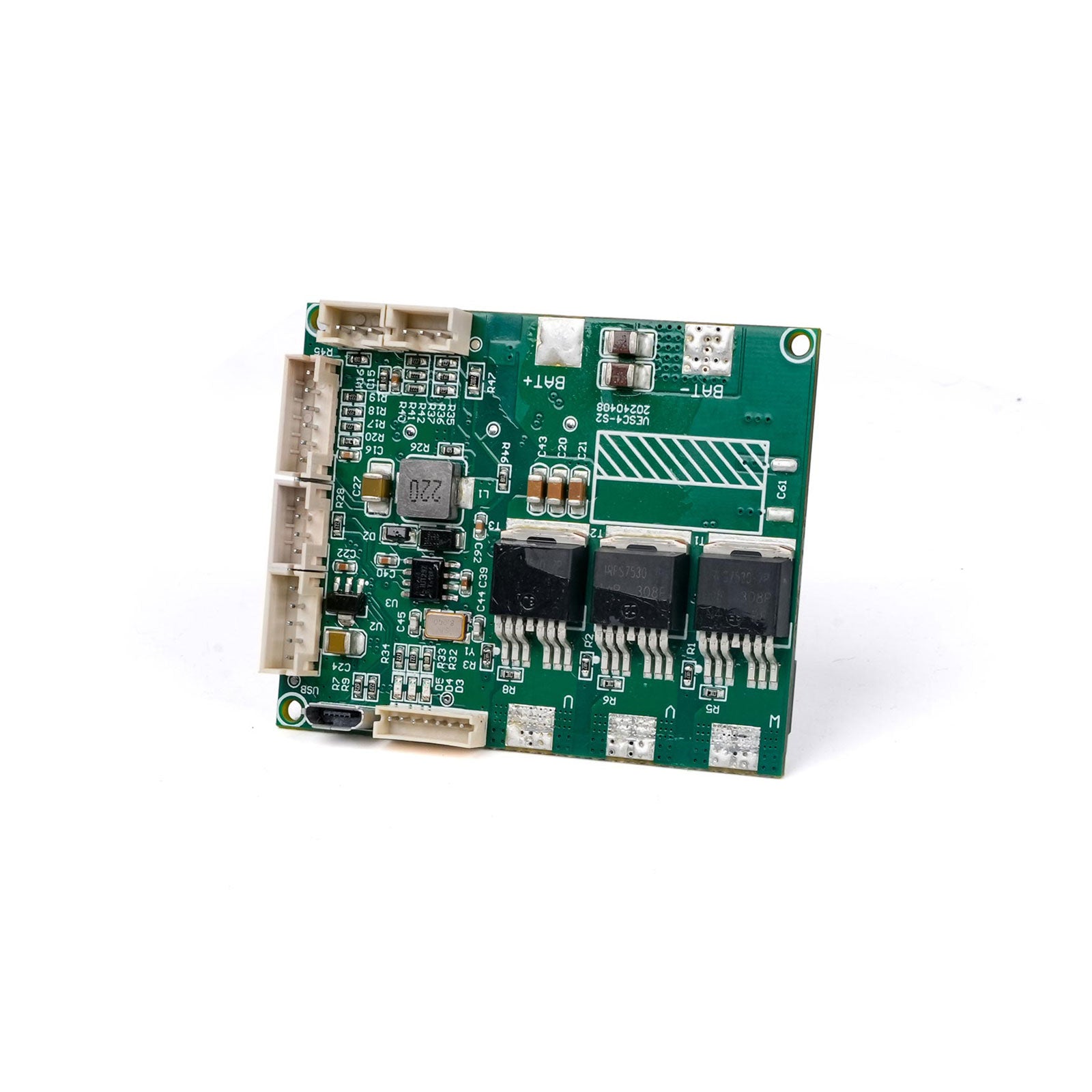

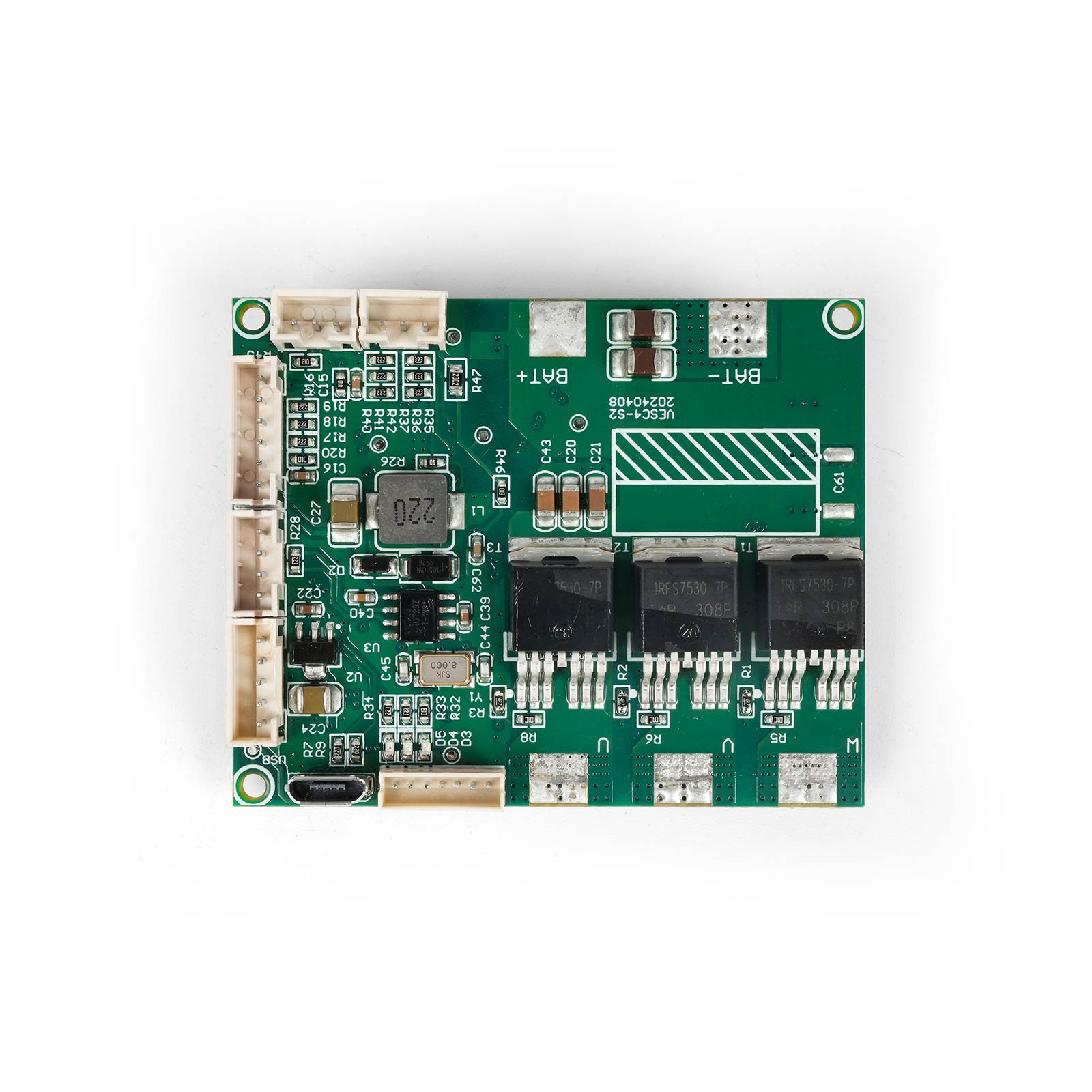

VESC 4 60V 50A Mini Motor Controller ESC for Electric Skateboard and DIY Project
The VESC 4 motor controller is a versatile, high-efficiency ESC designed for electric skateboards, underwater thrusters, power tools, and DIY projects. Based on reliable V4.20 hardware and running the latest firmware, it supports 3–13S LiPo batteries, delivering up to 50A continuous and 150A peak current.
High power output
Delivering 50A continuous and 150A peak current, the VESC 4 is built to handle demanding applications like electric skateboards, thrusters, and power tools with ease.
Wide voltage compatibility
Supports 3–13S LiPo batteries (8V–60V), giving users flexibility to work with a broad range of power setups across various projects.
Advanced customization options
Features like programmable voltage cutoff, software timing calibration, and reverse drive allow for detailed motor behavior tuning to match specific project needs.
Reliable integrated BEC
The built-in 5V 1.5A BEC provides stable power for external electronics like receivers, controllers, or sensors—no need for an external regulator.
Versatile control input
Compatible with PWM input, the controller integrates easily with a variety of remote systems, making it ideal for both DIY makers and advanced developers.
Versatile applications
Whether you’re building an electric skateboard, underwater thruster, robotic system, the VESC 4 is engineered to support a wide range of DIY and custom projects with reliable, flexible performance.
Tech Specs
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a ESC that work the best for you.
50mm x 62mm x 19mm
5V 1.5A
DC, BLDC, FOC
USB, CAN, UART, SPI, IIC
ABI, HALL, AS5047, AS5048A
PPM, ADC, NRF, UART
VESC TOOL
8V ~ 60V
50A
150A
Yes
Yes
Yes
Yes
Yes
33g (without wire)
