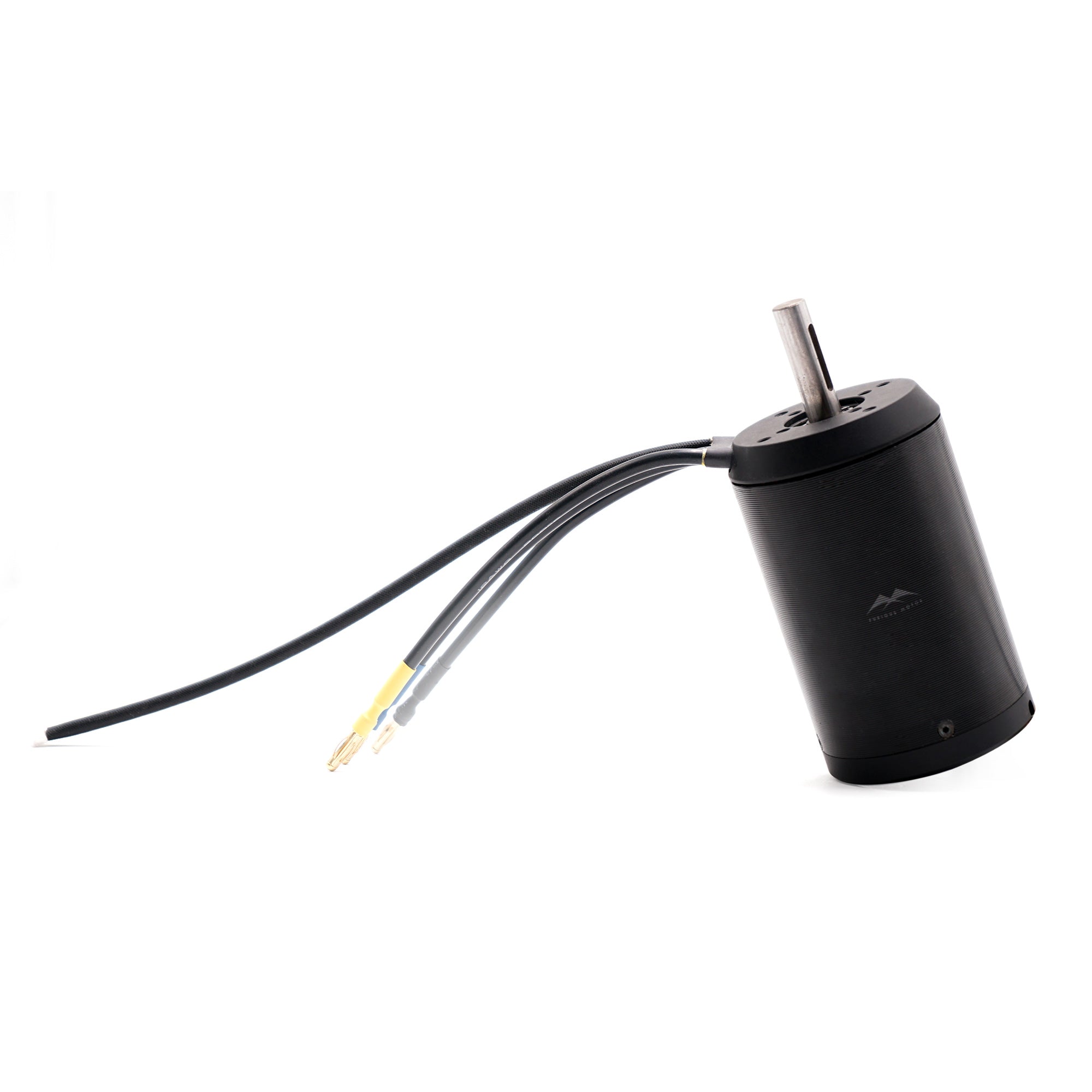

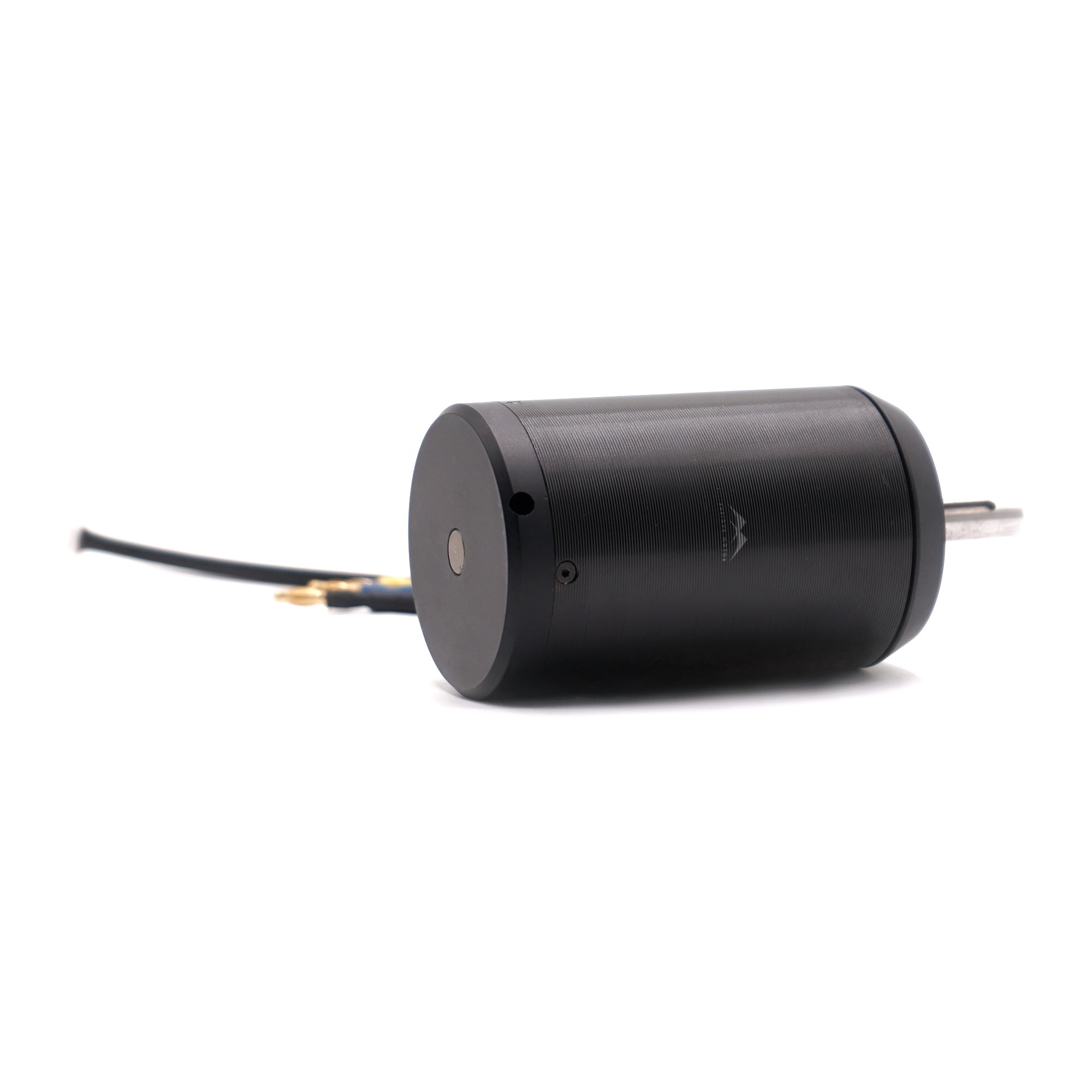

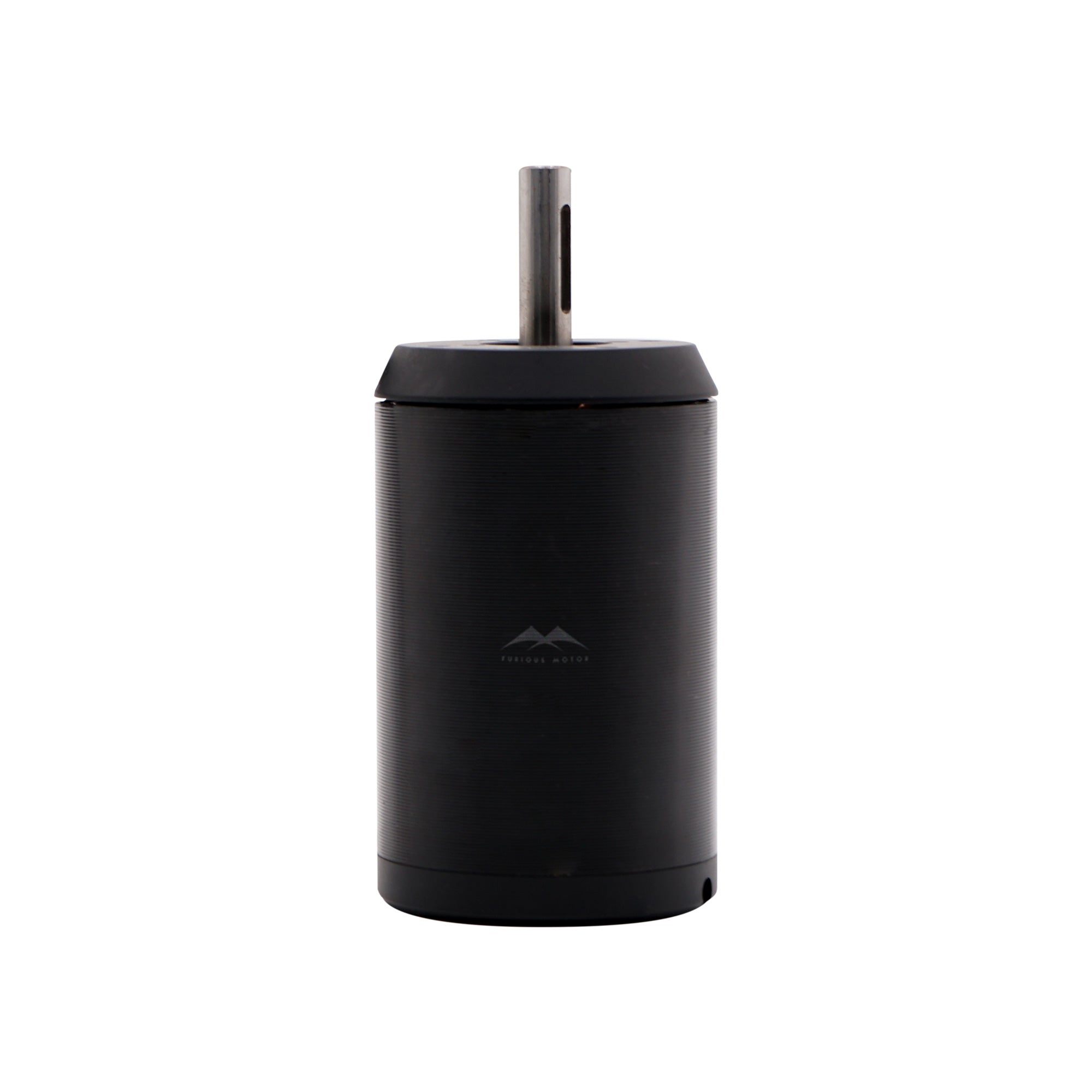

63100 Sensored Outrunner Brushless DC Motor for Delivery Robot ESK and Scooter
The 63100 brushless DC motor is a Hall sensor motor that provides precise and smooth control. It is ideal for DIY electric skateboards, electric scooters, and go-karts. The motor can be customized with varying shaft lengths and diameters to fit your specific needs.

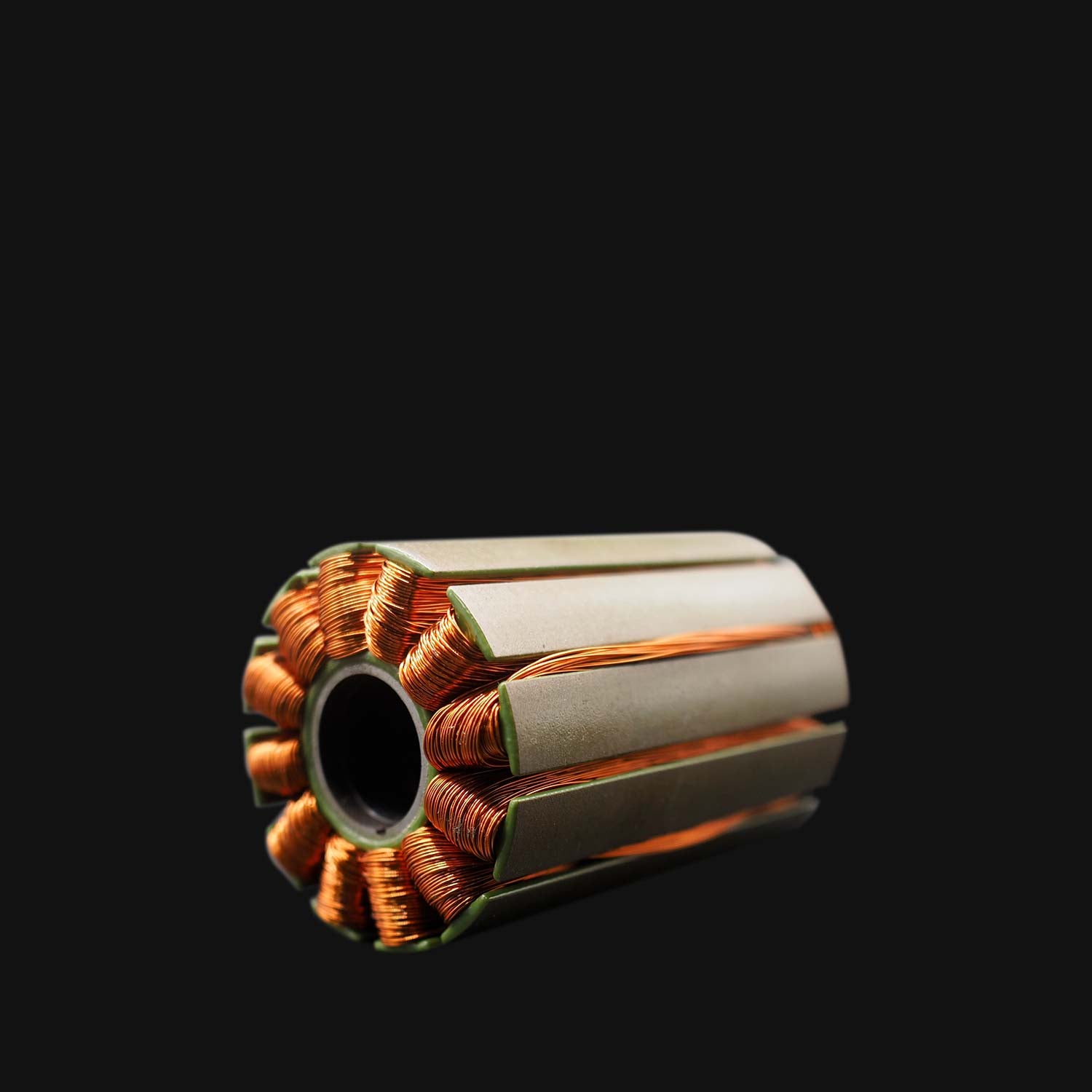

100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.

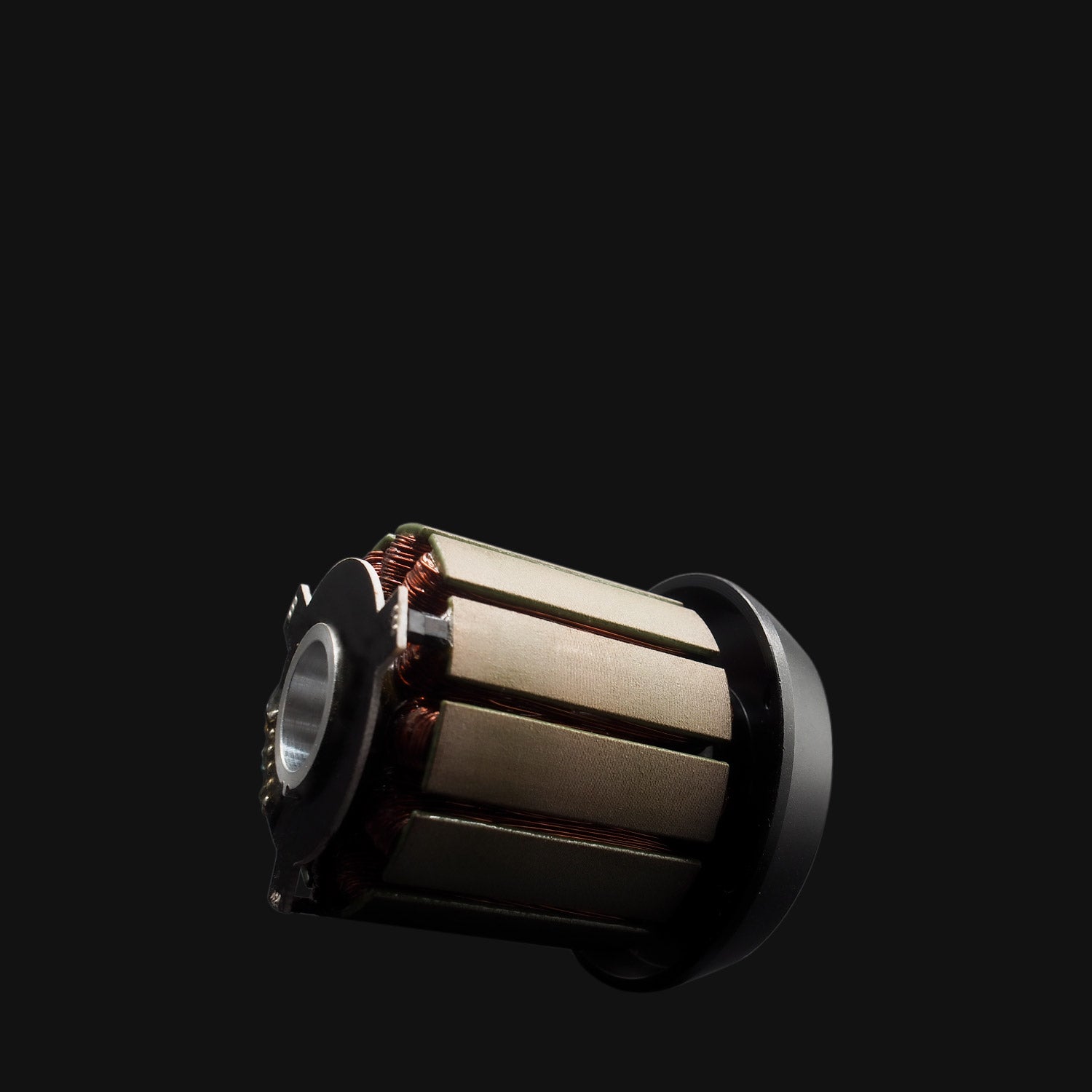

0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application
Off-road ESK
Application
Robot fight
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
63mm x 100mm
170 / customized
10N·m
VESC 6
100A
58V
5.5KW
4S-14S
Optional
10mm / customized
1.4KG
