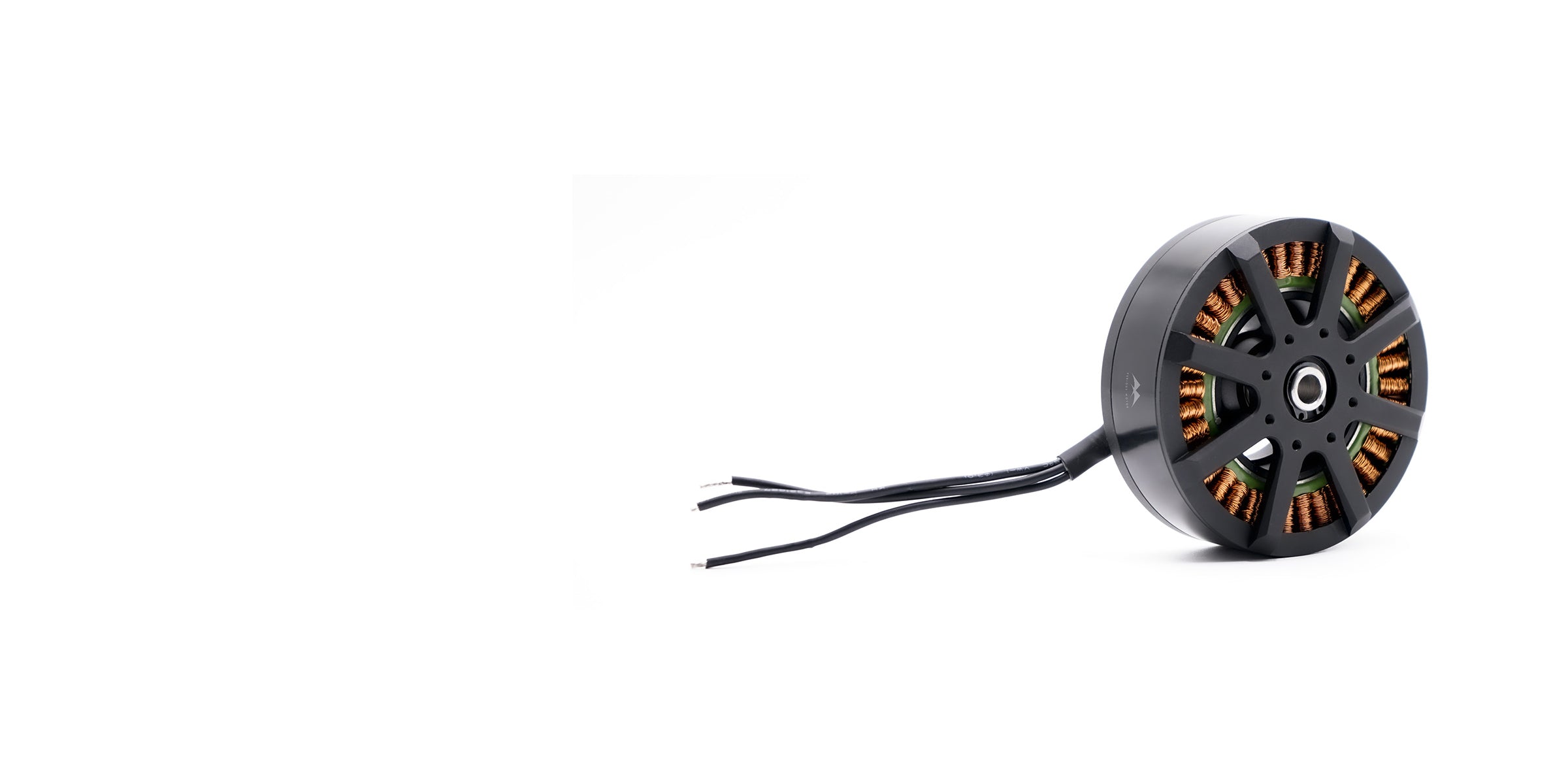

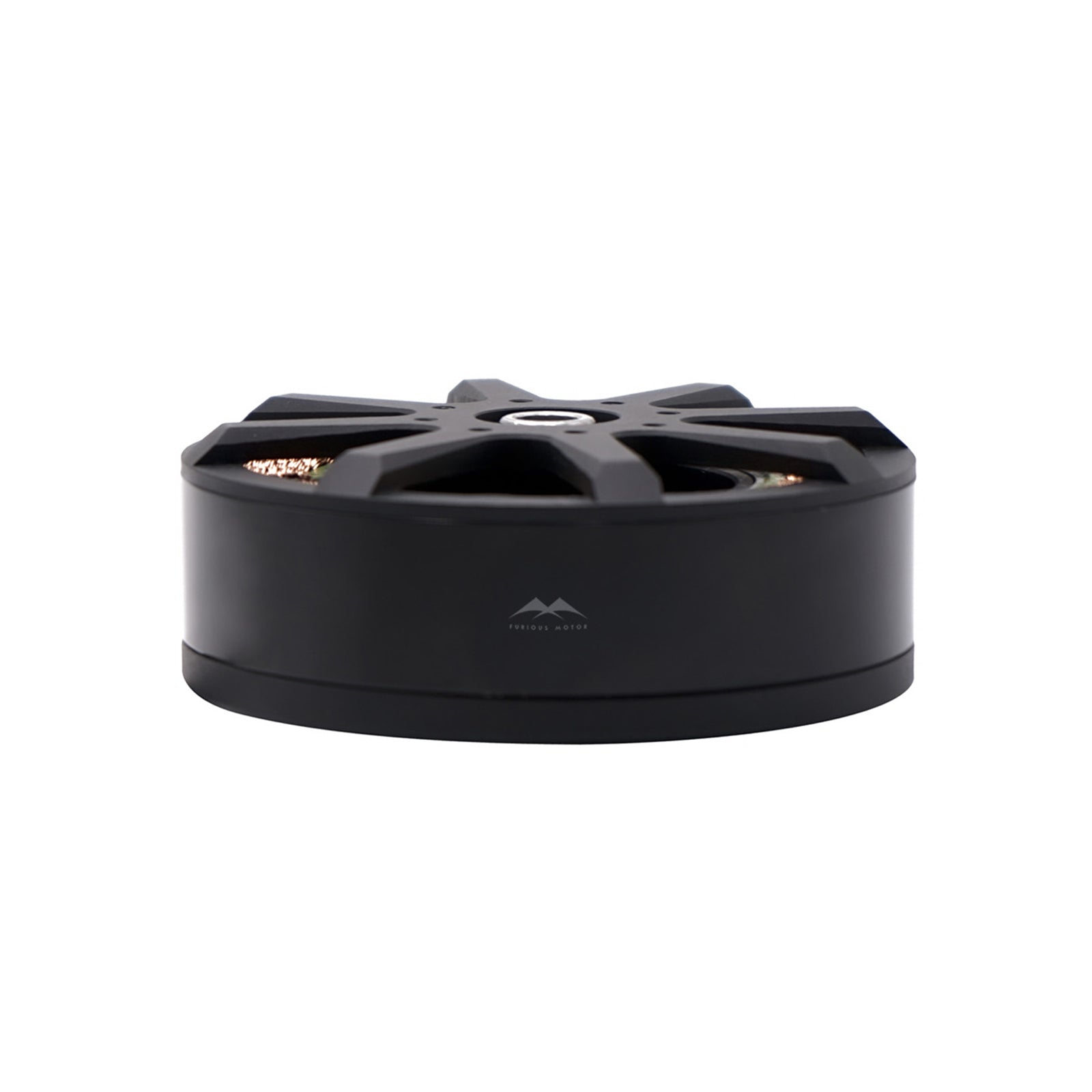

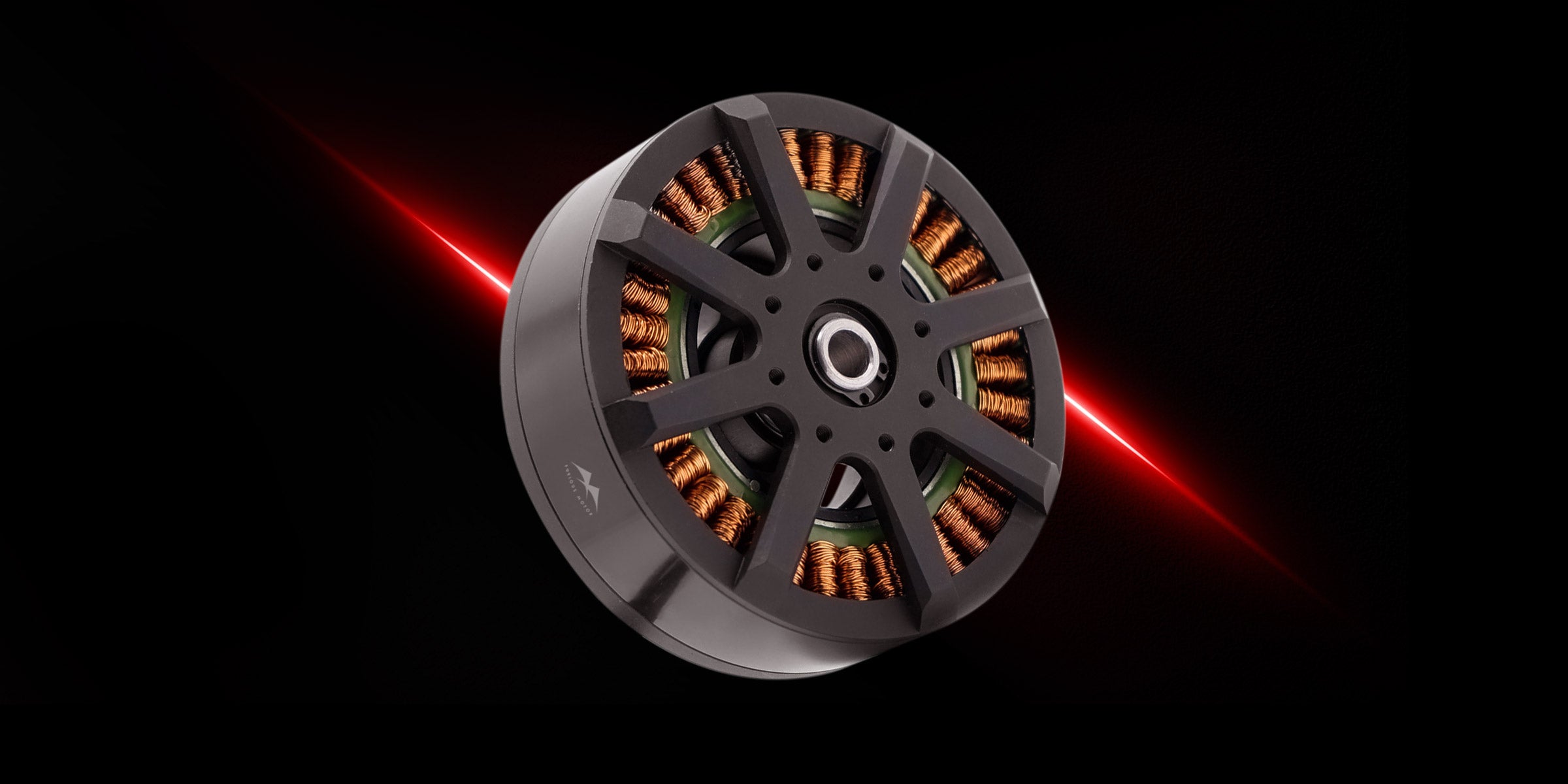

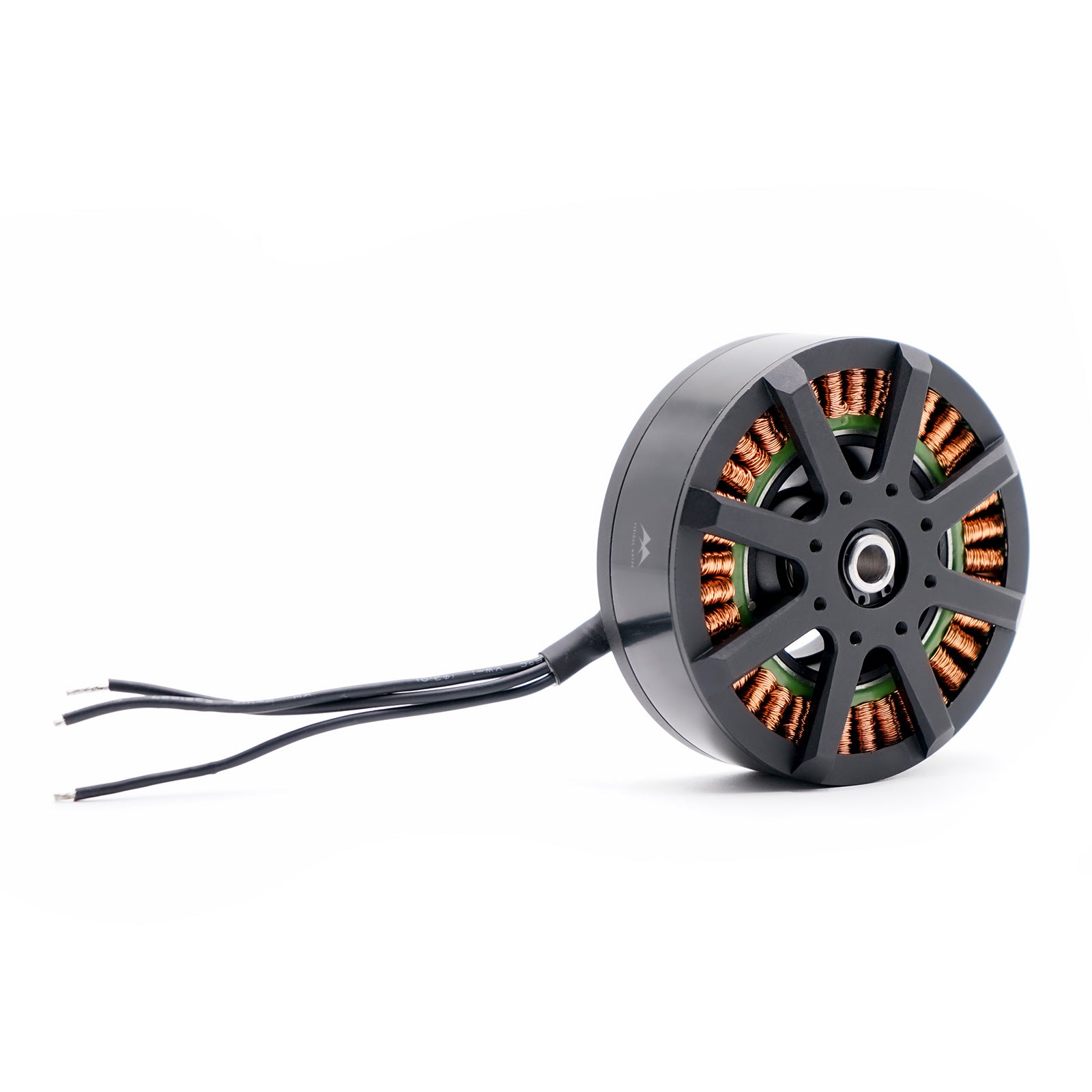

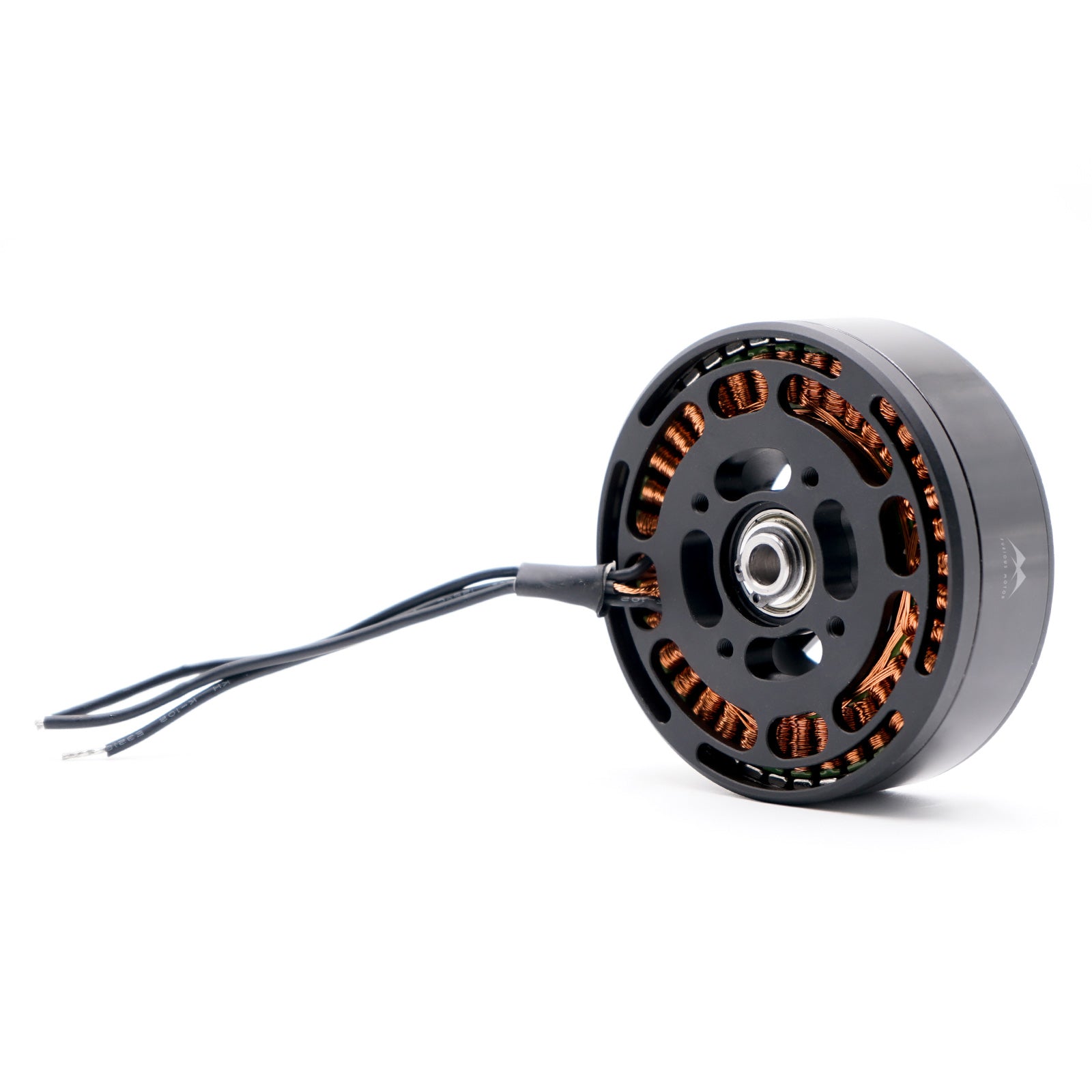

8318 Lightweight 13KG Thrust BLDC Motor for Mapping Drone Agricultural Drone Multi Rotor Drone
The 8318 brushless DC motor is an outstanding choice for DIY multi-rotor drones, agricultural drones, and UAV drones. This motor features a lightweight and compact design that makes it an excellent option for any drone application. With its powerful 13.5kg thrust, the 8318 BLDC motor delivers exceptional performance.
13.5 KG
Max. Thrust
5 Nm
Max. Torque
100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Don't settle for standard. Our comprehensive customization service allows you to personalize your motor's KV, shaft, color, and size.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application
Agricultural Drone
Application
Camera Drone
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
83mm x 18mm
100 / customized
13.5KG
5N·m
4900
12S 80A
31 inch
65A
49V
2.7KW
3S-12S
Optional
0.62KG
