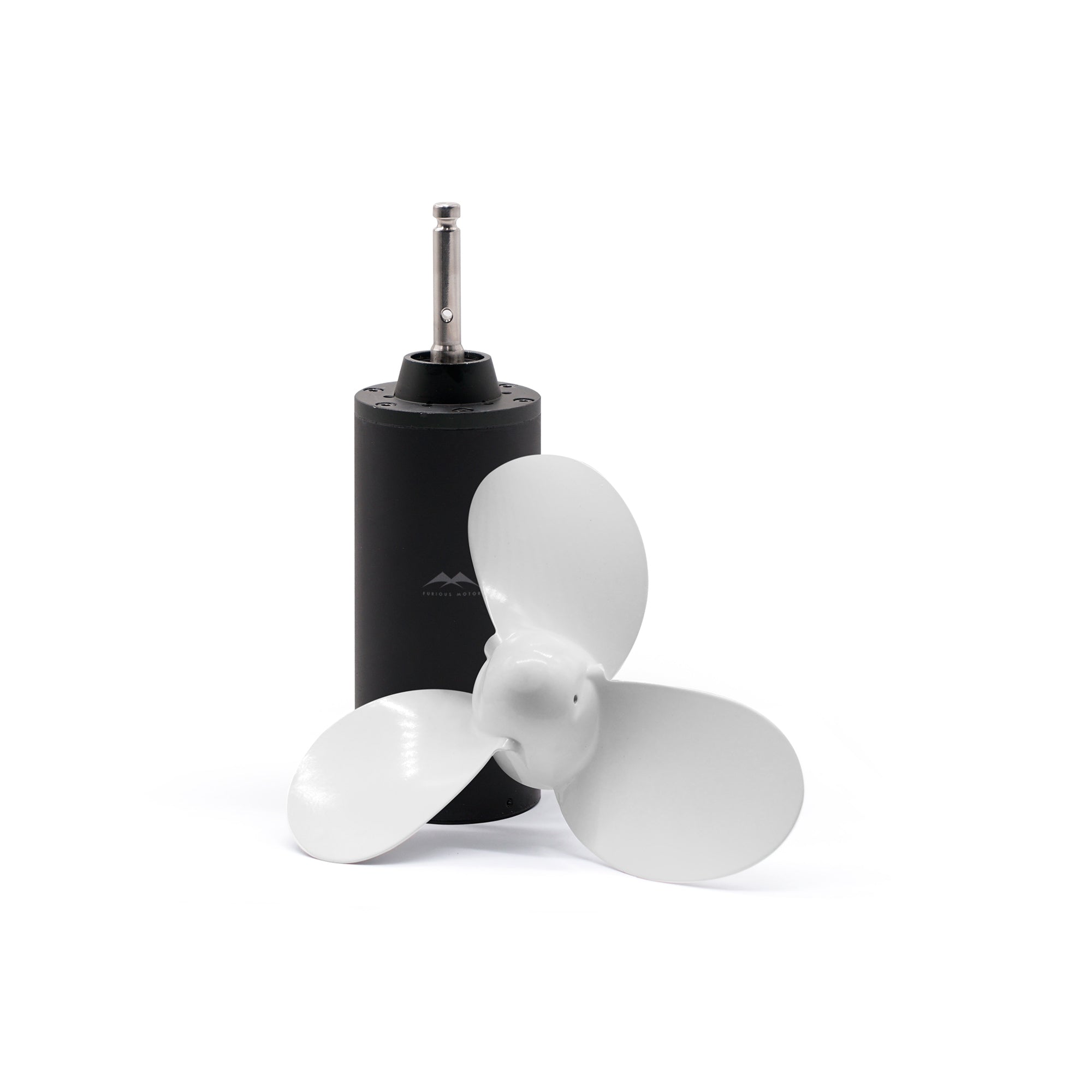

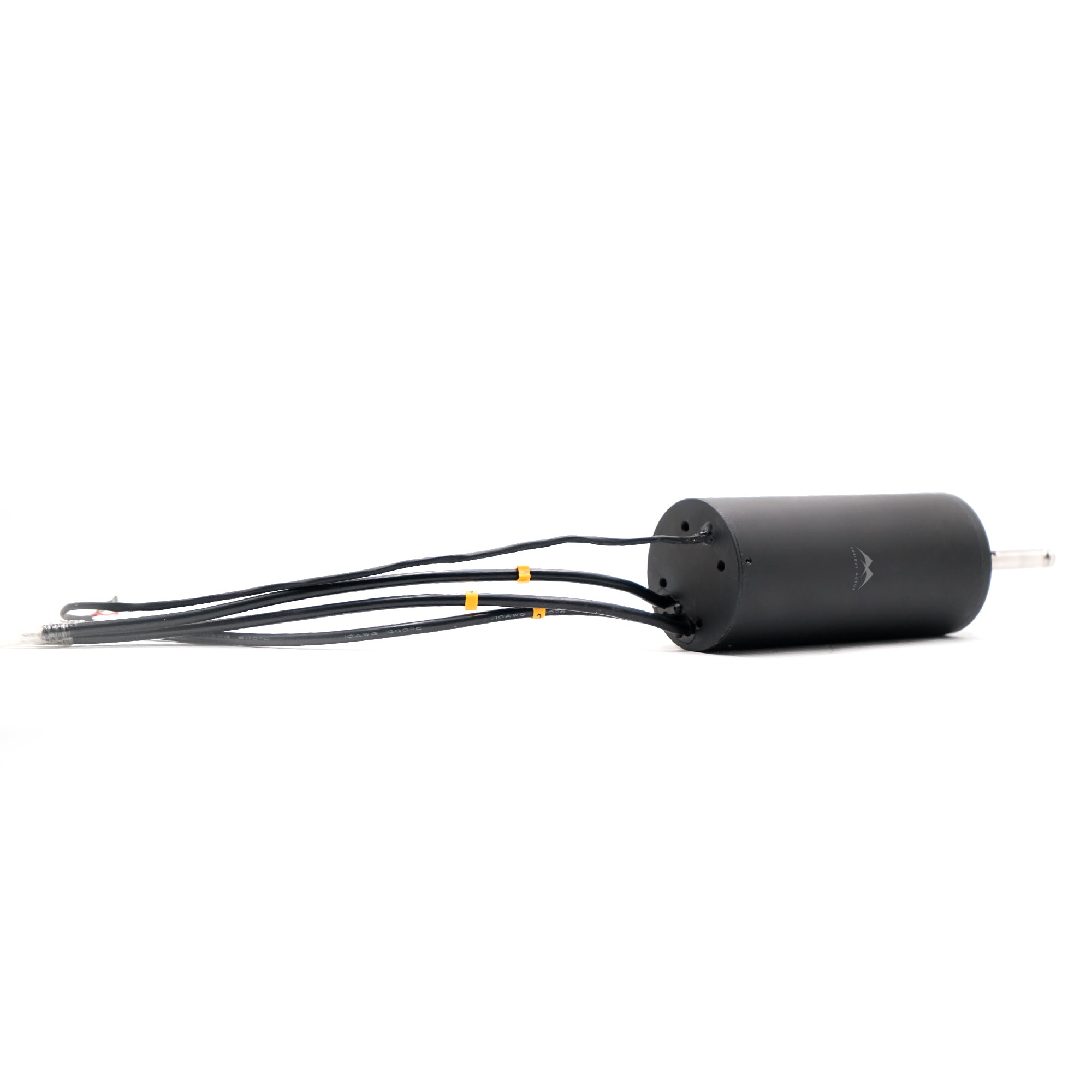

66160 46KG Thrust Underwater Motor for Jet Boat Electric Boat and Efoil and Underwater Thruster
The 66160 brushless DC motor is a high-performance motor that offers high RPM and powerful 46kg thrust, making it ideal for use in electric surfboards, hydrofoils, electric jetboards, electric boats, and underwater scooters. With an IP68 ingress protection, this motor is highly resistant to dust and water, ensuring reliable operation even in challenging environments.
46 KG
Max. Thrust
7 Nm
Max. Torque
100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
World-renowned bearing, ensuring trouble-free service over 1800 hours.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Electric Surfboard
Underwater Scooter
Jet Boat
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
66mm x 160mm
160 / customized
46KG
7N·m
9120
14S 180A
PD-1
120A
57V
6KW
12S-14S
Optional
2.3KG
