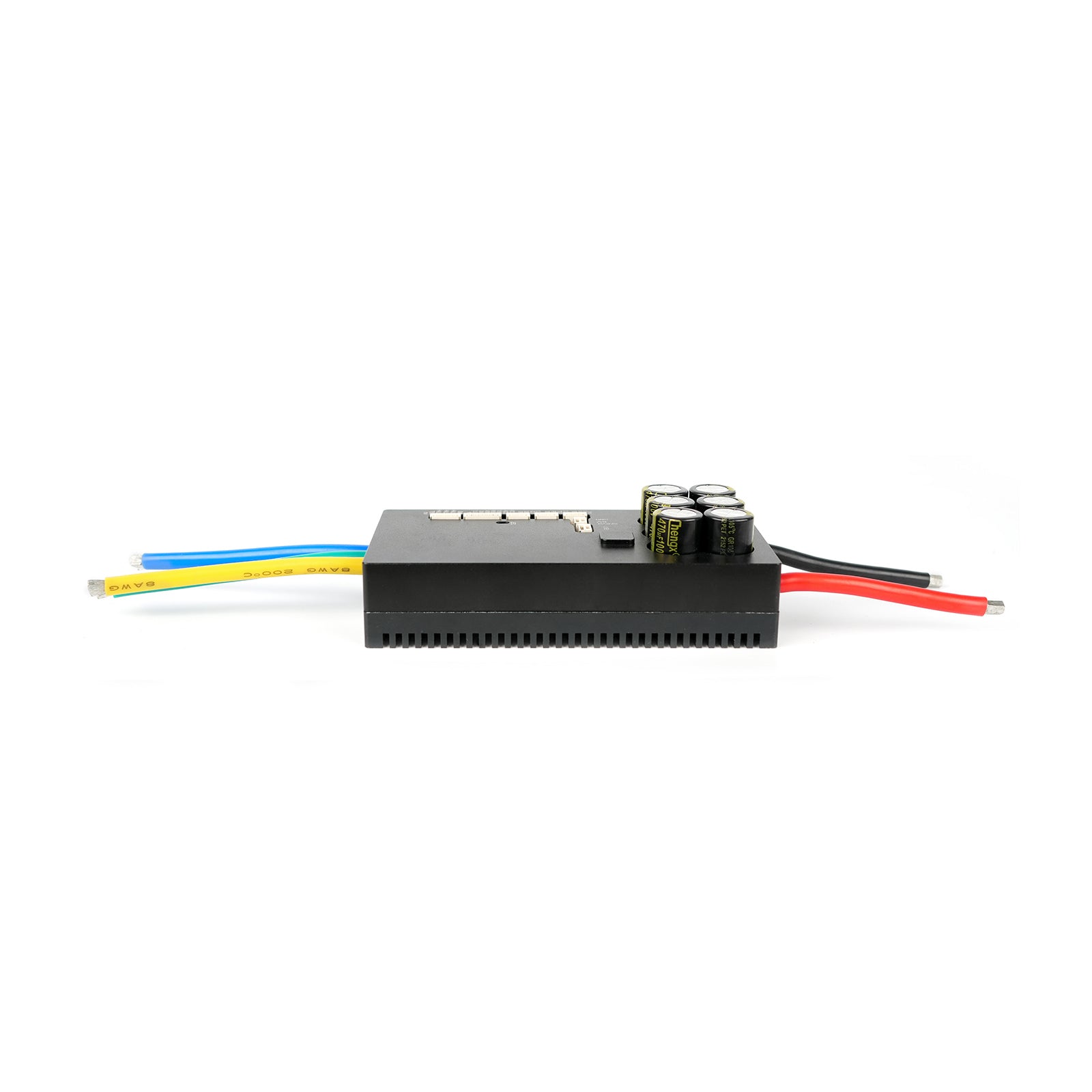

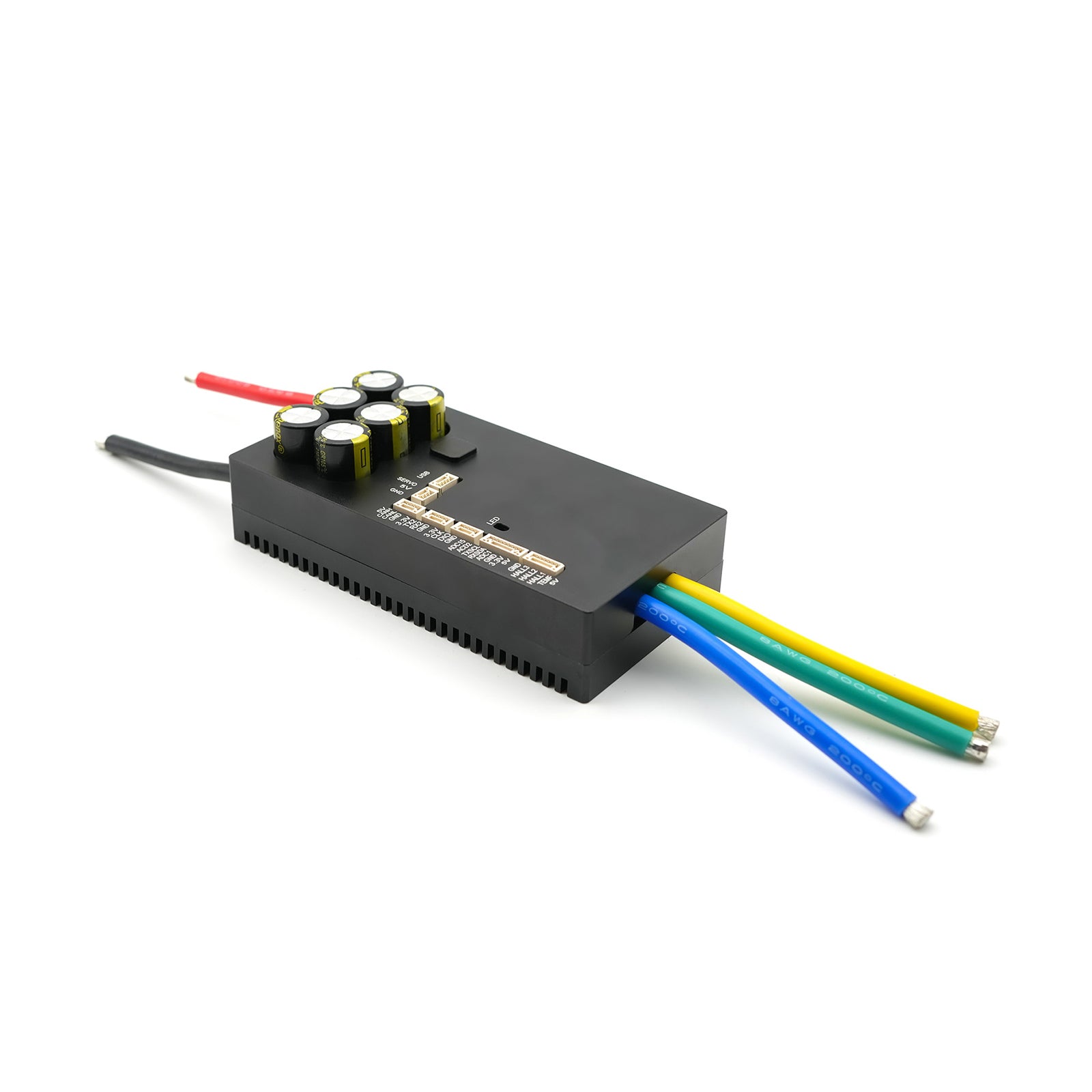

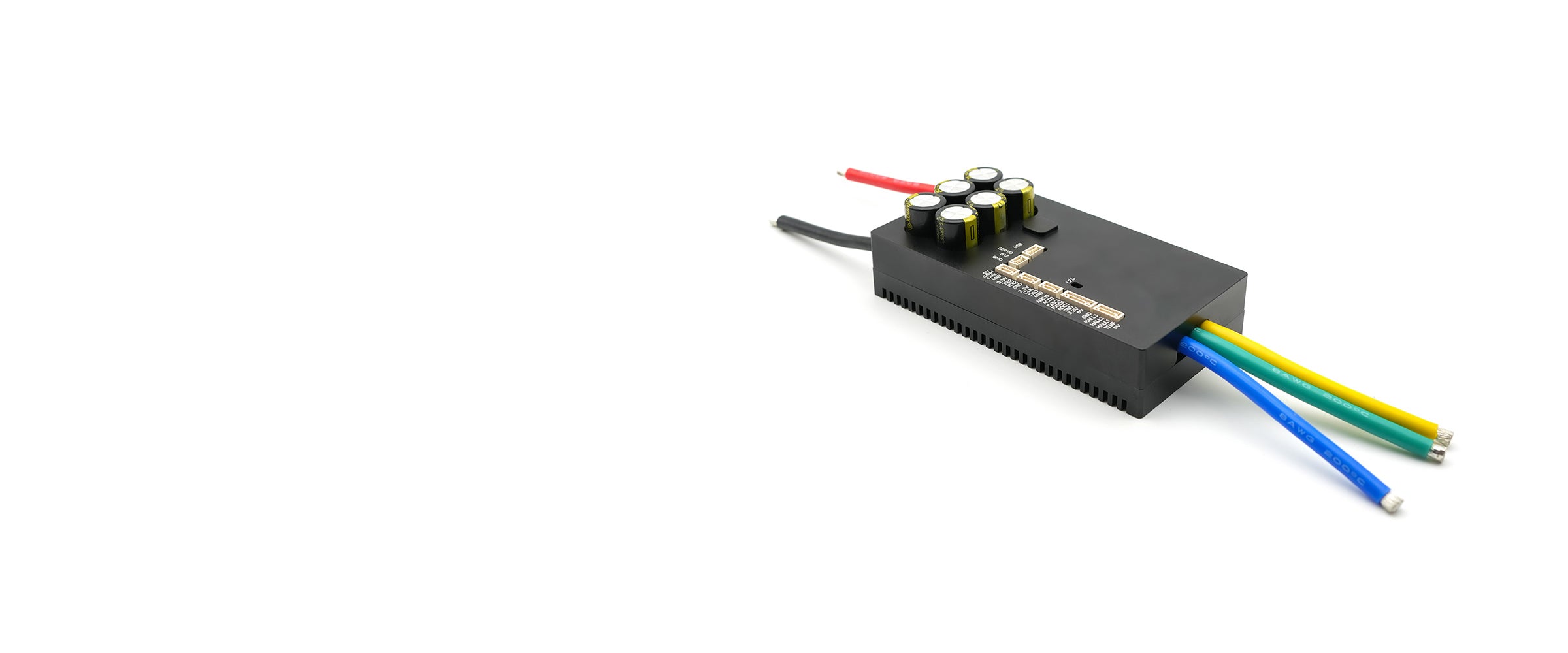

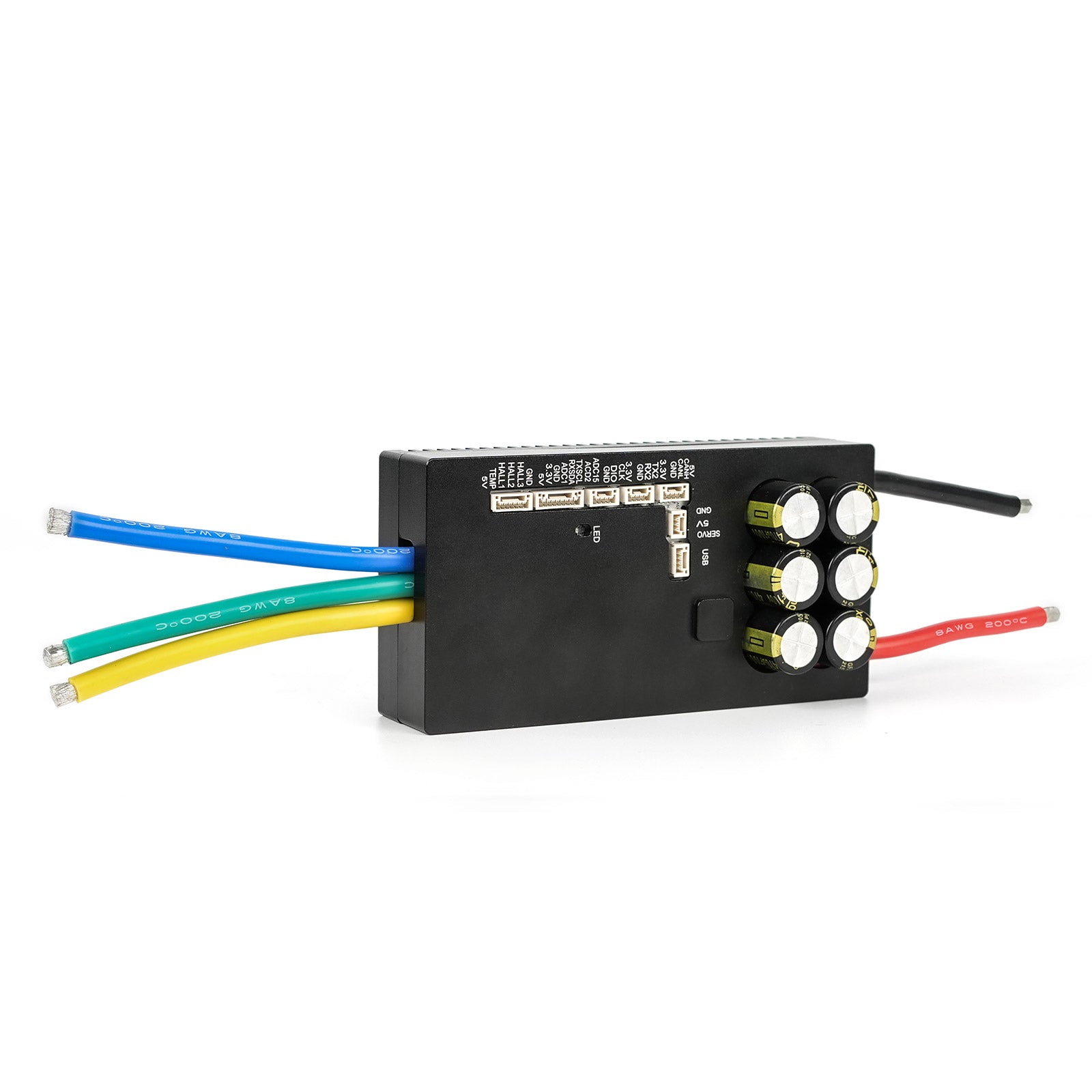

75V 200A Programmable VESC Motor Controller With Regenerative Braking for Electric Skateboard and Drone
%20and%20delivering%20a%20conti...
){kind=link}
Designed for high-power electric vehicles, 75V 200A ESC supports 14–84V and delivers continuous 200A output. Compatible with BLDC, FOC, and DC modes, it offers advanced tuning via VESC_TOOL. With USB, CAN, UART, SPI, and IIC interfaces, plus adjustable protections and an aluminum PCB for better cooling, it’s ideal for drones, e-bikes, and skateboards.
Hign voltage and current
Supports a broad input range of 14–84V (4–20S) with up to 200A continuous current (50V) and 300A burst, making it ideal for high-power electric vehicles and drone propulsion systems.
Flexible motor control
Compatible with DC, BLDC, and FOC (sinusoidal) control, allowing precise operation across various motor types and applications.
Tuning with VESC tool
Easily programmable via VESC_TOOL, enabling users to fine-tune performance with multiple control modes such as current, duty cycle, speed, and PID.
Sensor & input compatibility
Supports sensorless and sensored operation with ABI, HALL, AS5047, AS5048A sensors, and integrates with PPM, ADC, NRF, UART inputs for flexible control setups.
Robust protection
Built-in protection for voltage, current, and temperature, paired with an aluminum PCB for excellent heat dissipation and extended lifespan.
Smart communication
Equipped with USB, CAN, UART, SPI, and IIC ports, this ESC supports additional features like IMU balancing (e.g., MPU9250, BMI160), Bluetooth modules, and remote displays.
Tech Specs
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a ESC that work the best for you.
130mm x 67.7mm x 40.1mm
5V 1A
DC, BLDC, FOC
USB, CAN, UART, SPI, IIC
ABI, HALL, AS5047, AS5048A
PPM, ADC, NRF, UART
VESC TOOL
14V ~ 84V
50V / 200A, 75V / 150A
300A
Yes
Yes
Yes
Yes
Yes
150000
Yes
8 AWG
5.2
450g
