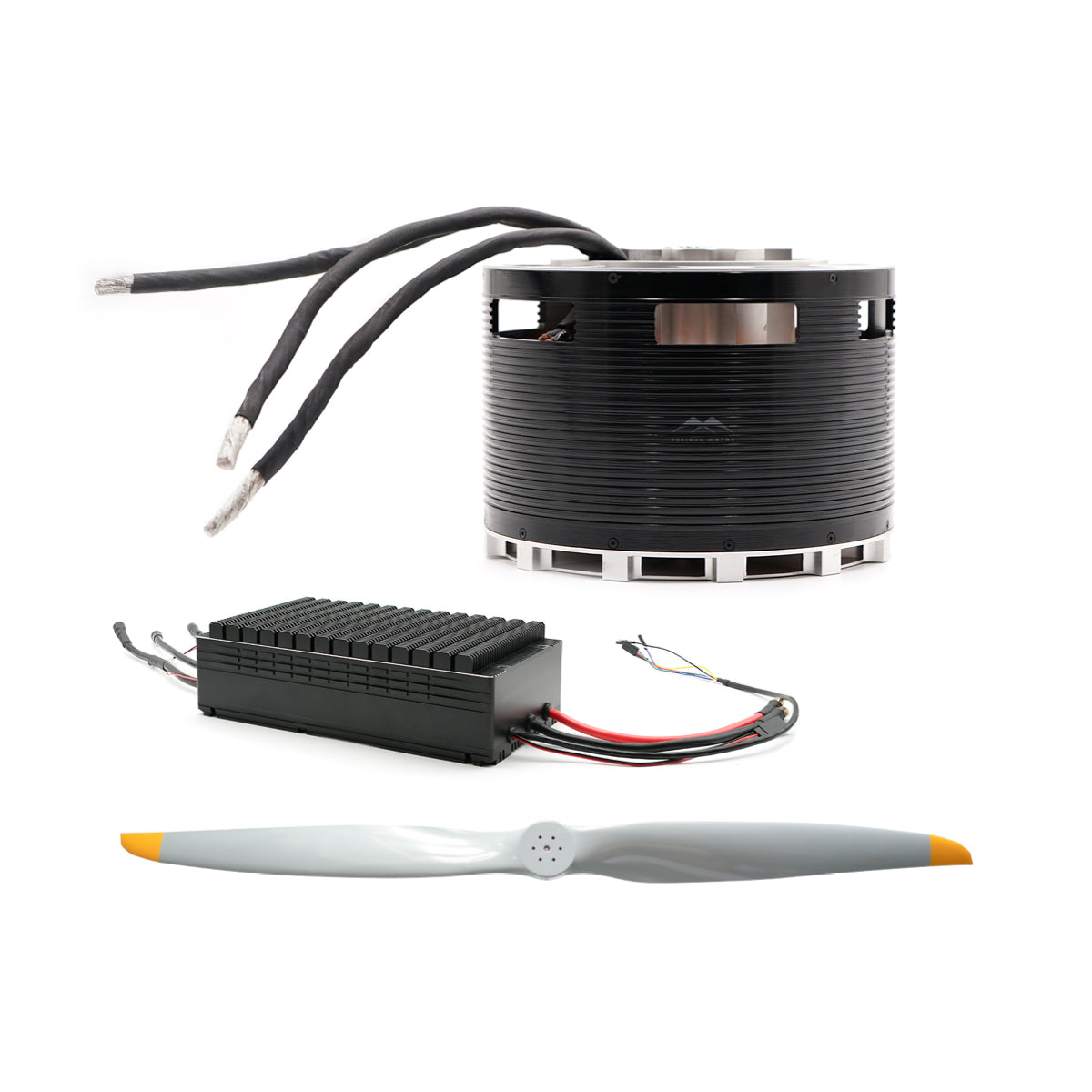

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller and 78 Inch Propeller
220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller and 78 Inch Propeller
220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller and 78 Inch Propeller
220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller and 78 Inch Propeller
220KG

220KG Drone Propulsion System 240150 BLDC Motor 400V 160A Motor Controller and 78 Inch Propeller

Sale price$7,356.00
KV: 8
Propeller: CW

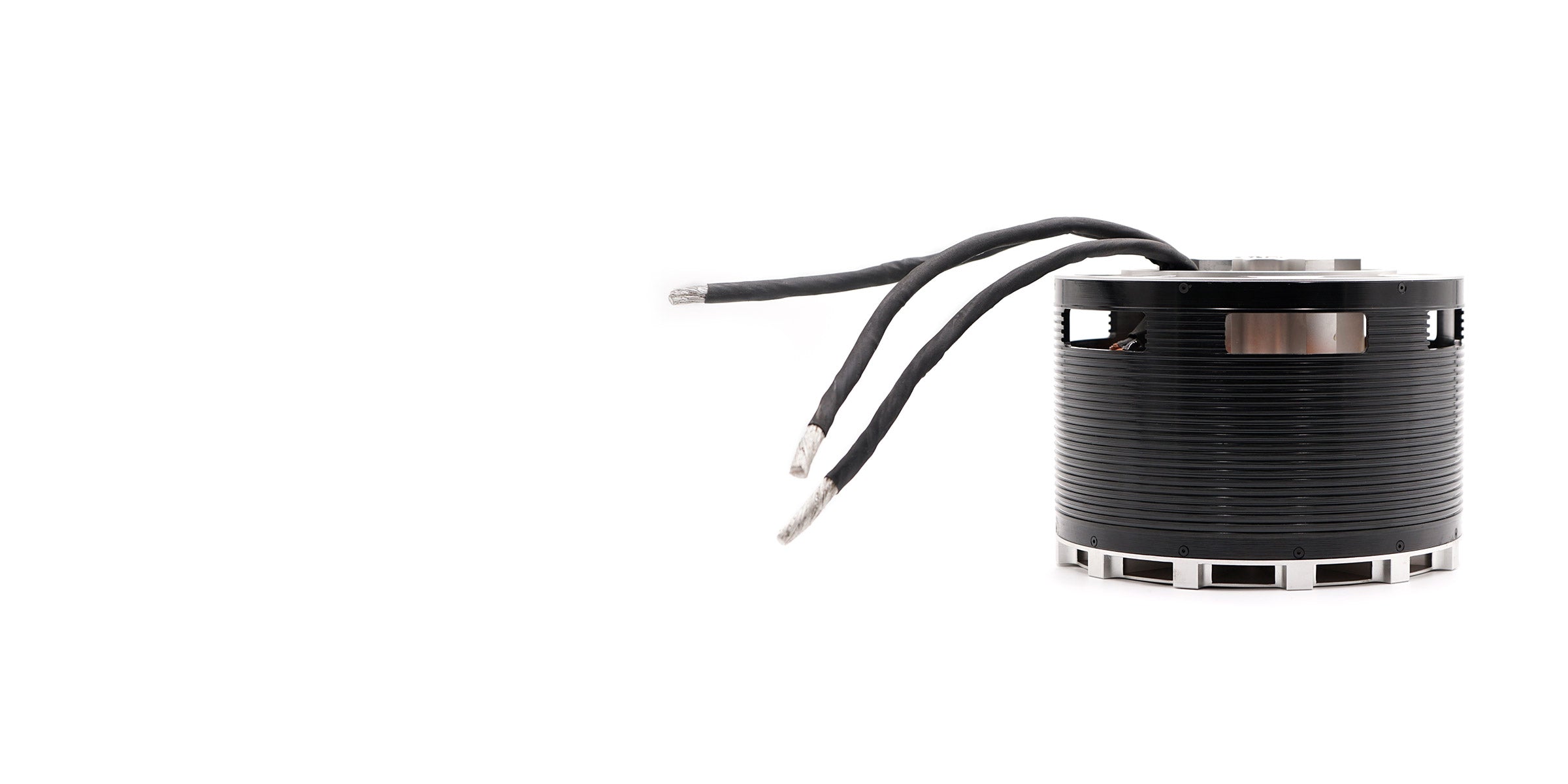

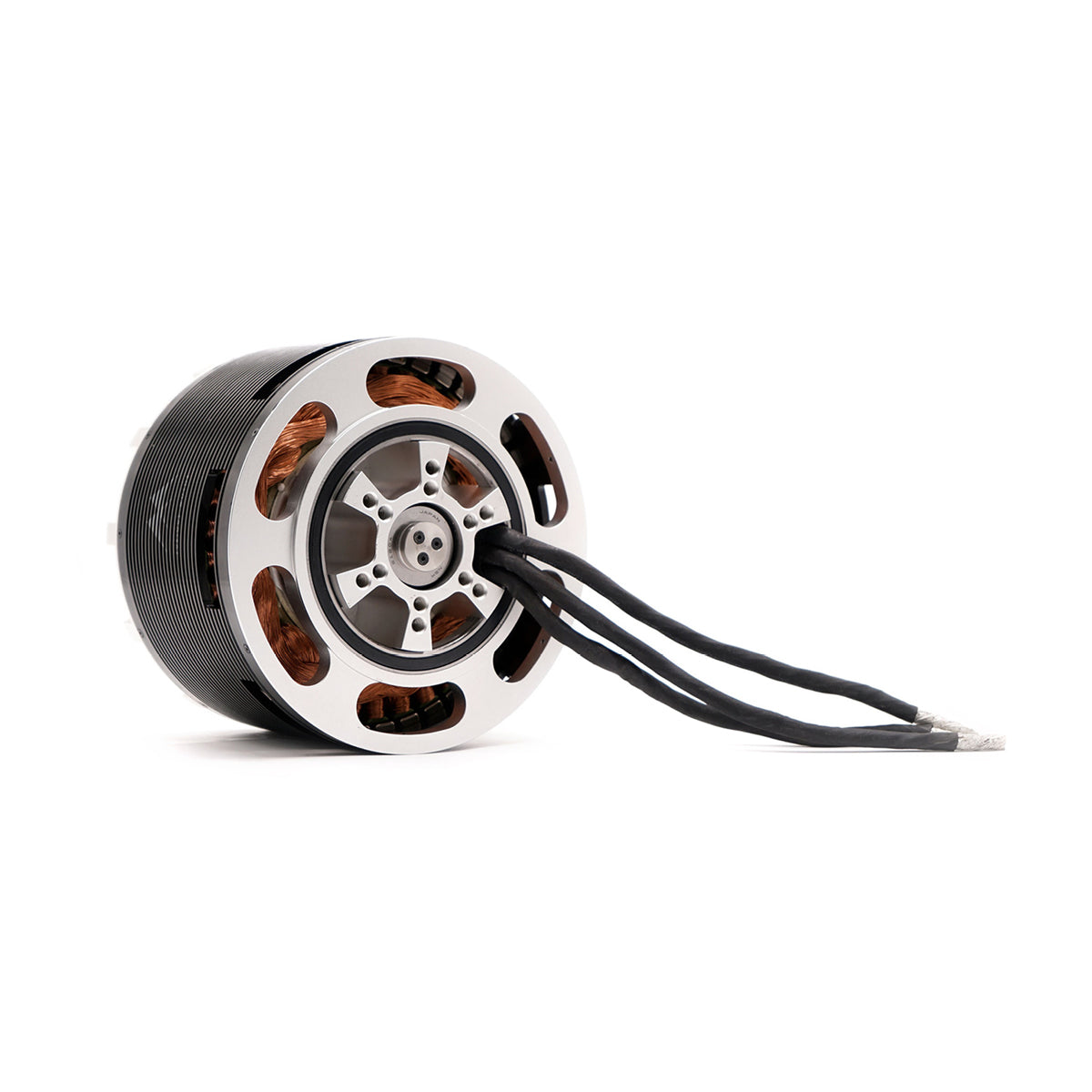

Zero-G 240150 is the most powerful BLDC motor we ever designed for heavy lift drone. It is engineered to work seamlessly with the X-78 propeller and Maven 400V 160A ESC, with maximum thrust up to 220KG.

220KG

Max. Thrust

234N·m

Max. Torque

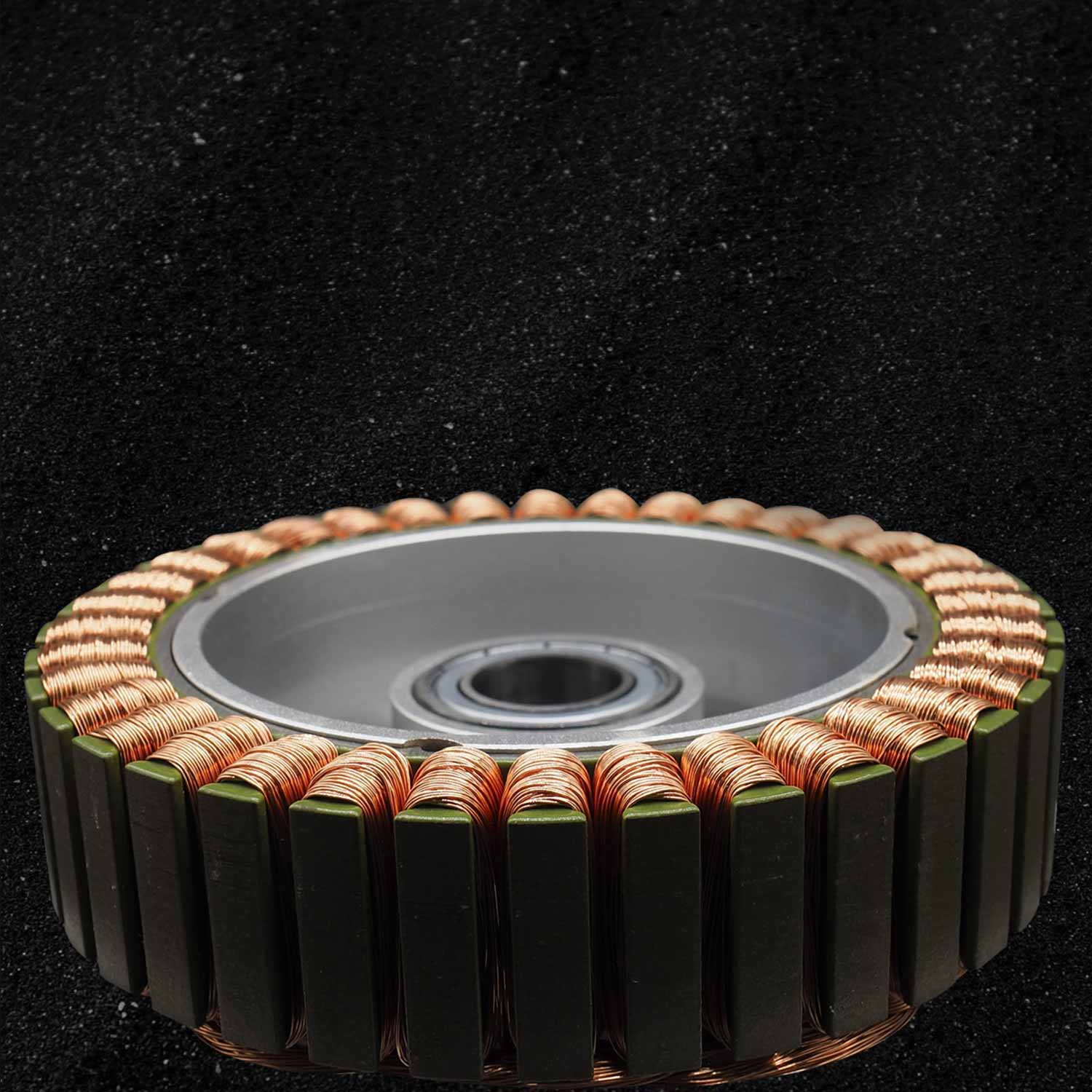

100% hand-winding wire with special coating layer, featuring aging resistant and fireproof.

World-renowned bearing, ensuring trouble-free service over 1800 hours.

Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.

0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.

Heavy Lift Drone

Propulsion System

View all
220KG
240150 220KG Thrust Powerful Electric Big Motor for Big Drone Multi Rotor Heavy Lift Drone240150 220KG Thrust Powerful Electric Big Motor for Big Drone Multi Rotor Heavy Lift Drone
240150 220KG Thrust Powerful Electric Big Motor for Big Drone Multi Rotor Heavy Lift Drone Sale price$3,599.00
400V 160A High Voltage Generative Breaking ESC for Heavy Lift Multi Rotor Drone BLDC Motor400V 160A High Voltage Generative Breaking ESC for Heavy Lift Multi Rotor Drone BLDC Motor
400V 160A High Voltage Generative Breaking ESC for Heavy Lift Multi Rotor Drone BLDC Motor Sale price$2,898.00
78 Inch 2-Blade Large Carbon Fiber Propeller for BLDC Motor with Powerful Thrust78 Inch 2-Blade Large Carbon Fiber Propeller for BLDC Motor with Powerful Thrust
78 Inch 2-Blade Large Carbon Fiber Propeller for BLDC Motor with Powerful Thrust Sale price$859.00

Tech Specs

Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.

Dimension

240mm x 150mm

KV

10 / customized

Max. Thrust

220KG

Max. Torque

234N·m

Max. RPM

2335

Suggested ESC

Maven 400V 160A

Suggested Propeller

X-78

Max. Current

153A

Max. Voltage

447V

Max.Power

69KW

Li-Po

58S-70S

Hall Sensor

Optional

Weight

16KG
